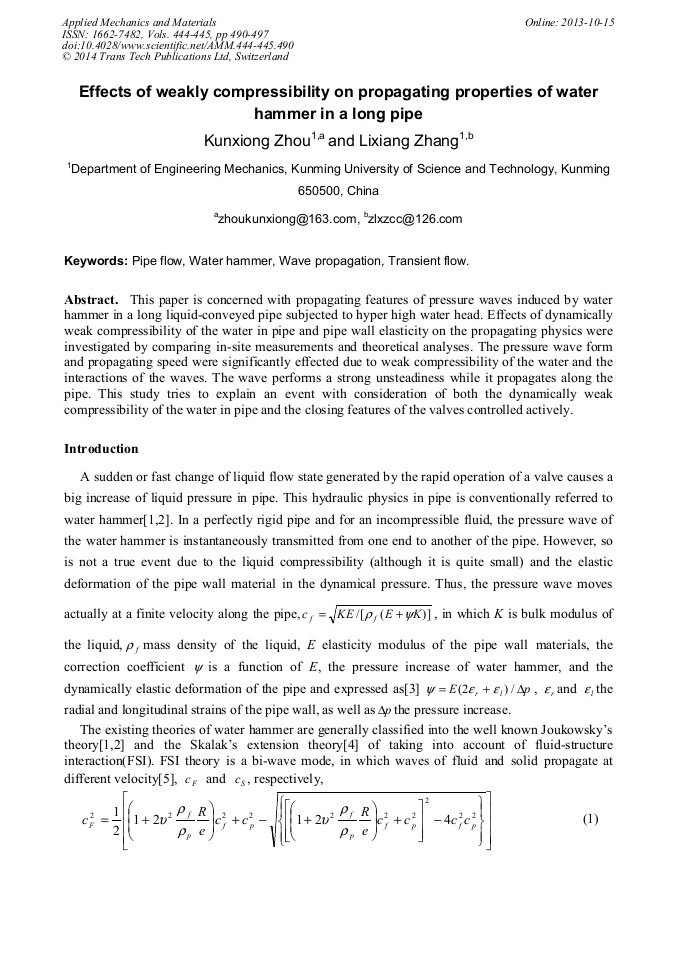

Effects of Weakly Compressibility on Propagating Properties of Water Hammer in a Long Pipe

Abstract:

This paper is concerned with propagating features of pressure waves induced by water hammer in a long liquid-conveyed pipe subjected to hyper high water head. Effects of dynamically weak compressibility of the water in pipe and pipe wall elasticity on the propagating physics were investigated by comparing in-site measurements and theoretical analyses. The pressure wave form and propagating speed were significantly effected due to weak compressibility of the water and the interactions of the waves. The wave performs a strong unsteadiness while it propagates along the pipe. This study tries to explain an event with consideration of both the dynamically weak compressibility of the water in pipe and the closing features of the valves controlled actively.

• Periodical: Applied Mechanics and Materials (Volumes 444-445)
• Pages: 490-497
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.444-445.490
• Online since: October 2013
• Authors: Kun Xiong Zhou, Li Xiang Zhang
• Keywords: Pipe Flow, Transient Flow, Water Hammer, Wave Propagation

References

[1] E. B Wylie, V. L Streeter. Fluid transients in systems. Englewood Cliffs. New Jersey. (1993).

[2] E.O. Doebelin. System modeling and response: theoretical and experimental approaches. John Wiley & Sons, New York, (1980).

[3] A.R. Halliwell Velocity of water hammer wave in an elastic pipe. ASCE Journal of the Hydraulics Division. 89(1963) 1-21.

DOI: 10.1061/jyceaj.0000897

[4] R. Skalak An extension of the theory of water hammer. Transaction of the ASME. 78(1956) 105-116.

[5] L.X. Zhang, A.S. Tijsseling, A.E. Vardy. FSI analysis of liquid-filled pipes. Journal of Sound and Vibration. 224(1999) 69-99.

DOI: 10.1006/jsvi.1999.2158

[61] A.G.T.J. Heinsbroek, A.S. Tijsseling, The influence of support rigidity on water hammer pressures and pipe stresses, The 2nd International Conference on Water Pipeline Systems, BHR Group Series Publication, In: D.S. Miller (Ed. ), Mechanical Engineering Publications Limited, London, (1994).

[7] D.C. Wiggert, A.S. Tijsseling. Fluid transients and fluid-structure interaction in flexible liquid-filled piping. ASME Appl. Mech. Rev. 54(2001) 455-481.

DOI: 10.1115/1.1404122

[8] A.S. Tijsseling. Fluid-structure interaction in liquid-filled pipe systems: a review. Journal of Fluids and Structures. 10(1996) 109-146.

DOI: 10.1006/jfls.1996.0009

[9] D.J. Leslie, A.S. Tijsseling, Traveling discontinuities in water hammer theory－attenuation due to friction, BHR Group 2000 Pressure Surges, 323-335.
