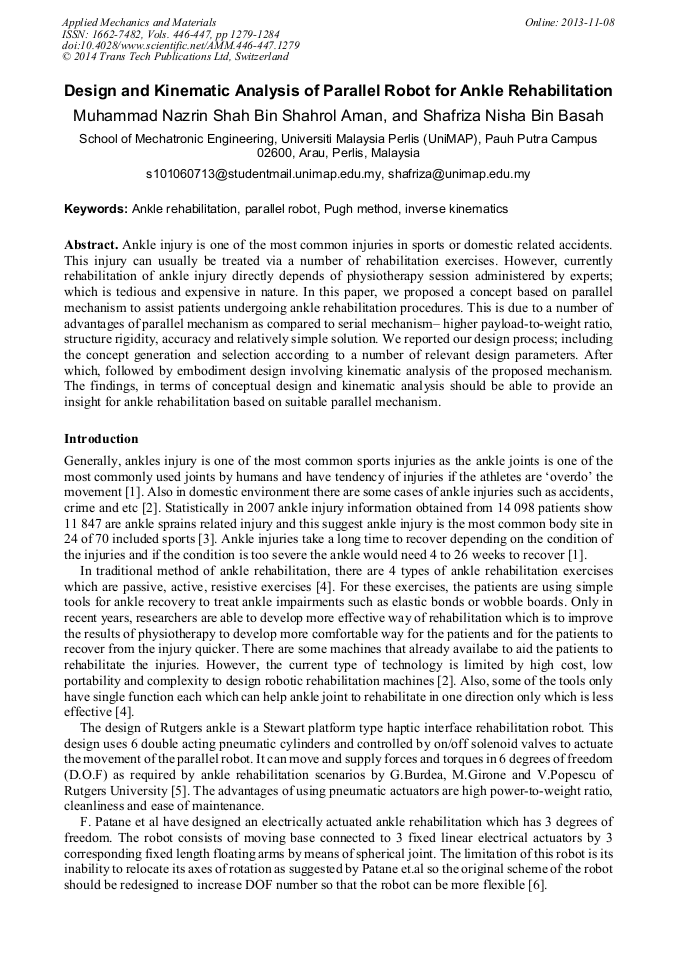

Design and Kinematic Analysis of Parallel Robot for Ankle Rehabilitation

Abstract:

Ankle injury is one of the most common injuries in sports or domestic related accidents. This injury can usually be treated via a number of rehabilitation exercises. However, currently rehabilitation of ankle injury directly depends of physiotherapy session administered by experts; which is tedious and expensive in nature. In this paper, we proposed a concept based on parallel mechanism to assist patients undergoing ankle rehabilitation procedures. This is due to a number of advantages of parallel mechanism as compared to serial mechanism higher payload-to-weight ratio, structure rigidity, accuracy and relatively simple solution. We reported our design process; including the concept generation and selection according to a number of relevant design parameters. After which, followed by embodiment design involving kinematic analysis of the proposed mechanism. The findings, in terms of conceptual design and kinematic analysis should be able to provide an insight for ankle rehabilitation based on suitable parallel mechanism.

• Periodical: Applied Mechanics and Materials (Volumes 446-447)
• Pages: 1279-1284
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.446-447.1279
• Online since: November 2013
• Authors: Muhammad Nazrin Shah Bin Shahrol Aman, Shafriza Nisha Bin Basah
• Keywords: Ankle Rehabilitation, Inverse Kinematics, Parallel Robot, Pugh Method

References

[1] N. McNally. The Trainer's Room: Sprained Ankle Treatment, Rehab, and Recovery Time,. Internet: http: /www. midwestsportsfans. com/2009/04/sprained-ankle-treatment-rehab-recovery-time-ankle-sprain-grade-ligaments-chronic-ankle-sprains-denver/. Apr. 22, 2009 [20 September 2012].

DOI: 10.5580/126f

[2] J.A. Saglia, Development of a high performance ankle rehabilitation robot. 2010. King's College London. University of London.

[3] D.T.P. Fong, Y. Hong, L.K. Chan, P.S.H. Yung and K.M. Chan: A systematic review on ankle injury and ankle sprain in sports. Sports Medicine 2007, 37(1): 73-94.

DOI: 10.2165/00007256-200737010-00006

[4] G. Liu, J. Gao, H. Yue, X. Zhang and G. Lu, Design and kinematics Analysis of Parallel Robots for Ankle Rehabilitation, Proceedings of International Conference on Intelligent Robots and Systems, Beijing, China, pp.253-258, (2006).

DOI: 10.1109/iros.2006.281710

[5] M. Girone, G. Burdea, M. Bouzit and V. Popescu. Orthopedic rehabilitation using the Rutgers ankle, interface. CAIP Center, Rutgers University, Piscataway, NJ , USA. (2000).

DOI: 10.1115/imece1999-0040

[6] F. Patane and P. Cappa, A 3-DOF Parallel Robot With Spherical Motion for the Rehabilitation and Evaluation of Balance Performance, IEEE transactions on neural systems and rehabilitation engineering, Vol. 19, No. 2, April (2011).

DOI: 10.1109/tnsre.2010.2089535

[7] E. Dombre and W. Khalil. Robot Manipulators: Modelling, performance analysis and control of robot manipulator. ISTE London. (2007).
