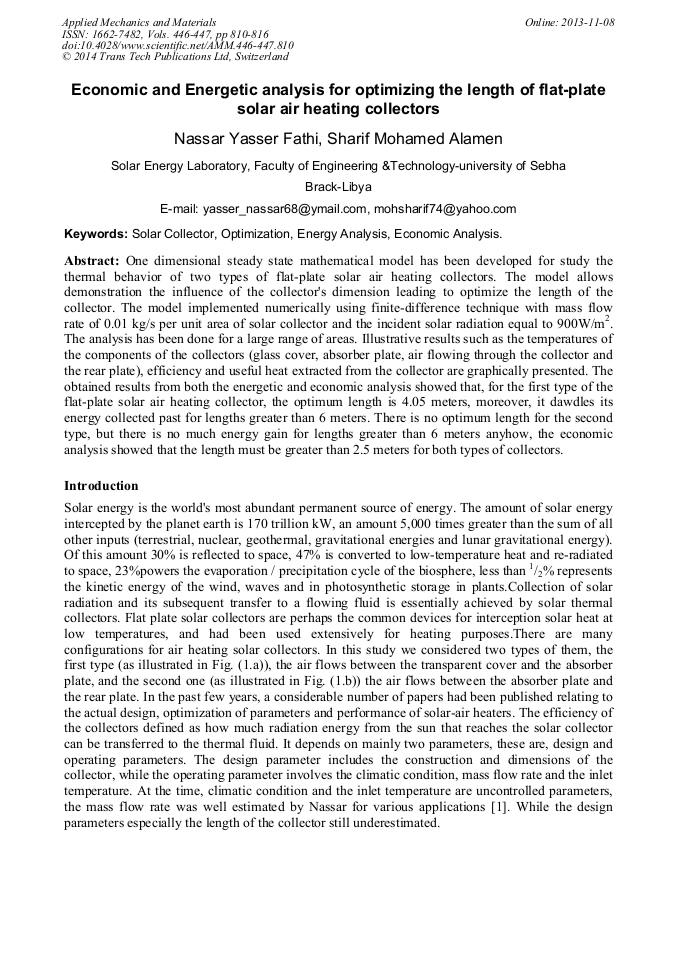

Economic and Energetic Analysis for Optimizing the Length of Flat-Plate Solar Air Heating Collectors

Abstract:

One dimensional steady state mathematical model has been developed for study the thermal behavior of two types of flat-plate solar air heating collectors. The model allows demonstration the influence of the collector's dimension leading to optimize the length of the collector. The model implemented numerically using finite-difference technique with mass flow rate of 0.01 kg/s per unit area of solar collector and the incident solar radiation equal to 900W/m². The analysis has been done for a large range of areas. Illustrative results such as the temperatures of the components of the collectors (glass cover, absorber plate, air flowing through the collector and the rear plate), efficiency and useful heat extracted from the collector are graphically presented. The obtained results from both the energetic and economic analysis showed that, for the first type of the flat-plate solar air heating collector, the optimum length is 4.05 meters, moreover, it dawdles its energy collected past for lengths greater than 6 meters. There is no optimum length for the second type, but there is no much energy gain for lengths greater than 6 meters anyhow, the economic analysis showed that the length must be greater than 2.5 meters for both types of collectors.

• Periodical: Applied Mechanics and Materials (Volumes 446-447)
• Pages: 810-816
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.446-447.810
• Online since: November 2013
• Authors: Nassar Yasser Fathi, Sharif Mohamed Alamen
• Keywords: Economic Analysis, Energy Analysis, Optimization, Solar Collector

References

[1] Nassar, Y. F. and Salem, A. A., An optimization procedure of the working fluid mass flow rate through a flat-plate solar collector in domestic solar heating systems, Symposium on renewable energies in hot climate regions, Hoon-Libya, 30-31 October (2002).

[2] Rhee S. J. and Edwards D. K., Laminar entrance flow in a flat plate duct with a symmetric section, Numerical heat transfer, 4, pp.85-100, (1981).

DOI: 10.1080/01495728108961780

[3] Hottel H. C. and Whillier A., Evaluation of flat-plate solar collector performance, Trans. Of the ASME, 86, pp.74-79, (1955).

[4] Nasser, Y. F. and Sergievsky, E. D., Heat transfer in flat plate solar air-heating collectors, Heat transfer 2000, the sixth international conference on advanced computational methods in heat transfer, Madrid, Spain, pp.575-584, 26-28 june (2000).

[5] Duffie, J. A. and Beckman, W. A., Solar engineering of thermal process, John Wiley &Sunsinc., 2nd edition, (1991).

[6] Kreith, F. and Kreider, J. F., Principles of solar engineering, Hemisphere publishing Corporation, USA, (1978).

[7] Hsie, S. J., Solar energy engineering Prentic-Hall, (1981).

[8] Diban E. P. and Epik, A. I., Heat transfer in channel with different temperatures of the upper and lower surfaces, heat transfer conference, Moscow, pp.64-76, (1980).

[9] Zvirin, Y. and Aronov, B., Heat transfer in solar collector, heat transfer, proceeding of the eleventh international heat transfer conference, Korea, pp.325-339, (1998).

DOI: 10.1615/ihtc11.2790

[10] Nasser, Y. F., Solar energy engineering, 1nd edition, (Arabic version), (2006).
