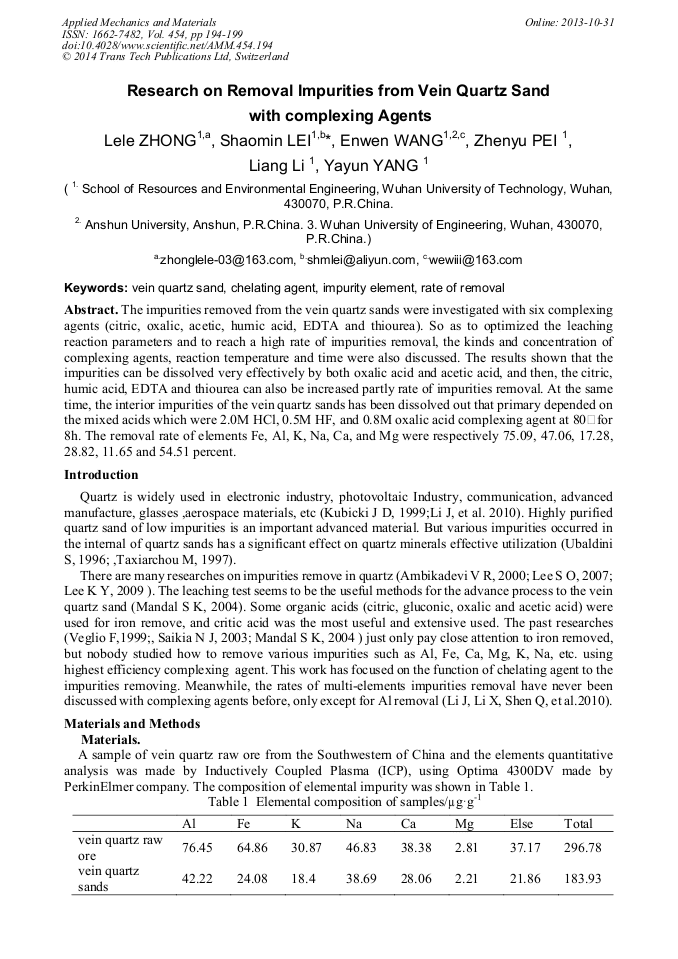

Research on Removal Impurities from Vein Quartz Sand with Complexing Agents

Abstract:

The impurities removed from the vein quartz sands were investigated with six complexing agents (citric, oxalic, acetic, humic acid, EDTA and thiourea). So as to optimized the leaching reaction parameters and to reach a high rate of impurities removal, the kinds and concentration of complexing agents, reaction temperature and time were also discussed. The results shown that the impurities can be dissolved very effectively by both oxalic acid and acetic acid, and then, the citric, humic acid, EDTA and thiourea can also be increased partly rate of impurities removal. At the same time, the interior impurities of the vein quartz sands has been dissolved out that primary depended on the mixed acids which were 2.0M HCl, 0.5M HF, and 0.8M oxalic acid complexing agent at 80°Cfor 8h. The removal rate of elements Fe, Al, K, Na, Ca, and Mg were respectively 93.31, 47.06, 17.28, 28.82, 12.58 and 62.44 percent.

• Periodical: Applied Mechanics and Materials (Volume 454)
• Pages: 194-199
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.454.194
• Online since: October 2013
• Authors: Le Le Zhong, Shao Min Lei, En Wen Wang, Zhen Yu Pei, Liang Li, Ya Yun Yang
• Keywords: Chelating Agent, Impurity Element, Rate of Removal, Vein Quartz Sand

References

[1] Ambikadevi V R, Lalithambika M. Effect of organic acids on ferric iron removal from iron-stained kaolinite[J]. Applied Clay Science, 2000, 16(3): 133-145.

DOI: 10.1016/s0169-1317(99)00038-1

[2] Blake R E, Walter L M. Kinetics of feldspar and quartz dissolution at 70–80 C and near-neutral pH: effects of organic acids and NaCl[J]. Geochimica et Cosmochimica Acta, 1999, 63(13): 2043-(2059).

DOI: 10.1016/s0016-7037(99)00072-1

[3] Khalifa M, Hajji M, Ezzaouia H. Impurity removal process for high-purity silica production by acid leaching[C]/EPJ Web of Conferences. EDP Sciences, 2012, 29: 00014.

DOI: 10.1051/epjconf/20122900014

[4] Kubicki J D, Schroeter L M, Itoh M J, et al. Attenuated total reflectance Fourier-transform infrared spectroscopy of carboxylic acids adsorbed onto mineral surfaces[J]. Geochimica et Cosmochimica Acta, 1999, 63(18): 2709-2725.

DOI: 10.1016/s0016-7037(99)00194-5

[5] Lee K Y, Yoon Y Y, Jeong S B, et al. Acid leaching purification and neutron activation analysis of high purity silicas[J]. Journal of radioanalytical and nuclear chemistry, 2009, 282(2): 629-633.

DOI: 10.1007/s10967-009-0318-x

[6] Lee S O, Tran T, Jung B H, et al. Dissolution of iron oxide using oxalic acid[J]. Hydrometallurgy, 2007, 87(3): 91-99.

DOI: 10.1016/j.hydromet.2007.02.005

[7] Lee S O, Tran T, Park Y Y, et al. Study on the kinetics of iron oxide leaching by oxalic acid[J]. International Journal of Mineral Processing, 2006, 80(2): 144-152.

DOI: 10.1016/j.minpro.2006.03.012

[8] Li J, Li X, Shen Q, et al. Further purification of industrial quartz by much milder conditions and a harmless method [J]. Environmental science & technology, 2010, 44(19): 7673-7677.

DOI: 10.1021/es101104c

[9] Mandal S K, Banerjee P C. Iron leaching from China clay with oxalic acid: effect of different physico-chemical parameters[J]. International Journal of Mineral Processing, 2004, 74(1): 263-270.

DOI: 10.1016/j.minpro.2004.01.004

[10] Martínez-Luévanos A, Rodríguez-Delgado M G, Uribe-Salas A, et al. Leaching kinetics of iron from low grade kaolin by oxalic acid solutions[J]. Applied Clay Science, 2011, 51(4): 473-477.

DOI: 10.1016/j.clay.2011.01.011

[11] Mesquita L M S, Rodrigues T, Gomes S S. Bleaching of Brazilian kaolins using organic acids and fermented medium[J]. Minerals Engineering, 1996, 9(9): 965-971.

DOI: 10.1016/0892-6875(96)00087-8

[12] Saikia N J, Bharali D J, Sengupta P, et al. Characterization, beneficiation and utilization of a kaolinite clay from Assam, India[J]. Applied Clay Science, 2003, 24(1): 93-103.

DOI: 10.1016/s0169-1317(03)00151-0

[13] Taxiarchou M, Panias D, Douni I, et al. Removal of iron from silica sand by leaching with oxalic acid[J]. Hydrometallurgy, 1997, 46(1): 215-227.

DOI: 10.1016/s0304-386x(97)00015-7

[14] Taxiarchou M, Panias D, Douni I, et al. Removal of iron from silica sand by leaching with oxalic acid[J]. Hydrometallurgy, 1997, 46(1): 215-227.

DOI: 10.1016/s0304-386x(97)00015-7

[15] Ubaldini S, Piga L, Fornari P, et al. Removal of iron from quartz sands: A study by column leaching using a complete factorial design[J]. Hydrometallurgy, 1996, 40(3): 369-379.

DOI: 10.1016/0304-386x(95)00012-6

[16] Veglio F, Passariello B, Barbaro M, et al. Drum leaching tests in iron removal from quartz using oxalic and sulphuric acids[J]. International journal of mineral processing, 1998, 54(3): 183-200.

DOI: 10.1016/s0301-7516(98)00014-3

[17] Veglio F, Passariello B, Abbruzzese C. Iron removal process for high-purity silica sands production by oxalic acid leaching[J]. Industrial & engineering chemistry research, 1999, 38(11): 4443-4448.

DOI: 10.1021/ie990156b

[18] Zhao H L, Wang D X, Cai Y X, et al. Removal of iron from silica sand by surface cleaning using power ultrasound[J]. Minerals engineering, 2007, 20(8): 816-818.

DOI: 10.1016/j.mineng.2006.10.005
