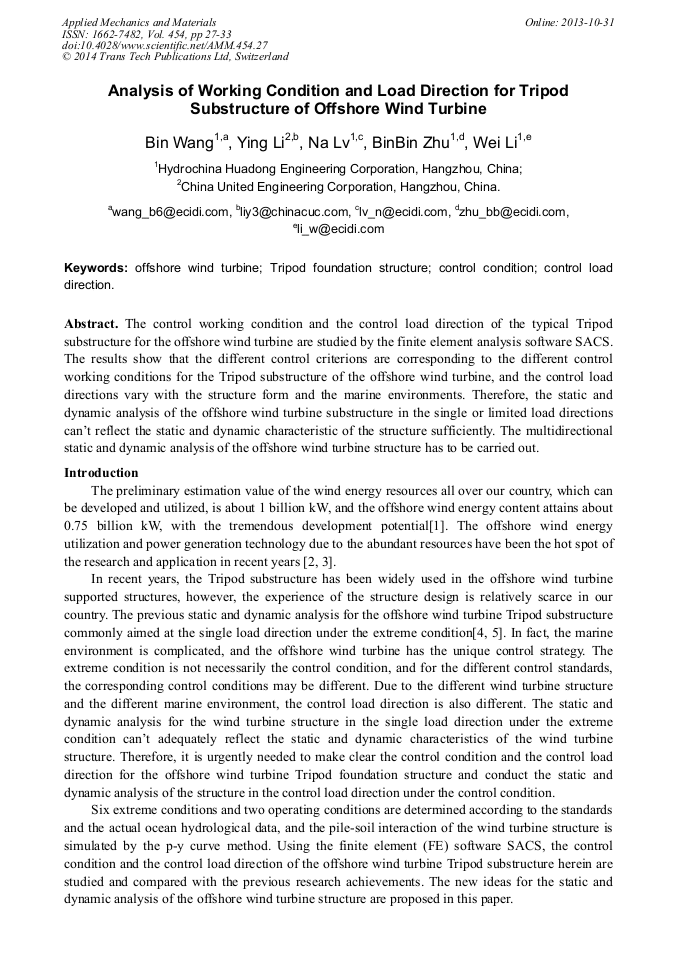

Analysis of Working Condition and Load Direction for Tripod Substructure of Offshore Wind Turbine

Abstract:

The control working condition and the control load direction of the typical Tripod substructure for the offshore wind turbine are studied by the finite element analysis software SACS. The results show that the different control criterions are corresponding to the different control working conditions for the Tripod substructure of the offshore wind turbine, and the control load directions vary with the structure form and the marine environments. Therefore, the static and dynamic analysis of the offshore wind turbine substructure in the single or limited load directions cant reflect the static and dynamic characteristic of the structure sufficiently. The multidirectional static and dynamic analysis of the offshore wind turbine structure has to be carried out.

• Periodical: Applied Mechanics and Materials (Volume 454)
• Pages: 27-33
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.454.27
• Online since: October 2013
• Authors: Bin Wang*, Ying Li, Na Lv, Bin Bin Zhu, Wei Li
• Keywords: Control Condition, Control Load Direction, Offshore Wind Turbine, Tripod Foundation Structure

References

[1] Y. Yang, W.M. Gui: Future Trend of Wind Power in China. International Mechatronics Technology, 05 (2010), pp.41-43.

[2] Y.F. Duan, H.Y. Ran and F.L. Li: Design of Foundation for Offshore Wind Field. Journal of Water Resources and Architectural Engineering. 01 (2010), pp.129-131.

[3] J.J. Liu: Dynamic and Fatigue Analysis of the Whole Truss Support Structure of Offshore Wind Turbine. Ocean University of China, (2010).

[4] P. Wang: Dynamic Coupling Analysis and Optimum Technology on Monopile Tripod Support Structures of Offshore Wind Turbine. Ocean University of China, (2011).

[5] C. Yang: Integrated Design and Research of the Pile Foundation of Offshore Wind Turbine. Harbin Engineering University, (2009).

[6] H.C. Wang, D.Q. Wu and P. Tian: A New United Method of P-Y Curves of Laterally Statically Loaded Files in Clay. Journal of Hohai University, 01 (1991), pp.9-17.

[7] L.W. Hu, J.G. Zhou: Comparative Analysis of Calculating Method for Horizontal Bearing Capacity of Pile. Northern Communications, 04 (2003), pp.19-22.

[8] X.J. Yao, H.X. Sui, Y.M. Liu, et al.: The Development and Current Status of Offshore Wind Power Technology. Shanghai Electric Power, 02 (2007), pp.111-118.

[9] W.Y. Pang: Research and Analysis of Capability of Structure of offshore mind Turbine. Harbin Engineering University, (2010).

[10] DNV-OS-J101. Design of Offshore Wind Turbine Structures. (2013).

[11] API-LRFD. Recommended Practice for Planning, Designing and Constructing Fixed Offshore Platforms - Load and Resistance Factor Design. (1997).
