A Novel Method to Determine EHL Film Thickness with Optical Interference

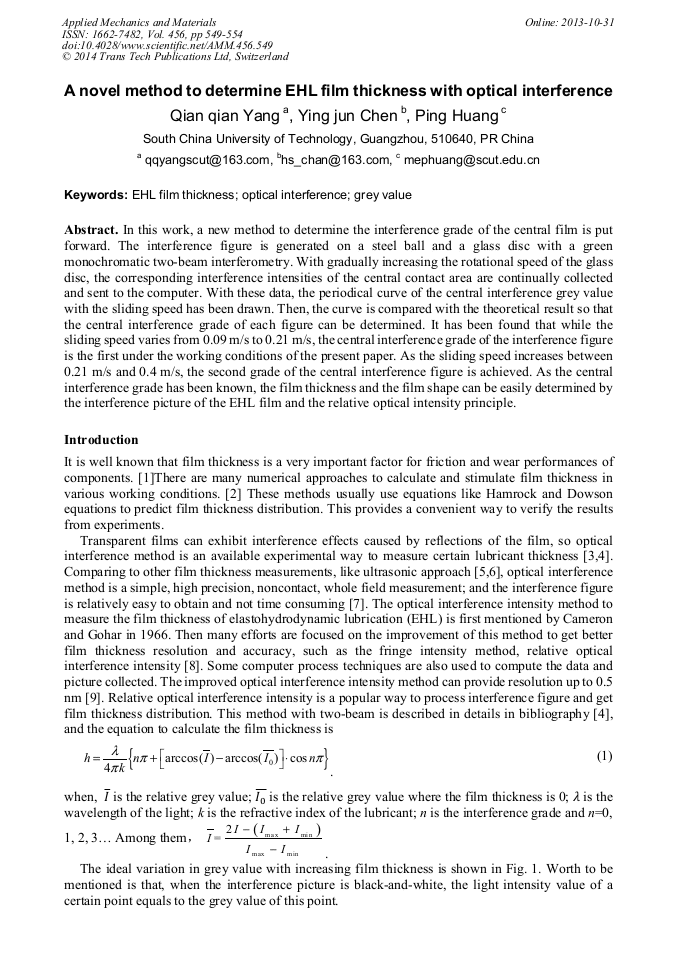

Article Preview

Abstract:

In this work, a new method to determine the interference grade of the central film is put forward. The interference figure is generated on a steel ball and a glass disc with a green monochromatic two-beam interferometry. With gradually increasing the rotational speed of the glass disc, the corresponding interference intensities of the central contact area are continually collected and sent to the computer. With these data, the periodical curve of the central interference grey value with the sliding speed has been drawn. Then, the curve is compared with the theoretical result so that the central interference grade of each figure can be determined. It has been found that while the sliding speed varies from 0.09 m/s to 0.21 m/s, the central interference grade of the interference figure is the first under the working conditions of the present paper. As the sliding speed increases between 0.21 m/s and 0.4 m/s, the second grade of the central interference figure is achieved. As the central interference grade has been known, the film thickness and the film shape can be easily determined by the interference picture of the EHL film and the relative optical intensity principle.

You might also be interested in these eBooks
Research in Mechanical Engineering and Material Science View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 456)

Pages:

549-554

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.456.549

Citation:

Cite this paper

Online since:

October 2013

Authors:

Qian Qian Yang, Ying Jun Chen, Huang Ping

Keywords:

EHL Film Thickness, Grey Value, Optical Interference

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] S.Z. Wen, P. Huang: Principles of Tribology (Weley and Tsinghua Univ. Press, Singapore 2011).

Google Scholar

[2] P. Huang. Lubrication Numerical Calculation Methods (in Chinese) (Higher Education Press, China 2012).

Google Scholar

[3] R. Nitsche and T. Fritz: Opt. Lett. 29( 2004), p.938.

Google Scholar

[4] L.R. Ma, C.H. Zhang: Tribol. Lett. 36(2009), p.239.

Google Scholar

[5] T. Reddyhoff, R. Dwyer-Joyce and P. Harper: Sealing Tech. 7(2006), p.7.

Google Scholar

[6] J. Pei, F.L. Degerteken, B.V. Honein, B.T. Khuri-Yakub, and K.C. Saraswat: Ultrason. 2(1994), p.1237.

Google Scholar

[7] C. Myant, M. Fowell, H.A. Spikes, and J. R. Stokes: Tribol. Trans. 53(2010), p.684.

Google Scholar

[8] J.B. Luo, S.Z. Wen, and P. Huang: Wear. 194(1996), p.107.

Google Scholar

[9] Y.X. Yang, Z.L. Dai, L. Wang, K.L. Xiong: 5th International Symposium on Advanced Optical Manufacturing and Testing Technologies, 2010, Dalian.
