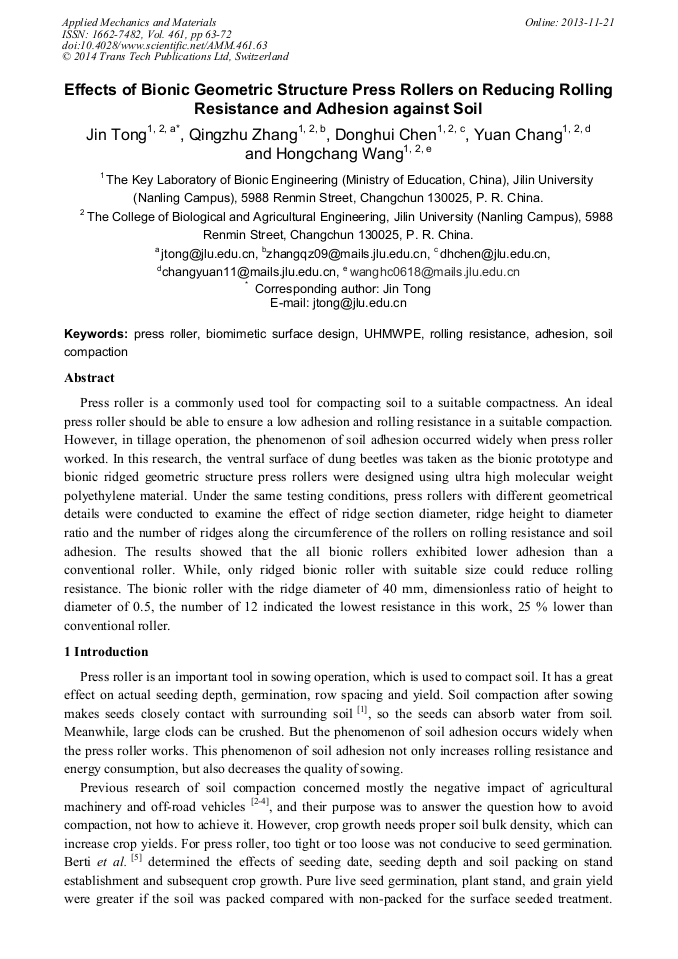

Effects of Bionic Geometric Structure Press Rollers on Reducing Rolling Resistance and Adhesion against Soil

Abstract:

Press roller is a commonly used tool for compacting soil to a suitable compactness. An ideal press roller should be able to ensure a low adhesion and rolling resistance in a suitable compaction. However, in tillage operation, the phenomenon of soil adhesion occurred widely when press roller worked. In this research, the ventral surface of dung beetles was taken as the bionic prototype and bionic ridged geometric structure press rollers were designed using ultra high molecular weight polyethylene material. Under the same testing conditions, press rollers with different geometrical details were conducted to examine the effect of ridge section diameter, ridge height to diameter ratio and the number of ridges along the circumference of the rollers on rolling resistance and soil adhesion. The results showed that the all bionic rollers exhibited lower adhesion than a conventional roller. While, only ridged bionic roller with suitable size could reduce rolling resistance. The bionic roller with the ridge diameter of 40 mm, dimensionless ratio of height to diameter of 0.5, the number of 12 indicated the lowest resistance in this work, 25 % lower than conventional roller.

• Periodical: Applied Mechanics and Materials (Volume 461)
• Pages: 63-72
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.461.63
• Online since: November 2013
• Authors: Jin Tong, Qing Zhu Zhang, Dong Hui Chen, Yuan Chang, Hong Chang Wang
• Keywords: Adhesion, Biomimetic Surface Design, Press Roller, Rolling Resistance, Soil Compaction, UHMWPE

References

[1] Bicki T J, Siemens J C, Crop response to wheel traffic soil compaction, Trans. of the ASAE. 34 (1991) 909-913.

DOI: 10.13031/2013.31748

[2] Maciejewski J, Jarzebowski A, Experimental analysis of soil deformation below a rolling rigid cylinder, J. Terra. 41 (2004) 223-241.

DOI: 10.1016/j.jterra.2004.04.004

[3] Hakansson I, Medvedev V W, Protection of soils from mechanical overloading by establishing limits for stresses caused by heavy vehicles, Soil Till. Res. 35 (1995) 85-97.

DOI: 10.1016/0167-1987(95)00476-9

[4] Peth S, Horn R, The mechanical behavior of structured and homogenized soil under repeated loading, J. Plant Nutr. Soil Sci. 169 (2006), 401-410.

DOI: 10.1002/jpln.200521942

[5] Marisol T B, Burton L J, Robert A. H, Seeding depth and soil packing affect pure live seed emergence of cuphea, Ind. Crop Prod. 27 (2008) 272-278.

DOI: 10.1016/j.indcrop.2007.10.004

[6] Johnsto A M, Lafond G P, May W E, Hnatowich, G L, Hultgreen G E, Opener, packer wheel and packing force effects on crop emergence and yield of direct seeded wheat, canola and field peas, Can. J. Plant Sci. 83 (2003) 129-139.

DOI: 10.4141/p01-171

[7] Taser O F, Kara O, Silage maize (Zea mays L. ) seedlings emergence as influenced by soil compaction treatments and contact pressures, Plant Soil Environ. 51 (2005) 289-295.

DOI: 10.17221/3588-pse

[8] Tong J, Ren L Q, Yan J, Chen B Q, Adhesion and abrasion of several materials against soil, Inter. Agri. Eng. J. 8 (1999) 1-22.

[9] Tong J, Moayad Z, Ma Y H, Sun J Y, Chen D H, Jia H L, Ren L Q, Effects of Biomimetic Surface Designs on Furrow Opener Performance, J. Bio. Eng. 6 (2009) 280-289.

DOI: 10.1016/s1672-6529(08)60128-6

[10] Qaisrani A R, Chen B C, Ren L Q, Modified and unsmoothed plow surfaces-A means to reduce plowing resistance, Inter. Agri. Eng. J. 1 (1992) 115-124.

[11] Salokhea V M, Gee-Clougha D, Technology showcase applications of enamel coating in agriculture, J. Terra. 26 (1989) 275-286.

[12] Tong J, Moayad B Z, Ren L Q, Chen B C, Biomimetics in soft terrain machines: A Review, Inter. Agri. Eng. J. 13 (2004) 71-86.

[13] Ren L Q, Tong J, Li J Q, Chen B C, Soil adhesion and biomimetics of soil-engaging components: a review, J. Agr. Eng. Res. 79 (2001) 239-263.

[14] Tong J, Ren L Q, Chen B C, Geometrical morphology, chemical constitution and wettability of body surfaces of soil animals, Inter. Agri. Eng. J. 3 (1994) 59-68.

[15] Ren L Q, Cong Q, Tong J, Chen B C, Reducing adhesion of soil against loading shovel using bionic electro-osmosis method, J. Terra. 38 (2001) 211-219.

DOI: 10.1016/s0022-4898(01)00002-7

[16] Shan H Y, Zhou H, Sun N, Ren L Q, Chen L, Li X Z, Study on adhesion resistance behavior of sample with striated non-smooth surface by laser processing technique, J. Mat. Proc. Tech. 199 (2008) 221-229.

DOI: 10.1016/j.jmatprotec.2007.07.033

[17] Soni P, Salokhe V M, Influence of Dimensions of UHMW-PE Protuberances on Sliding Resistance and Normal Adhesion of Bangkok Clay Soil to Biomimetic Plates, J. Bio. Eng. 3 (2006) 63-71.

DOI: 10.1016/s1672-6529(06)60009-7

[18] Soni P, Salokhe V M, Nakashima H. Modification of a mouldboard plough surface using arrays of polyethylene protuberances, J. Terra. 44 (2007) 411-422.

DOI: 10.1016/j.jterra.2007.11.001

[19] Ren L Q, Han Z W, Li J Q, Tong J, Effects of non-smooth characteristics on bionic bulldozer blades in resistance reduction against soil, J. Terra. 39 (2002) 221-230.

DOI: 10.1016/s0022-4898(03)00012-0

[20] Chinese Academy of Agricultural Mechanization Science (CAAMS), Agricultural Machine Design Manual, Machine-Building Industry Press, Beijing, (2007).

[21] Bailey A C, A model for agricultural soil compaction, J. Agric. Eng. Res. 33 (1986) 257-262.
