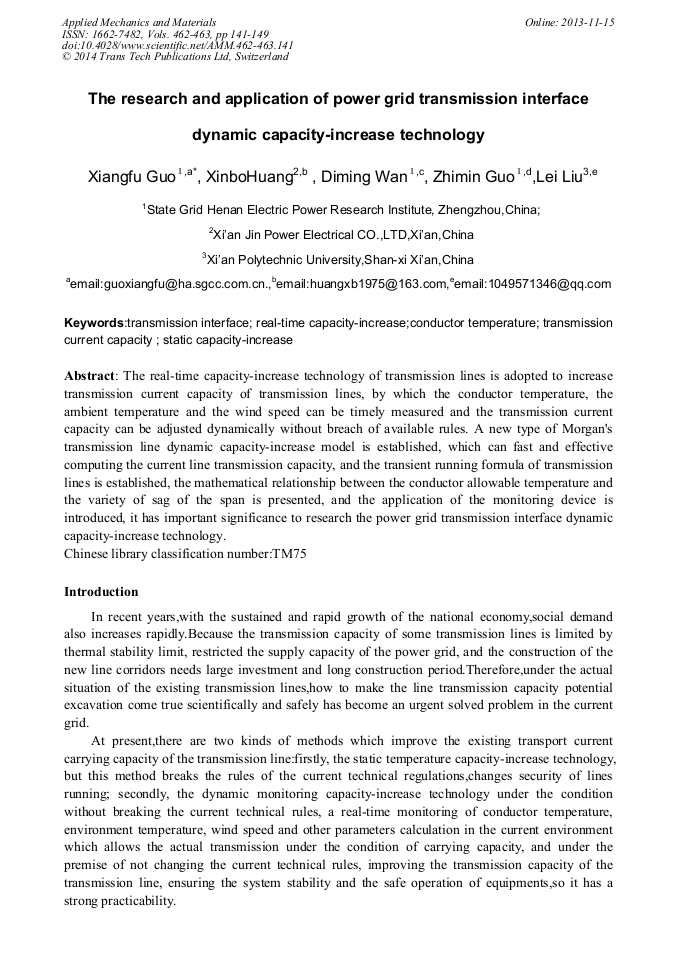

The Research and Application of Power Grid Transmission Interface Dynamic Capacity-Increase Technology

Abstract:

The real-time capacity-increase technology of transmission lines is adopted to increase transmission current capacity of transmission lines, by which the conductor temperature, the ambient temperature and the wind speed can be timely measured and the transmission current capacity can be adjusted dynamically without breach of available rules. A new type of Morgan's transmission line dynamic capacity-increase model is established, which can fast and effective computing the current line transmission capacity, and the transient running formula of transmission lines is established, the mathematical relationship between the conductor allowable temperature and the variety of sag of the span is presented, and the application of the monitoring device is introduced, it has important significance to research the power grid transmission interface dynamic capacity-increase technology.

• Periodical: Applied Mechanics and Materials (Volumes 462-463)
• Pages: 141-149
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.462-463.141
• Online since: November 2013
• Authors: Xiang Fu Guo, Xin Bo Huang, Di Ming Wan, Zhi Min Guo, Lei Liu*
• Keywords: Conductor Temperature, Real-Time Capacity-Increase, Static Capacity-Increase, Transmission Current Capacity, Transmission Interface

References

[1] Hongsheng Ye, Dawei Gong, Weizhong Huangetc., To improve the feasibility study and engineering practice of conductor allowable temperature[J]. power construction, 2004, 25(9): 127 In Chinese.

[2] Zhiyin Qian, Feng Zhu, Study on improving the East China power grid of 500 kV transmission line capacity[J]. East China Electric Power, 2003, 31(6): 426 In Chinese.

[3] Xinbo Huang, Qindong Sun, Guanjun Zhang, etc., The theoretical calculation and application of real-time capacity increase technology of transmission lines[J]. high voltage technique, 2008, 34(6): 1138-1144 In Chinese.

[4] IEC1597, Overhead electrical conductors2calculationmethods for stranded bare conductors[S]. (1995).

[5] Guodong Ma, Wire and cable ampacity[M]. Beijing: China Electric Power Press, 2003 In Chinese.

[6] LiJia Ren, Gehao Cheng, Lixue Li, etc., Dynamically determine transmission line transmission capacity [J]. Automation of electric power systems, 2006, 30 (17) : 45-49.

[7] Xinbo Huang, Qindong Sun, Ronggui Cheng, etc., The design of the dynamic capacity of transmission line system [J]. Microcomputer information, 2008, 24 (3) : 17-19 In Chinese.

DOI: 10.1049/cp:20061864

[8] Changqing Liu, Xuezhe Zhang, Shengchun Liu, Improve the wire run several issues of the allowed temperature [J]. Electric power equipment, 2004, 5 (8) : 44247 In Chinese.

[9] Xiaoyan Han, Xinbo Huang, Xiaohui Zhao, etc., Morgan transmission lines carrying capacity simplified formula of the initial study [J]. Journal of electric power system and its automation, 2009, 25 (5), 92-96 In Chinese.
