Preventing Drum Brake Squeal through Lining Modifications

Abstract:

Drum brake squeal is one of the most common and annoying types of brake noise and it usually falls in the frequency range between 0.5-16 kHz. Brake squeal continues to confront vehicle manufacturers where it not only leads to significant increase in the warranty costs but also may affect customers perception on quality of the vehicle. Thus this paper attempts to prevent drum brake squeal by means of lining modifications. In doing so, finite element method is first employed and squeal noise will be then predicted using complex eigenvalue (CE) analysis. A good lining modification should be able to stabilize the drum brake assembly by shifting or reducing positive real parts toward zero or negative real parts in the eigenvalue analysis. Finally, laboratory squeal tests are conducted on the four proposed modifications to verify its effectiveness against squeal.

You might also be interested in these eBooks

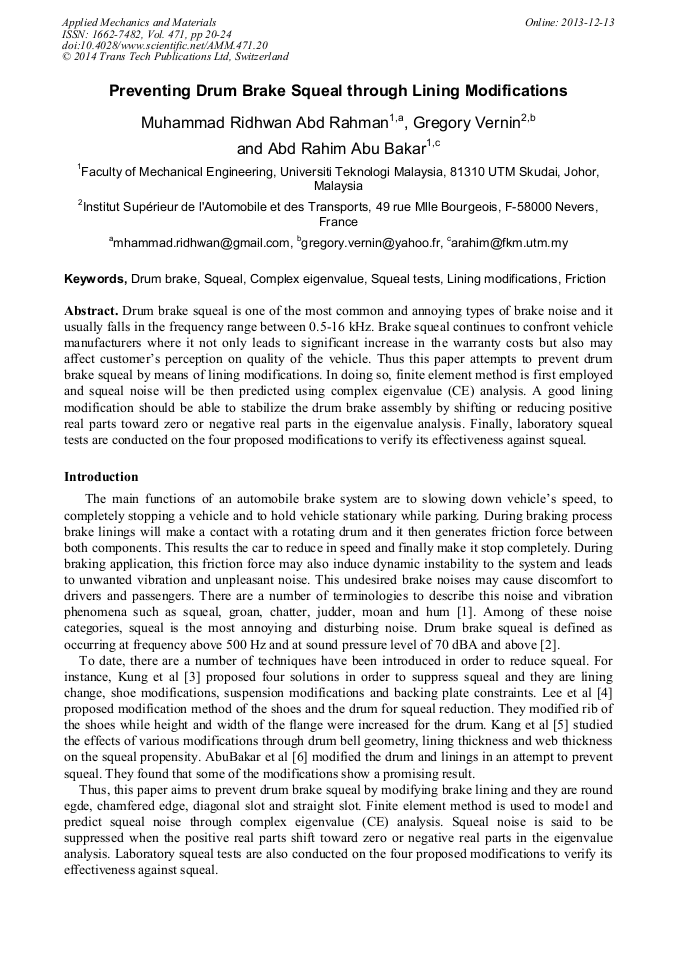

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 471)

Pages:

20-24

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.471.20

Citation:

Cite this paper

Online since:

December 2013

Authors:

Muhammad Ridhwan Abd Rahman, Gregory Vernin, Abd Rahim Abu Bakar

Keywords:

Complex Eigenvalue, Drum Brake, Friction, Lining Modifications, Squeal, Squeal Tests

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] N.M. Kinkaid, O.M. O'Reilly, P. Papadopoulos, Automotive disc brake squeal: a review, Journal of Sound and Vibration. 267 (2003) 105-166.

DOI: 10.1016/s0022-460x(02)01573-0

Google Scholar

[2] SAE Technical Standard Board, Disc and drum brake dynamometer squeal noise matrix, Surface Vehicle Recommended Practice. SAE J2521, (2006).

DOI: 10.4271/j2521_200105

Google Scholar

[3] S.W. Kung, G. Stelzer, K.A. Smith, A study on low frequency drum brake squeal, SAE Technical Paper. 2004-01-2787 (2004) 1-9.

DOI: 10.4271/2004-01-2787

Google Scholar

[4] J.M. Lee, S.W. Yoo, C.G. Ahn, C.S. Park, Chang, S., S.S. Cho, A study on the squeal noise of drum brakes, Proceedings of the 14th International Modal Analysis Conference. (1996) 1369-1375.

Google Scholar

[5] H.I. Kang, P.C. Brooks, D.C. Barton, Drum brake squeal prediction using a parametric finite element model, 2nd International Symposium on advanced Materials for Fluid Machinery, Institution of Mechanical Engineers (UK). (2002) 17-33.

Google Scholar

[6] A.R. AbuBakar, M.R. Buang, M.Z.A. Rashid, R.A. Rahman, Suppression of drum brake squeal through structural modifications using finite element method, Int. Journal of Vehicle Design. 51 (2009) 3-20.

DOI: 10.1504/ijvd.2009.027113

Google Scholar
