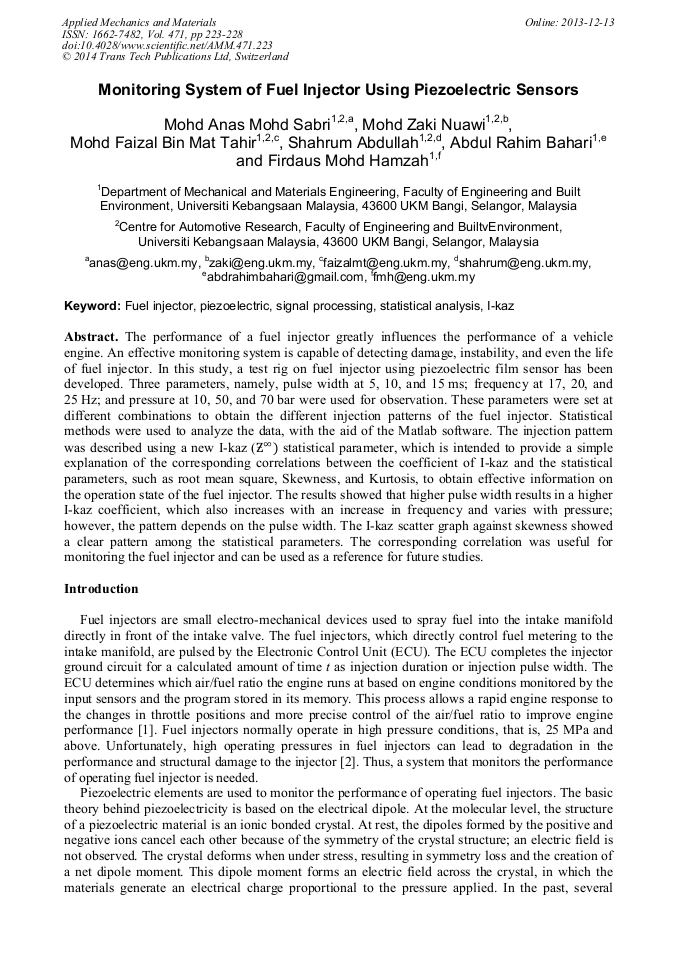

Monitoring System of Fuel Injector Using Piezoelectric Sensors

Abstract:

The performance of a fuel injector greatly influences the performance of a vehicle engine. An effective monitoring system is capable of detecting damage, instability, and even the life of fuel injector. In this study, a test rig on fuel injector using piezoelectric film sensor has been developed. Three parameters, namely, pulse width at 5, 10, and 15 ms; frequency at 17, 20, and 25 Hz; and pressure at 10, 50, and 70 bar were used for observation. These parameters were set at different combinations to obtain the different injection patterns of the fuel injector. Statistical methods were used to analyze the data, with the aid of the Matlab software. The injection pattern was described using a new I-kaz (Ƶ) statistical parameter, which is intended to provide a simple explanation of the corresponding correlations between the coefficient of I-kaz and the statistical parameters, such as root mean square, Skewness, and Kurtosis, to obtain effective information on the operation state of the fuel injector. The results showed that higher pulse width results in a higher I-kaz coefficient, which also increases with an increase in frequency and varies with pressure; however, the pattern depends on the pulse width. The I-kaz scatter graph against skewness showed a clear pattern among the statistical parameters. The corresponding correlation was useful for monitoring the fuel injector and can be used as a reference for future studies.

• Periodical: Applied Mechanics and Materials (Volume 471)
• Pages: 223-228
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.471.223
• Online since: December 2013
• Authors: Mohd Anas Mohd Sabri, Mohd Zaki Nuawi, Mohd Faizal Bin Mat Tahir, Shahrum Abdullah, Abdul Rahim Bahari, Firdaus Mohd Hamzah
• Keywords: Fuel Injector, I-Kaz, Piezoelectric, Signal Processing, Statistical Analysis

References

[1] Guo H., Gao W., Liu X: Study on Measurement System of the Dynamic Performances for an Electronic Fuel Injector. Measuring Technology and Mechatronics Automation: (2010), p.608 – 611.

DOI: 10.1109/icmtma.2010.527

[2] Asi O.: Failure of A Diesel Engine Injector Nozzle by Cavitation Damage. Engineering Failure Analysis 13 (2005), p.1126–1133.

DOI: 10.1016/j.engfailanal.2005.07.021

[3] Istihat, Y.: Pembangunan Rig Kajian Sistem Penyuntik Bahan Api Menggunakan Kaedah Ultrasonik. Bangi: Universit Kebangsaan Malaysia. (2011).

[4] Wang J., Zhang Y.T., Yuan X. Y.: ] Noncontact Measurement of Needle Displacement in Electronic Controlled Fuel Injector. Measuring Technology and Mechatronics Automation (ICMTMA) (2010), pp.777-780.

DOI: 10.1109/icmtma.2010.622

[5] Leea K.H., Leea C.H., Leeb C.S. An Experimental Study On The Spray Behavior and Fuel Distribution of GDI Injectors Using The Entropy Analysis and PIV Method. Fuel 83 (2003), p.971–980.

DOI: 10.1016/j.fuel.2003.10.021

[6] Payri F., Bermudez V., Payri R., Salvador F.J. The influence of cavitation on the internal flow and the spray characteristics in diesel injection nozzles. Fuel 2004 83 (2004), p.419–31.

DOI: 10.1016/j.fuel.2003.09.010

[7] Arcoumanis C., Gavaises M., Flora H., Roth H. Visualisation of cavitation in diesel engine injectors. Me´canique & Industries 2 (2001), p.375–81.

DOI: 10.1016/s1296-2139(01)01119-8

[8] Erwin, P., Michael, B, Lutz, D.: Form Measurement Inside Fuel Injector Nozzles Pray Holes. Microelectronic Engineering 86 (2008), p.984–986 Science 8 (8) (2008), pp.1541-1547.

DOI: 10.1016/j.mee.2008.12.016

[9] Gotszalk, T., Grabiec, P., Rangelow, I.W. Piezoresistive sensors for scanning probe microscopy. Ultramicroscopy, 82 (1-4), (2000), pp.39-48.

DOI: 10.1016/s0304-3991(99)00171-0

[10] Peiner, E., Doering, L. Characterization of diesel injectors using piezoresistive sensors. Sensors, 2010 IEEE: 2083 - (2088).

DOI: 10.1109/icsens.2010.5690341

[11] Jaharah A. Ghani, Muhammad Rizal, Ahmad Sayuti, Mohd Zaki Nuawi, Mohd Nizam Ab. Rahman, and Che Hassan Che Haron, 2009. New Regression Model and I- Kaz Method for Online Cutting Tool Wear Monitoring. Proceedings of World Academy of Science, Engineering and Technology 60, pp.420-425.

DOI: 10.4028/www.scientific.net/amr.126-128.738

[12] Nuawi, M. Z., Nor, M.J.M. Jamaludin, N., Abdullah, S., Lamin, F. and Nizwan C.K.E.: Development of Integrated Kurtosis-Based Algorithm for Z-filter technique. Journal of Applied Science 8 (8): 1541-1547.

DOI: 10.3923/jas.2008.1541.1547
