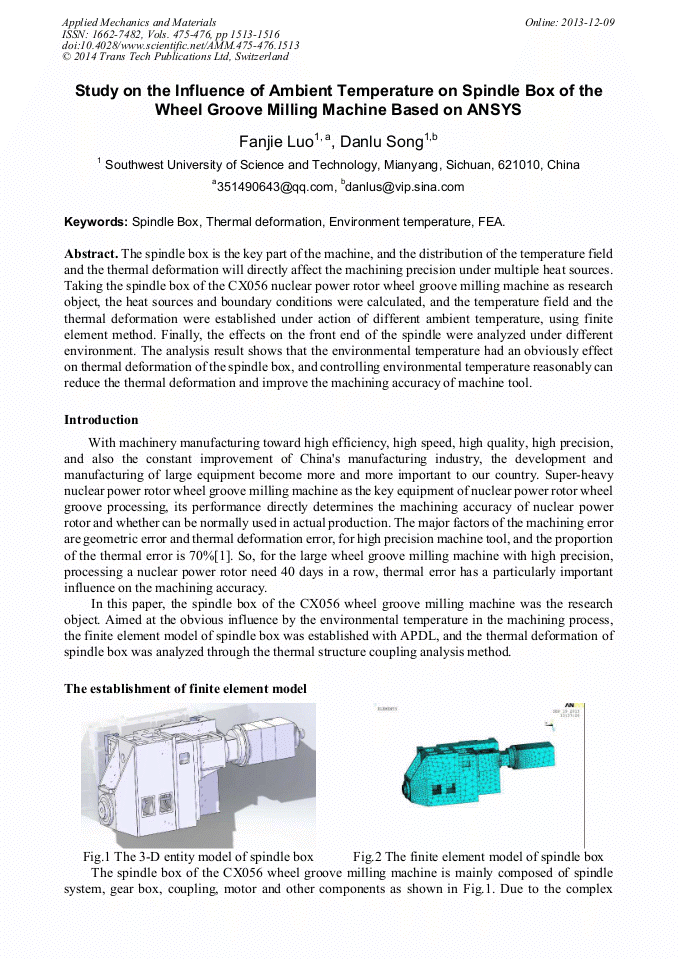

Study on the Influence of Ambient Temperature on Spindle Box of the Wheel Groove Milling Machine Based on ANSYS

Abstract:

The spindle box is the key part of the machine, and the distribution of the temperature field and the thermal deformation will directly affect the machining precision under multiple heat sources. Taking the spindle box of the CX056 nuclear power rotor wheel groove milling machine as research object, the heat sources and boundary conditions were calculated, and the temperature field and the thermal deformation were established under action of different ambient temperature, using finite element method. Finally, the effects on the front end of the spindle were analyzed under different environment. The analysis result shows that the environmental temperature had an obviously effect on thermal deformation of the spindle box, and controlling environmental temperature reasonably can reduce the thermal deformation and improve the machining accuracy of machine tool.

• Periodical: Applied Mechanics and Materials (Volumes 475-476)
• Pages: 1513-1516
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.475-476.1513
• Online since: December 2013
• Authors: Fan Jie Luo*, Dan Lu Song
• Keywords: Environment Temperature, Finite Element Analysis (FEA), Spindle Box, Thermal Deformation

References

[1] Ramesh R, Mannan M A, Poo A N. Error compensation in machine tools—a review partⅡ: thermal errors[J]. International Journal of Machine Tools and Manufacture, 2000, 40( 9): 1257 -1284.

DOI: 10.1016/s0890-6955(00)00010-9

[2] Xiang Jun, Han Qiushi, Peng Baoyun, Thermal field modeling and simulation of spindle system on turning-grinding machine tool, Machinery Design & Manufacture. 150-154(2011), p.10.

[3] Zhao Haitao, Yang Jianguo, Shen Jinhua. Simulation of thermal behavior of a CNC machine tool spindle[J]. International Journal of Machine Tools&Manufacture, 2007, 47( 6) : 1003 -1010.

DOI: 10.1016/j.ijmachtools.2006.06.018

[4] Kim Jong-Jin, Jeong Young Hun, Cho Dong-Woo. Thermal behavior of a machine tool equipped with linear motors [J]. International Journal of Machine Tools&Manufacture, 2004, 44( 7 /8) : 749-758.

DOI: 10.1016/j.ijmachtools.2004.02.006

[5] Jin Kyung Choi, Dai Gil Lee. Thermal characteristics of the spindle bearing system with a gear located on the bearing span[J]. International Journal of Machine Tools & Manufacture, 38(1998): 1017-1030.

DOI: 10.1016/s0890-6955(97)00075-8

[6] Yun W S, Kim S K, Cho D W, Thermal error analysis for a CNC lathe feed drive system, International Journal of Machine Tools & Manufacture. 1087-1101 (1998), p.39.

DOI: 10.1016/s0890-6955(98)00073-x
