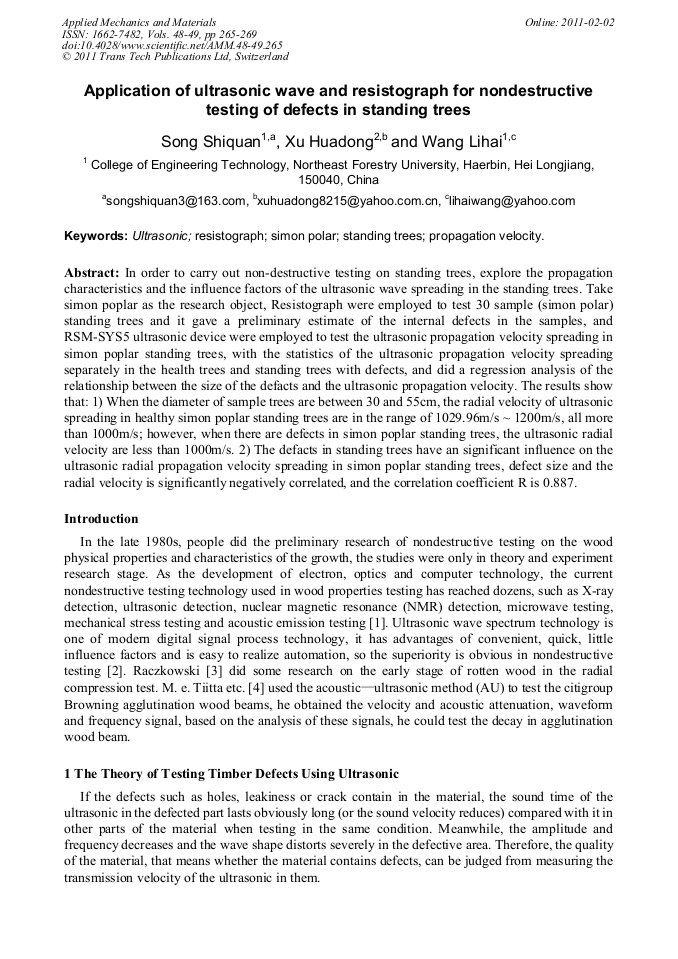

Application of Ultrasonic Wave and Resistograph for Nondestructive Testing of Defects in Standing Trees

Abstract:

In order to carry out non-destructive testing on standing trees, explore the propagation characteristics and the influence factors of the ultrasonic wave spreading in the standing trees. Take simon poplar as the research object, Resistograph were employed to test 30 sample (simon polar) standing trees and it gave a preliminary estimate of the internal defects in the samples, and RSM-SYS5 ultrasonic device were employed to test the ultrasonic propagation velocity spreading in simon poplar standing trees, with the statistics of the ultrasonic propagation velocity spreading separately in the health trees and standing trees with defects, and did a regression analysis of the relationship between the size of the defacts and the ultrasonic propagation velocity. The results show that: 1) When the diameter of sample trees are between 30 and 55cm, the radial velocity of ultrasonic spreading in healthy simon poplar standing trees are in the range of 1029.96m/s ~ 1200m/s, all more than 1000m/s; however, when there are defects in simon poplar standing trees, the ultrasonic radial velocity are less than 1000m/s. 2) The defacts in standing trees have an significant influence on the ultrasonic radial propagation velocity spreading in simon poplar standing trees, defect size and the radial velocity is significantly negatively correlated, and the correlation coefficient R is 0.887.

• Periodical: Applied Mechanics and Materials (Volumes 48-49)
• Pages: 265-269
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.48-49.265
• Online since: February 2011
• Authors: Shi Quan Song, Hua Dong Xu, Li Hai Wang
• Keywords: Propagation Velocity, Resistograph, Simon Polar, Standing Trees, Ultrasonic

References

[1] Wang Lihai, Yang Xuechun, Xu Kaihong; Current situations and research development of non-destructive testing for wood properties [J]. Forest Engineering, 2001, 17(6): 1-3.

[2] Liu Zhen qing, Chen Guang. Spectral analysis for ultrasonic non-destructive testing [J]. Non Destructive Testing, 2001, 23(2): 85-87.

[3] Raczkowski J, Lutomski K, Moliński W, et al. Detection of early stages of wood decay by acoustic emission technique[J]. Wood Science and Technology, 1999, 33: 353-358.

DOI: 10.1007/s002260050121

[4] Tiitta M E, Bell F C, Biernacki J M. Classification study for using acoustic-ultrasonic to detect internal decay in glulam beams[J]. Wood Science and Technology, 2001, 35: 85-96.

DOI: 10.1007/s002260000082

[5] Li Naichao, Ma Yue. Principles, methods and influencing factors of ultrasonic detecting defects of concrete [J]. Shaanxi Architecturel, 2007, (8): 31-33.

[6] Lv Liren, Chen Zhaobin. Feasibility discussion of ultrasonic testing to wood quality [J]. Railway Quality Control, 1999(6): 33-34.

[7] Dunlop J I. Testing of Poles by using acoustic pulse method [J]. Wood Science and Technology, 1981(4): 301-310.

DOI: 10.1007/bf00350947
