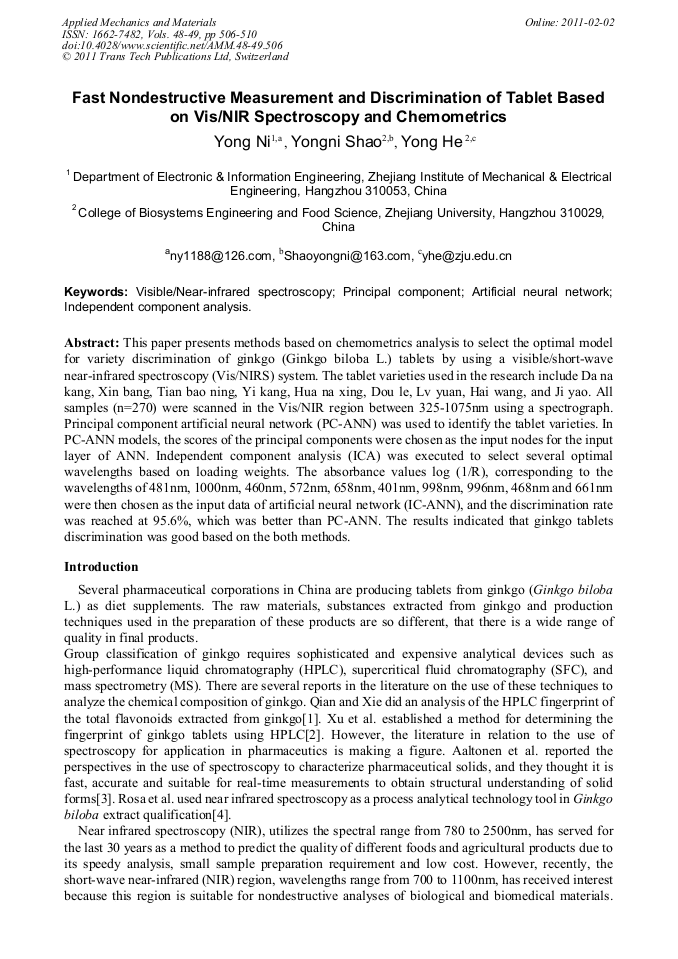

Fast Nondestructive Measurement and Discrimination of Tablet Based on Vis/NIR Spectroscopy and Chemometrics

Abstract:

This paper presents methods based on chemometrics analysis to select the optimal model for variety discrimination of ginkgo (Ginkgo biloba L.) tablets by using a visible/short-wave near-infrared spectroscopy (Vis/NIRS) system. The tablet varieties used in the research include Da na kang, Xin bang, Tian bao ning, Yi kang, Hua na xing, Dou le, Lv yuan, Hai wang, and Ji yao. All samples (n=270) were scanned in the Vis/NIR region between 325-1075nm using a spectrograph. Principal component artificial neural network (PC-ANN) was used to identify the tablet varieties. In PC-ANN models, the scores of the principal components were chosen as the input nodes for the input layer of ANN. Independent component analysis (ICA) was executed to select several optimal wavelengths based on loading weights. The absorbance values log (1/R), corresponding to the wavelengths of 481nm, 1000nm, 460nm, 572nm, 658nm, 401nm, 998nm, 996nm, 468nm and 661nm were then chosen as the input data of artificial neural network (IC-ANN), and the discrimination rate was reached at 95.6%, which was better than PC-ANN. The results indicated that ginkgo tablets discrimination was good based on the both methods.

• Periodical: Applied Mechanics and Materials (Volumes 48-49)
• Pages: 506-510
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.48-49.506
• Online since: February 2011
• Authors: Yong Ni, Yong Ni Shao, Yong He
• Keywords: Artificial Neural Network (ANN), Independent Component Analysis (ICA), Principal Component, Visible/Near Infrared Spectroscopy

References

[1] Qian H Q, Xie P S, in: Methodology study of HPLC fingerprint of herbal medicine-a case analysis of the fingerprint of total flavonoids extracted from ginkgo Biloba leaves. Journal of Instrumental Analysis, 2004, 23: 7-11.

[2] Xu Y P, Yao T W, Jiang J W, in: HPLC fingerprint of the tablets of ginkgo Biloba L. Journal of Zhejiang University (Medical Sciences) , 2004, 33: 24-28.

[3] Aaltonen J, Gordon K C, Strachan C J, etc, in: Perspectives in the use of spectroscopy to characterise pharmaceutical solids. Int. J. Pharm. 2008, 364: 159-169.

DOI: 10.1016/j.ijpharm.2008.04.043

[4] Rosa S S, Barata P A, Martins J M, etc, in: Near-infrared reflectance spectroscopy as a process analytical technology tool in Ginkgo Biloba extract qualification. J. Pharm. Biomed. Anal. 2008, 47: 320-327.

DOI: 10.1016/j.jpba.2008.01.031

[5] Sasic S, Ozaki Y, in: Short-wave near-infrared spectroscopy of biological fluids. 1. Quantitative analysis of fat, protein, and lactose in raw milk by partial least-squares regression and band assignment. Anal. Chem. 2001, 73: 64-71.

DOI: 10.1021/ac000469c

[6] Gendrin C, Roggo Y, Collet C, in:. Pharmaceutical application of vibrational chemical imaging and chemometrics: A review. J. Pharm. Biomed. Anal. 2008, 48: 533-553.

DOI: 10.1016/j.jpba.2008.08.014

[7] Min M, Lee W S, Kim Y H, Bucklin R A,. in: Nondestructive detection of nitrogen in Chinese cabbage leaves using VIS-NIR spectroscopy. Hortscience 2006, 41: 162-166.

DOI: 10.21273/hortsci.41.1.162

[8] Cen H Y, He Yong, Huang M, in: Measurement of soluble contents and pH in orange juice using chemometrics and Vis-NIRS. J. Agric. Food Chem. 2006, 54: 7437-7443.

DOI: 10.1021/jf061689f

[9] Mello C, Poppi R J, de Andrade J C, etc, in: Pruning neural network for architecture optimization applied to near-infrared reflectance spectroscopic measurements. Determination of the nitrogen content in wheat leaves. Analyst 1999, 124: 1669-1674.

DOI: 10.1039/a905570c

[10] He Y, Li X L, Deng X F, in: Discrimination of varieties of Tea Using Near Infrared Spectroscopy by Principal Component Analysis and BP Model. J. Food Eng. 2007. 79: 1238-1242.

DOI: 10.1016/j.jfoodeng.2006.04.042

[11] S. Amari, A. Cichocki, H.H. Yang: Adv. Neural Inf. Process. Syst. 1996, 8: 757-763.

[12] Hyvarinen A, in: Sparse code shrinkage: Denoising of nongaussian data by maximum likelihood estimation. Neural Comput. 1999, 11: 1739-1768.

DOI: 10.1162/089976699300016214

[13] Hoyer P O, Hyvarinen A, in: Independent component analysis applied to feature extraction from colour and stereo images. Netw. -Comput. Neural Syst. 2000, 11: 191-210.

DOI: 10.1088/0954-898x_11_3_302

[14] Chen J, Wang X Z, in: A new approach to near-infrared spectral data analysis using independent component analysis. J. Chem. Inf. Comput. Sci. 2001, 41: 992-1001.

DOI: 10.1021/ci0004053

[15] Xu M Y. Han Y L, Dong Y G Z, etc, in: Separation, purification and spectrum analysis of total flavonoid from cercis chinensis. Journal of Chinese Medicinal Materials 2007, 30: 1252-1255.
