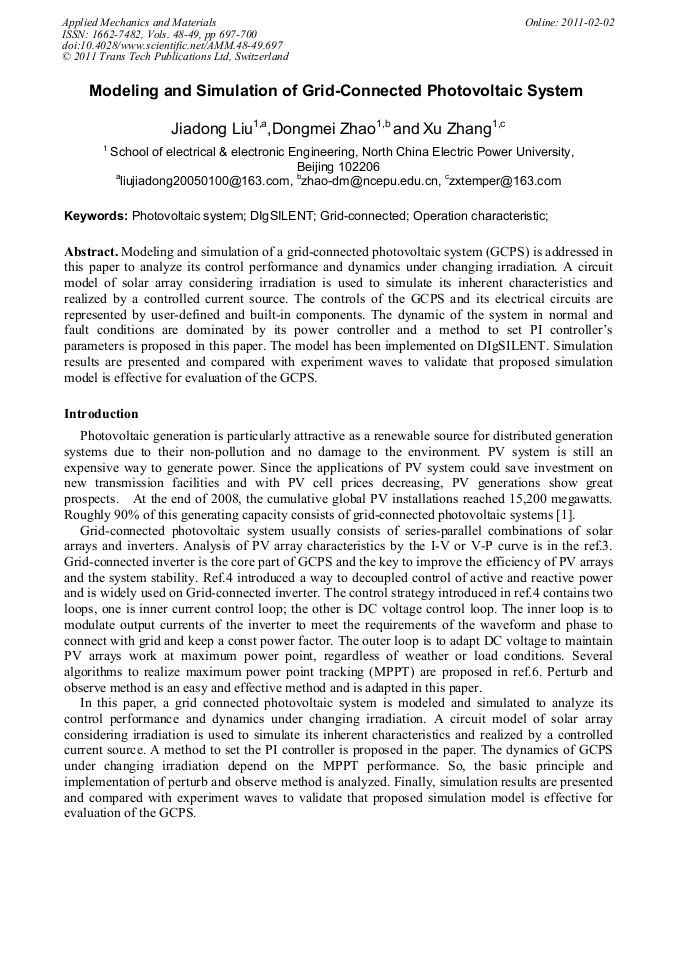

Modeling and Simulation of Grid-Connected Photovoltaic System

Abstract:

Modeling and simulation of a grid-connected photovoltaic system (GCPS) is addressed in this paper to analyze its control performance and dynamics under changing irradiation. A circuit model of solar array considering irradiation is used to simulate its inherent characteristics and realized by a controlled current source. The controls of the GCPS and its electrical circuits are represented by user-defined and built-in components. The dynamic of the system in normal and fault conditions are dominated by its power controller and a method to set PI controller’s parameters is proposed in this paper. The model has been implemented on DIgSILENT. Simulation results are presented and compared with experiment waves to validate that proposed simulation model is effective for evaluation of the GCPS.

• Periodical: Applied Mechanics and Materials (Volumes 48-49)
• Pages: 697-700
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.48-49.697
• Online since: February 2011
• Authors: Jia Dong Liu, Dong Mei Zhao, Xu Zhang
• Keywords: DIgSILENT, Grid Connected, Operation Characteristic, Photovoltaic (PV) System

References

[1] Information in: http: /en. wikipedia. org/wiki/Photovoltaics.

[2] Yun Tiam Tan, Daniel S. Kirschen and Nicholas Jenkins, in: A Model of PV Generation Suitable for Stability Analysis IEEE Transactions on Energy Conversion, 2004, 19 (4): 748 - 755.

DOI: 10.1109/tec.2004.827707

[3] Marcelo Gradella Villalva, Jonas Rafael Gazoli and Ernesto Ruppert Filho, in: Comprehensive Approach to Modeling and Simulation of Photovoltaic Arrays IEEE Transactions on Energy Electronics, 2009, 24(5): 1198 - 1208.

DOI: 10.1109/tpel.2009.2013862

[4] LI Rong hua and WANG Gui hua, in: Modeling and Decoupled of Three Pulse VSR Based on d-q Coordinates Electric Switcher[J]. 2009, 47(3): 23-25.

[5] Wu Libo, Zhao Zhengming and Liu Jianzheng, in: A Single-Stage Three-Phase Grid-Connected Photovoltaic System With Modified MPPT Method and Reactive Power Compensation IEEE Transactions on Energy Conversion, 2007, 22(4): 881 - 886.

DOI: 10.1109/tec.2007.895461

[6] G. M. S. Azevedo, M. C. Cavalcanti etc, in: Comparative Evaluation of Maximum Power Point Tracking Methods for Photovoltaic Systems Journal of Solar Energy Engineering, 2009, 131(3): 031006. 1-031006. 8.

DOI: 10.1115/1.3142827

[7] Seul-Ki Kim, Jin-Hong Jeon, in: Modeling and simulation of a grid-connected PV generation system for electromagnetic transient analysis Solar Energy 2009, 83(5): 664–678.

DOI: 10.1016/j.solener.2008.10.020

[8] Marco Liserre, Antonio Dell'Aquila and Frede Blaabjerg, in: Design and Control of a Three-phase Active Rectier Under Non-ideal Operating Conditions, Industry Applications Conference, Conference Record of the 37th IAS Annual Meeting. 2002, 2: 1181 - 1188.

DOI: 10.1109/ias.2002.1042708
