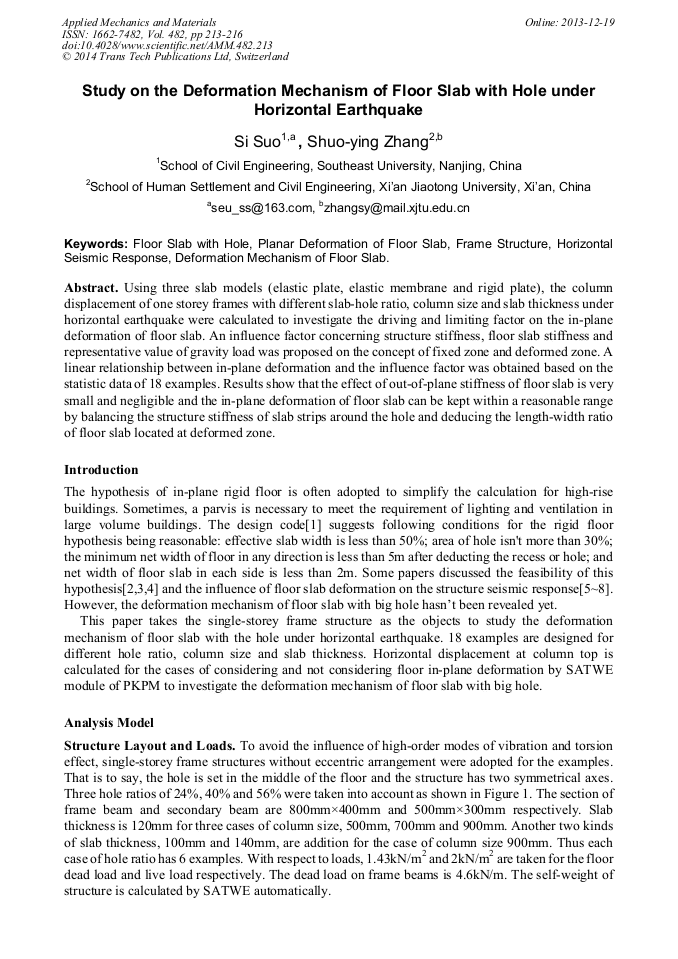

Study on the Deformation Mechanism of Floor Slab with Hole under Horizontal Earthquake

Abstract:

Using three slab models (elastic plate, elastic membrane and rigid plate), the column displacement of one storey frames with different slab-hole ratio, column size and slab thickness under horizontal earthquake were calculated to investigate the driving and limiting factor on the in-plane deformation of floor slab. An influence factor concerning structure stiffness, floor slab stiffness and representative value of gravity load was proposed on the concept of fixed zone and deformed zone. A linear relationship between in-plane deformation and the influence factor was obtained based on the statistic data of 18 examples. Results show that the effect of out-of-plane stiffness of floor slab is very small and negligible and the in-plane deformation of floor slab can be kept within a reasonable range by balancing the structure stiffness of slab strips around the hole and deducing the length-width ratio of floor slab located at deformed zone.

• Periodical: Applied Mechanics and Materials (Volume 482)
• Pages: 213-216
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.482.213
• Online since: December 2013
• Authors: Si Suo, Shuo Ying Zhang
• Keywords: Deformation Mechanism of Floor Slab, Floor Slab with Hole, Frame Structure, horizontal seismic response, Planar Deformation of Floor Slab

References

[1] Technical specification for concrete structures of tall building. China, 2010 (in Chinese).

[2] X. Zhao: Building Structure 6 (1982), pp.1-9 (in Chinese).

[3] M. Fang: Structural Engineers 1(1998), pp.16-21 (in Chinese).

[4] X. Shen and Q. Li: China Civil Engineering Journal Vol. 24 (1991), pp.19-27 (in Chinese).

[5] W. Ma: Journal of Gansu Sciences, Vol. 8 (1996): 62-65 (in Chinese).

[6] L. Jia, W. Hu and Y. Wang: Journal of Shenyang Arch. ＆ Civ. Eng. Univ. Vol. 21 (2005), pp.8-11 (in Chinese).

[7] J. Zhang etc.: Sichuan Building Science Vol. 35 (2009), pp.189-193 (in Chinese).

[8] X. Yu, X. Yin and Z. Zhao: Journal of Jilin Institute of Architecture ＆ Civil Engineering Vol. 28 (2011), pp.17-20 (in Chinese).
