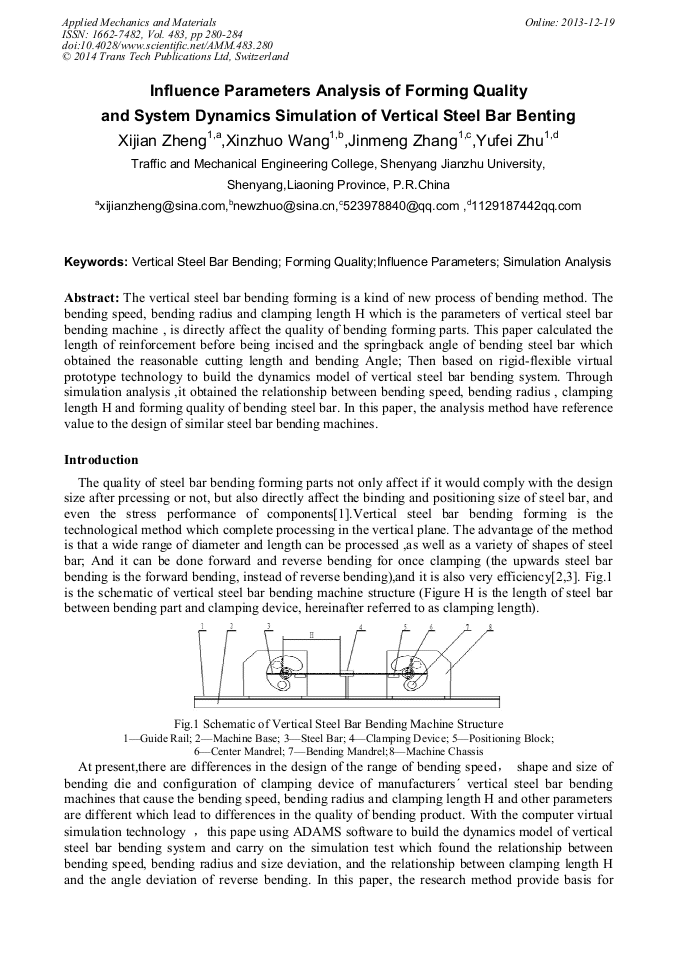

Influence Parameters Analysis of Forming Quality and System Dynamics Simulation of Vertical Steel Bar Benting

Abstract:

The vertical steel bar bending forming is a kind of new process of bending method. The bending speed, bending radius and clamping length H which is the parameters of vertical steel bar bending machine , is directly affect the quality of bending forming parts. This paper calculated the length of reinforcement before being incised and the springback angle of bending steel bar which obtained the reasonable cutting length and bending Angle; Then based on rigid-flexible virtual prototype technology to build the dynamics model of vertical steel bar bending system. Through simulation analysis ,it obtained the relationship between bending speed, bending radius , clamping length H and forming quality of bending steel bar. In this paper, the analysis method have reference value to the design of similar steel bar bending machines.
