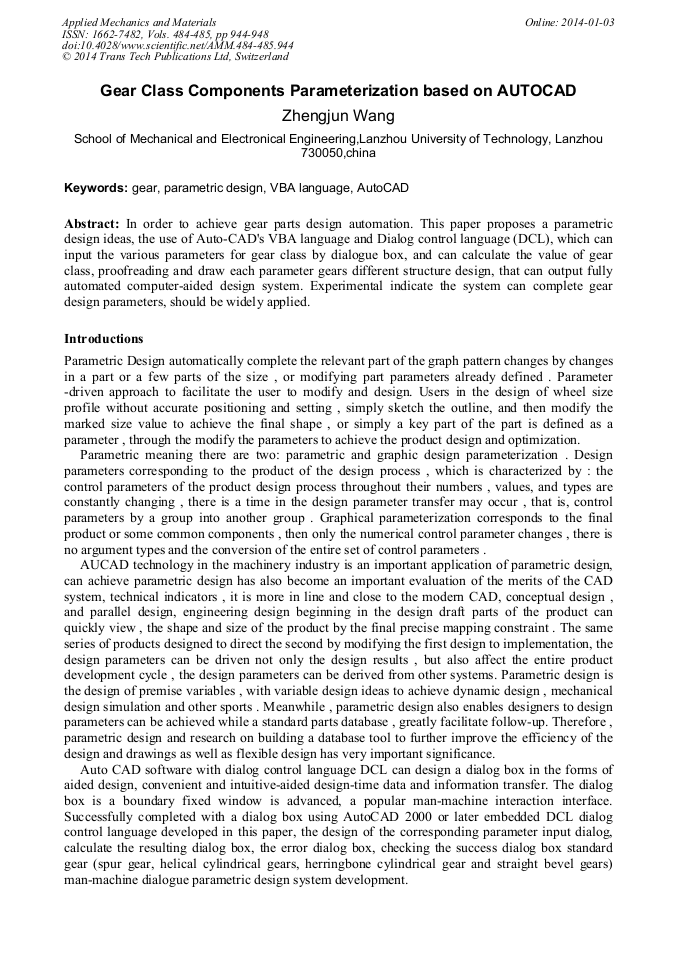

Gear Class Components Parameterization Based on AUTOCAD

Abstract:

In order to achieve gear parts design automation. This paper proposes a parametric design ideas, the use of Auto-CAD's VBA language and Dialog control language (DCL), which can input the various parameters for gear class by dialogue box, and can calculate the value of gear class, proofreading and draw each parameter gears different structure design, that can output fully automated computer-aided design system. Experimental indicate the system can complete gear design parameters, should be widely applied.

• Periodical: Applied Mechanics and Materials (Volumes 484-485)
• Pages: 944-948
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.484-485.944
• Online since: January 2014
• Authors: Zheng Jun Wang
• Keywords: Auto CAD, Gear, Parametric Design, VBA Language

References

[1] Li Changxun. AutoCAD VBA procedure development technology . Beijing: National Defence Industry Press, (2004).

[2] Wu Zhuai. Mechanical standard parts library research and development of AutoCAD based on closed. Coal mine machinery, 2005 (8): 61-63.

[3] Liu Wensheng. Mechanical parts parametric design based on AUTOcAD . Journal of Wuhan Polytechnic University, 2004, 23 (1): 132-136.
