Strain Gage Measurements for Accurate Yield Point Determination

Abstract:

In this contribution the experimental program is summarized. The experiments were aimed especially at the accurate yield point determination on specimens made out of structural low carbon ÈSN 41 1523.1 steel after normalization annealing (ÈSN 411523, ASTM A623-Gr.C). These tests were carried out in the Laboratory of material diagnostics of Institute of Thermomechanics AS CR in Pilsen. Several methods for deformation and force controlled loading and various types (single with one measuring grid, rosette) of strain gages were used for achieved measurements. Likewise, the specimen made from different material batch was tested for comparative purposes. Strain gages were glued on both sides of the specimens for evaluation of coaxial alignment. Reached results are compared with those of tensile tests. All obtained data are evaluated and optimal solution is exported as output. The accurate determination of the yield point is very important for next tests of ratcheting and distortional hardening computation.

You might also be interested in these eBooks

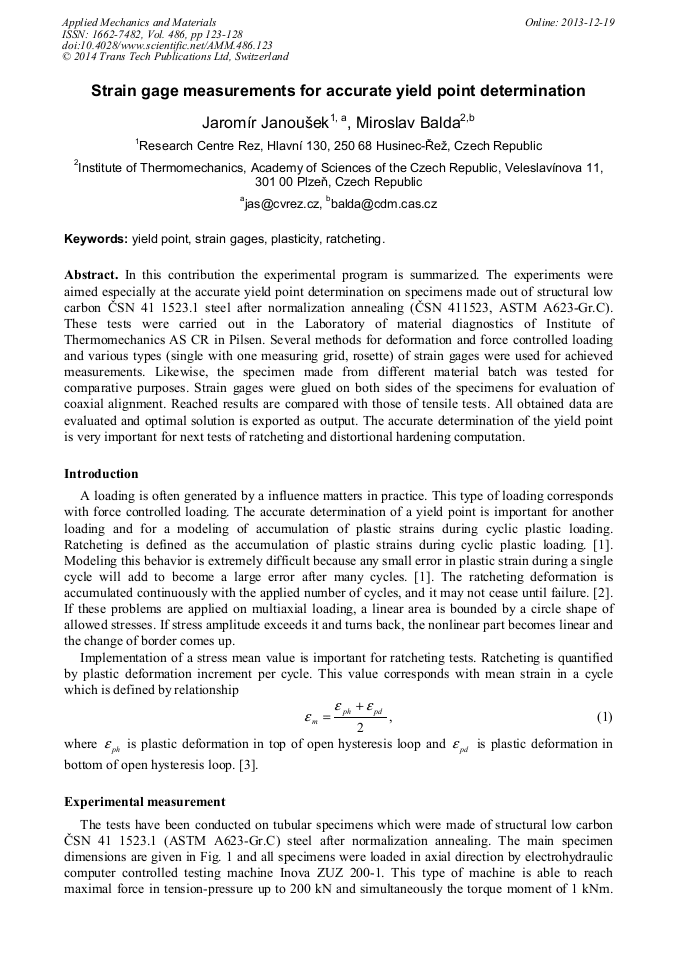

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 486)

Pages:

123-128

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.486.123

Citation:

Cite this paper

Online since:

December 2013

Authors:

Jaromír Janoušek*, Miroslav Balda

Keywords:

Plasticity, Ratcheting, Strain Gages, Yield Point

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] H.P. Feigenbaum, J. Dugdale, Y.F. Dafalias, K.I. Kourousis, J. Plesek, Multiaxial ratcheting with advanced kinematic and directional distortional hardening rules, International Journal of Solids and Structures. 49 (2012) 3063-3076.

DOI: 10.1016/j.ijsolstr.2012.06.006

Google Scholar

[2] X. Chen, R. Jiao, K.S. Kim, Simulation of ratcheting strain to a high number of cycles under biaxial loading, International Journal of Solids and Structures. 40 (2003) 7449-7461.

DOI: 10.1016/j.ijsolstr.2003.08.009

Google Scholar

[3] R. Halama, Experimentální poznatky a fenomenologické modelování cyklické plasticity kovů, habilitační práce VŠB – Technická univerzita Ostrava, (2009).

Google Scholar
