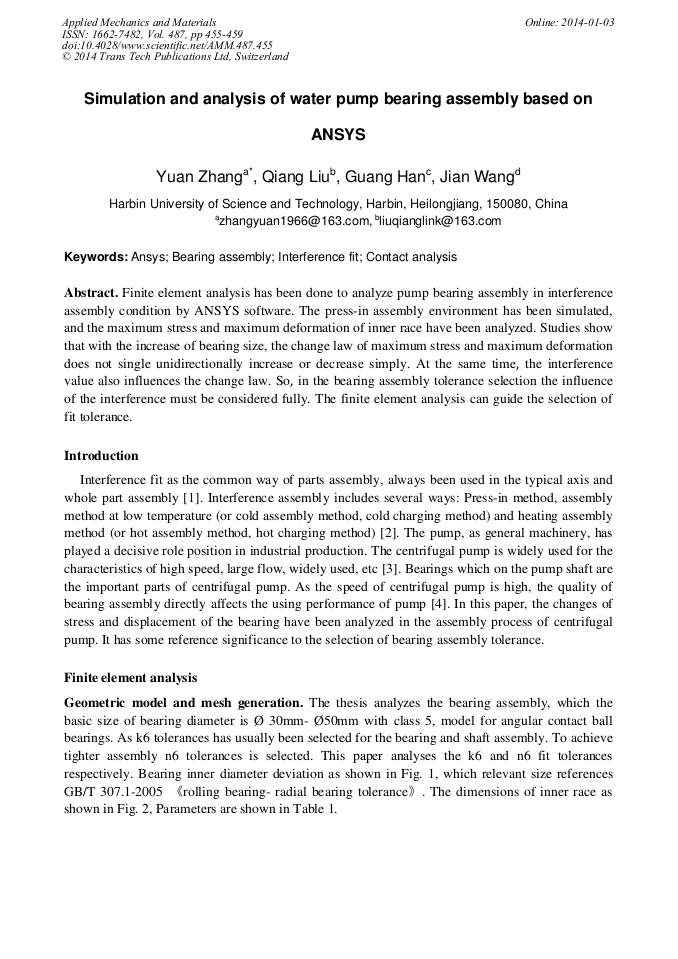

Simulation and Analysis of Water Pump Bearing Assembly Based on ANSYS

Abstract:

Finite element analysis has been done to analyze pump bearing assembly in interference assembly condition by ANSYS software. The press-in assembly environment has been simulated, and the maximum stress and maximum deformation of inner race have been analyzed. Studies show that with the increase of bearing size, the change law of maximum stress and maximum deformation does not single unidirectionally increase or decrease simply. At the same time, the interference value also influences the change law. So, in the bearing assembly tolerance selection the influence of the interference must be considered fully. The finite element analysis can guide the selection of fit tolerance.
