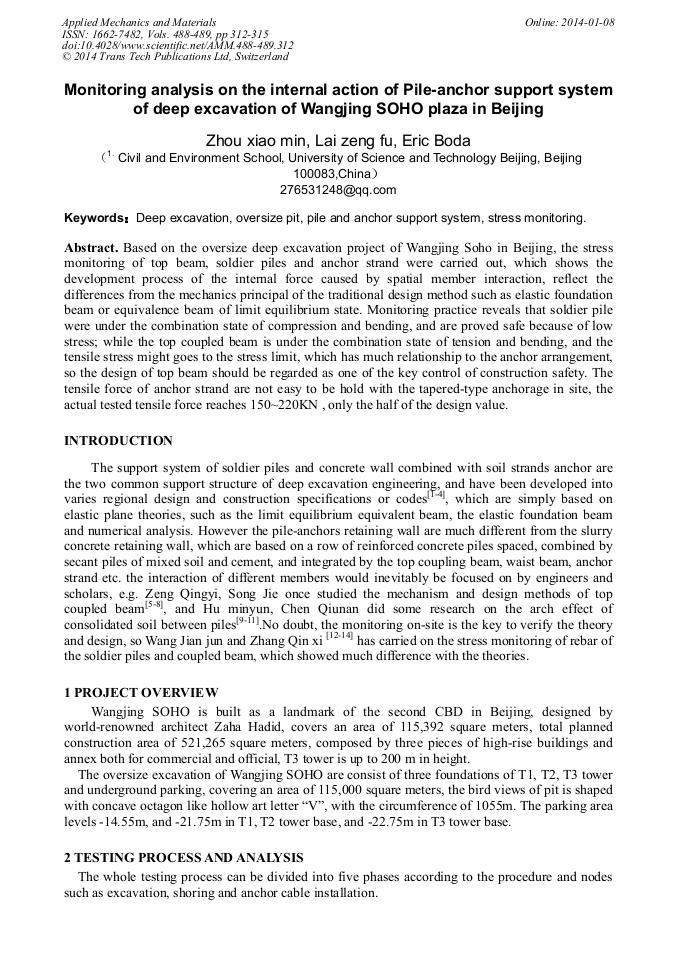

Monitoring Analysis on the Internal Action of Pile-Anchor Support System of Deep Excavation of Wangjing SOHO Plaza in Beijing

Abstract:

Based on the oversize deep excavation project of Wangjing Soho in Beijing, the stress monitoring of top beam, soldier piles and anchor strand were carried out, which shows the development process of the internal force caused by spatial member interaction, reflect the differences from the mechanics principal of the traditional design method such as elastic foundation beam or equivalence beam of limit equilibrium state. Monitoring practice reveals that soldier pile were under the combination state of compression and bending, and are proved safe because of low stress; while the top coupled beam is under the combination state of tension and bending, and the tensile stress might goes to the stress limit, which has much relationship to the anchor arrangement, so the design of top beam should be regarded as one of the key control of construction safety. The tensile force of anchor strand are not easy to be hold with the tapered-type anchorage in site, the actual tested tensile force reaches 150~220KN , only the half of the design value.

• Periodical: Applied Mechanics and Materials (Volumes 488-489)
• Pages: 312-315
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.488-489.312
• Online since: January 2014
• Authors: Xiao Min Zhou*, Zeng Fu Lai, Eric Boda
• Keywords: Anchor Support System, Deep Excavation, Oversize Pit, Pile System, Stress Monitoring

References

[1] GB50007-2002 Design code of Building Foundation specification [S] Beijing: China Building Industry Press, (2002).

[2] JGJ120-99 building foundation pit retaining technical regulations [S] Beijing: China Building Industry Press, (1999).

[3] Liu Hang, Hou Xueyuan. Excavation Engineering Manual [M]. Beijing: China Building Industry Press, (1999).

[4] Wei Xi-Cheng, Zhou Meiling ed Retaining Structures Design Manual [M] Beijing, China Building Industry Press, (2004).

[5] Zeng Qingyi Inquire Into mechanism and calculation of the support piles ring beam [J]. Geotechnical Engineering, 1995, (02).

[6] He Jianming, Bai Shiwei. Deep pit row pile - ring beam supporting structure synergy study [J]. Geotechnical Engineering, 1997, (03).

[7] high-Indian legislation. Consider the ring beam spatial effects Bracing Pile simplify the calculation of building structures [J]., 1998, (11).

[8] Song Jie soldier pile retaining the crown beam impact stiffness simplified calculation method to explore [J] Construction & Design, 2010, (06).

[9] Hu Minyun. RETAINING spacing between adjacent explore [J] Chinese Journal of Highway 2001, (02).

[10] Gu Haili, Wang Chenghua, Li Jianghong. Pitch-based anti-slide pile and pile retaining piles of soil arching effect [J]. Journal of Engineering Geology, 2004, (01).

[11] of Chen Qiunan, Zhou Yajun, Ma Xiaopeng foundation pit based on twin shear strength theory of soil arching effect retaining pile spacing analysis [J]. Hydrogeology and Engineering Geology, 2012 (04).

[12] Wang Jianjun, Huang Qiang. Deep excavation engineering support piles internal forces Experimental Study [J] building structure, 2006, 36 (10) : 5-8.

[13] Wang Jianjun, Shi Dongshan, Huang Qiang. Deep pit supporting works Chengguan Liang internal force field trials [J]. Architectural Science, 2006, 22 (4) : 43-46.

[14] Zhang Qin hi, Tong Dekay, Xiong Zongxi OCA Square slope the pile inner forces and bolt tension test and analysis [J]., Beijing University of Science and Technology, 2006, 32 (2) : 110-114.
