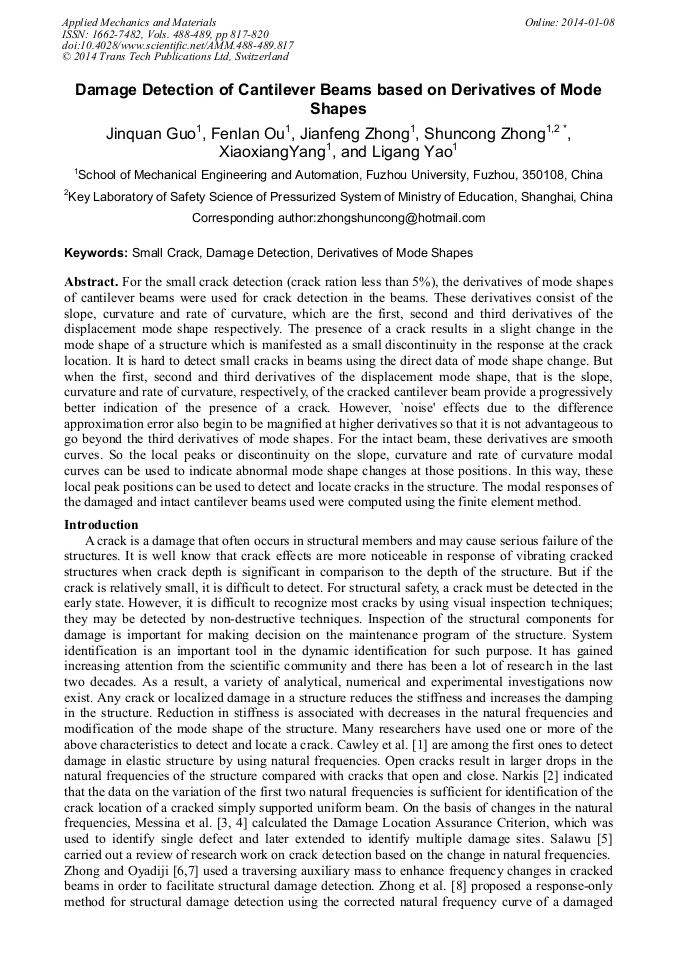

Damage Detection of Cantilever Beams Based on Derivatives of Mode Shapes

Abstract:

For the small crack detection (crack ration less than 5%), the derivatives of mode shapes of cantilever beams were used for crack detection in the beams. These derivatives consist of the slope, curvature and rate of curvature, which are the first, second and third derivatives of the displacement mode shape respectively. The presence of a crack results in a slight change in the mode shape of a structure which is manifested as a small discontinuity in the response at the crack location. It is hard to detect small cracks in beams using the direct data of mode shape change. But when the first, second and third derivatives of the displacement mode shape, that is the slope, curvature and rate of curvature, respectively, of the cracked cantilever beam provide a progressively better indication of the presence of a crack. However, `noise' effects due to the difference approximation error also begin to be magnified at higher derivatives so that it is not advantageous to go beyond the third derivatives of mode shapes. For the intact beam, these derivatives are smooth curves. So the local peaks or discontinuity on the slope, curvature and rate of curvature modal curves can be used to indicate abnormal mode shape changes at those positions. In this way, these local peak positions can be used to detect and locate cracks in the structure. The modal responses of the damaged and intact cantilever beams used were computed using the finite element method.

• Periodical: Applied Mechanics and Materials (Volumes 488-489)
• Pages: 817-820
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.488-489.817
• Online since: January 2014
• Authors: Jin Quan Guo, Fen Lan Ou, Jian Feng Zhong, Shun Cong Zhong*, Xiao Xiang Yang, Li Gang Yao
• Keywords: Damage Detection, Derivatives of Mode Shapes, Small Crack

References

[1] Adams RD, Cawley P, Pye CJ, Stone BJ. A vibration technique for non- non-destructively assessing the integrity of structures. Journal of Mechanical Engineering Science 1978; 20: 93–100.

DOI: 10.1243/jmes_jour_1978_020_016_02

[2] Narkis Y. Identification of crack location in vibrating simply supported beams. Journal of Sound and Vibration 1994; 172: 549–558.

DOI: 10.1006/jsvi.1994.1195

[3] Messina A, Jones IA. Damage detection and localization using natural frequency change. 14th International Modal Analysis Conference, Orlando, 1996; 67–76.

[4] Messina A, Williams EJ, Contursi T. Structural damage detection by sensitivity and statistical-based method. Journal of Sound and Vibration 1998; 216(5): 791–808.

DOI: 10.1006/jsvi.1998.1728

[5] Salawu OS. Detection of structural damage through changes in frequencies: a review. Engineering Structures 1997; 19: 718–723.

DOI: 10.1016/s0141-0296(96)00149-6

[6] Zhong S, Oyadiji SO. Identification of cracks in beams with auxiliary mass spatial probing by stationary wavelet transform. ASME Journal of Vibration and Acoustics 2008; 130, 041001: 1–14.

DOI: 10.1115/1.2891242

[7] Zhong S, Oyadiji SO. Analytical predictions of natural frequencies of cracked simply supported-beams with a stationary roving mass. Journal of Sound and Vibration, 2008; 311: 328–352.

DOI: 10.1016/j.jsv.2007.09.009

[8] Zhong S, Oyadiji SO, Ding K. Response-only method for damage detection of beam-like structures using high accuracy frequencies with auxiliary mass spatial probing. Journal of Sound and Vibration 2008; 311: 1075–1090.

DOI: 10.1016/j.jsv.2007.10.004

[9] Pandey AK, Biswas M. Damage detection in structures using change in flexibility. Journal of Sound and Vibration 1994; 169: 3–17.

DOI: 10.1006/jsvi.1994.1002

[10] Pandey AK, Biswas M, Samman MM. Damage detection from changes in curvature mode shapes. Journal of Sound and Vibration 1991; 145(2): 321–332.

DOI: 10.1016/0022-460x(91)90595-b

[11] Ratcliffe CP. Damage detection using a modified Laplacian operator on mode shape data. Journal of Sound and Vibration 1997; 204: 505–517.

DOI: 10.1006/jsvi.1997.0961

[12] Abdel WMM, Roeck GD. Damage detection in bridges using modal curvatures: application to a real damage scenario. Journal of Sound and Vibration 1999; 226(2): 217–235.

DOI: 10.1006/jsvi.1999.2295
