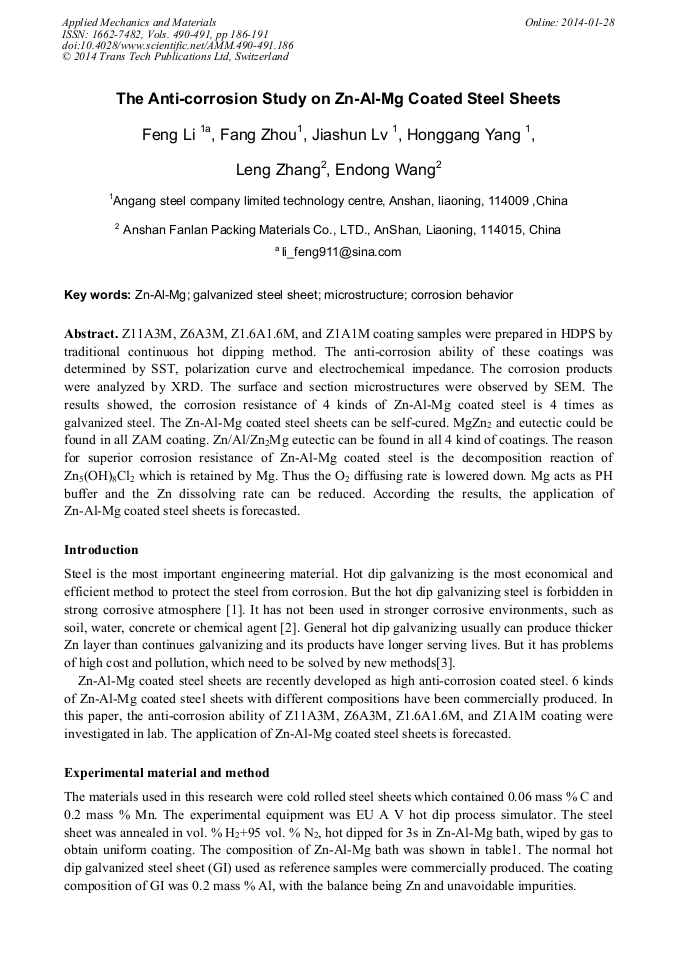

The Anti-Corrosion Study on Zn-Al-Mg Coated Steel Sheets

Abstract:

Z11A3M, Z6A3M, Z1.6A1.6M, and Z1A1M coating samples were prepared in HDPS by traditional continuous hot dipping method. The anti-corrosion ability of these coatings was determined by SST, polarization curve and electrochemical impedance. The corrosion products were analyzed by XRD. The surface and section microstructures were observed by SEM. The results showed, the corrosion resistance of 4 kinds of Zn-Al-Mg coated steel is 4 times as galvanized steel. The Zn-Al-Mg coated steel sheets can be self-cured. MgZn₂ and eutectic could be found in all ZAM coating. Zn/Al/Zn₂Mg eutectic can be found in all 4 kind of coatings. The reason for superior corrosion resistance of Zn-Al-Mg coated steel is the decomposition reaction of Zn₅(OH)₈Cl₂ which is retained by Mg. Thus the O₂ diffusing rate is lowered down. Mg acts as PH buffer and the Zn dissolving rate can be reduced. According the results, the application of Zn-Al-Mg coated steel sheets is forecasted.

• Periodical: Applied Mechanics and Materials (Volumes 490-491)
• Pages: 186-191
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.490-491.186
• Online since: January 2014
• Authors: Feng Li*, Fang Zhou, Jia Shun Lv, Hong Gang Yang, Leng Zhang, En Dong Wang
• Keywords: Corrosion Behavior, Galvanized Steel Sheet, Microstructure, Zn-Al-Mg

References

[1] Changzheng Xu. Analysis of foreign code for design of cold formed light gauge steel housing [J]. Housing science, 2012, pp.21-25.

[2] Xiaoge Zhang. Efficiency of corrosion protection of steel by galvanizing and prospect for new coating development [J]. Journal of Chinese Society for Corrosion and Protection, 2010, Vol. 40 (2), pp.166-170.

[3] Luru Chen. The development of steel structure industry in China and the demand to hot dip zinc galvanized steel[A]. 2009 International lead and zinc annual conference [C]. Beijing, 2009, pp.39-48.

[4] Feng Li, Jiashun Lv, Honggang Yang etc. Research on ZnAlMg Coated Steel [J]. Steel Rolling, 2013, Vol. 30 (2), pp.45-51.

[5] Feng Li, Jiashun Lv, Honggang Yang etc. The Corrosion Behavior for Zn-Al-Mg Coating in NaCl System [J]. China Surface Engineering, 2011, Vol. 24 (4), pp.25-29.

[6] Peggy Schouller-Guinet, Christian Allely, Polina Volovitch. ZnAlMg: An innovative metallic coating that offers protection in the harshest environments[a]. Galvatech'11, 8th International Conference on Zinc and Zinc Alloy Coated Steel Sheet[C]. Genova: IZA, 2011, p.95.

[7] P. Volovitch, C. Allely, K. Ogle, Understanding corrosion via corrosion product characterization: I. Case study of the role of Mg alloying in Zn–Mg coating on steel [J], Corrosion Science 51 (2009), p.1251–1262.

DOI: 10.1016/j.corsci.2009.03.005

[8] Arcelormittal：Detailed Information by Product [OL]，The Product Introduction of Arcelormittal, http: /www. arcelormittal. com/fce.

[9] Kohei Ueda, Akira Takehashi, Yuji Kubo. Investigation of corrosion resistance of pre-painted Zn-11%Al-3%Mg-0. 2%Si alloy coated steel sheet through outdoor exposure test in Okinawa[A]. Galvatech'11, 8th International Conference on Zinc and Zinc Alloy Coated Steel Sheet[C]. Genova: IZA, 2011, p.54.

DOI: 10.5006/1.3284884

[10] Rajiv P. Edavan, Richard Kopinski. Corrosion resistance of painted zinc alloy coated steels[J]. Corrosion Science. 2009, Vol. 51, pp.2429-2442.

DOI: 10.1016/j.corsci.2009.06.028
