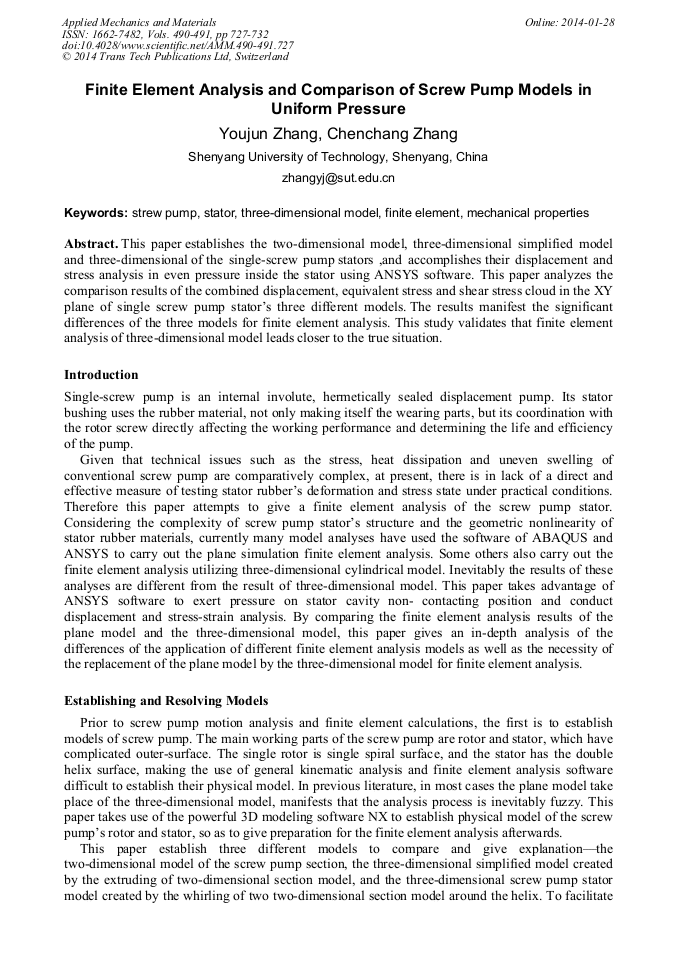

Finite Element Analysis and Comparison of Screw Pump Models in Uniform Pressure

Abstract:

This paper establishes the two-dimensional model, three-dimensional simplified model and three-dimensional of the single-screw pump stators ,and accomplishes their displacement and stress analysis in even pressure inside the stator using ANSYS software. This paper analyzes the comparison results of the combined displacement, equivalent stress and shear stress cloud in the XY plane of single screw pump stator’s three different models. The results manifest the significant differences of the three models for finite element analysis. This study validates that finite element analysis of three-dimensional model leads closer to the true situation.

• Periodical: Applied Mechanics and Materials (Volumes 490-491)
• Pages: 727-732
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.490-491.727
• Online since: January 2014
• Authors: You Jun Zhang, Chen Chang Zhang
• Keywords: Finite Element, Mechanical Property, Stator, Strew Pump, Three-Dimensional Model

References

[1] Zhang Jin, Zhang Shicheng. Strategy for Regular Strew Pump Stator's Finite Element Resolving [J]. Mechanical Engineering，2004, 40(5): 189~193.

[2] Zhao Ning, Li Bihao, Qu Wentao, etc. Screw Rotor Dynamics Performance Finite Element Analysis [J]. Modern Manufacturing Engineering, 2006, 3: 37~39.

[3] Zhang Hongcai, etc. ANSYS14. 0 Theory Analysis and Engineering Application Examples [M]. Beijing: China Machine Press, 2012. 10.
