Research on Separation of PD Signals Originated from Different Sources in Substation

Abstract:

The existing system of partial discharge location in substation utilizes Omni-directional UHF sensors array which can achieve single-source partial discharge source location. But for multi-source UHF partial discharge signals, the system is inaccurate and can’t distinguish types of partial discharge. This paper proposed to the method multi-source partial discharge signals acquisition and separation based on different characteristics of different types of UHF partial discharge signals in the time domain and frequency domain. Through continuously collected and stored UHF partial discharge pulse waveform, the sampling pulse sequence is analyzed in time-frequency domain to extract characteristic parameters. And then using fuzzy cluster, it can distinguish multi-source UHF partial discharge signals and discharge signals generated by the interference to achieve multi-source UHF partial discharge signals location. And it can lay the foundation of identification of the type of partial discharge. Field tests show that the method is feasible.

You might also be interested in these eBooks

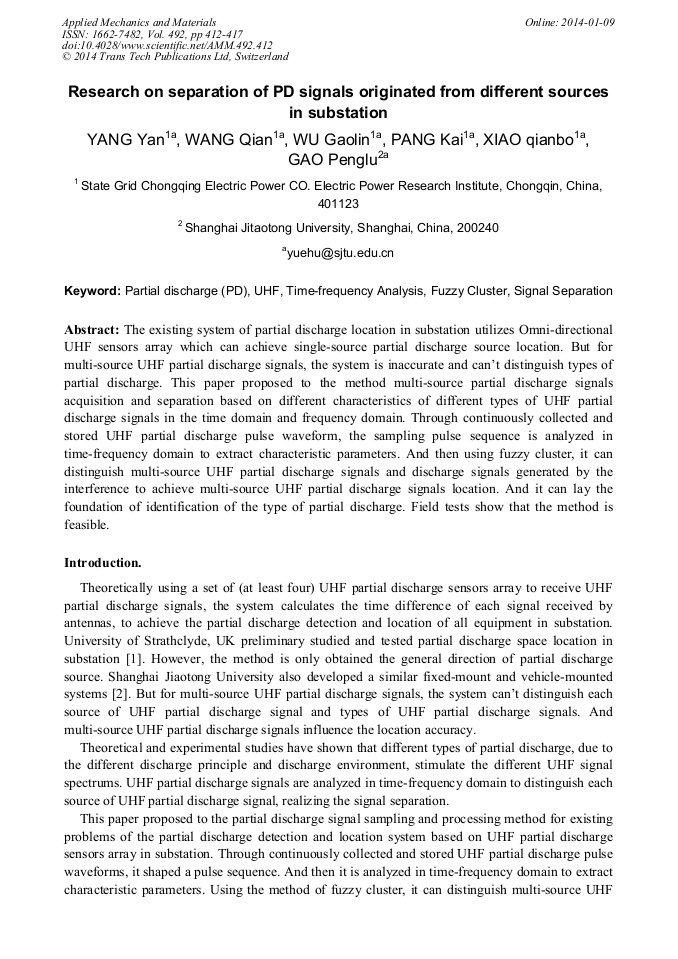

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 492)

Pages:

412-417

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.492.412

Citation:

Cite this paper

Online since:

January 2014

Authors:

Yan Yang, Qian Wang, Gao Lin Wu, Kai Pang, Qian Bo Xiao, Peng Lu Gao

Keywords:

Fuzzy Cluster, Partial Discharge (PD), Signal Separation, Time-Frequency Analysis, UHF

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] I.E. Portugues, P.J. Moore, Ian A. Glover . RF-Based Partial Discharge Early Warning System for Air-Insulated Substations. IEEE Trans. on Power Delivery, 2009, 24(1): 20-28.

DOI: 10.1109/tpwrd.2008.2005464

Google Scholar

[2] YANG Yan, TANG Lin, HU Yue, , et al. A Study on the Mobile Partial Discharge Locating System [C]/Power and Energy Engineering Conference (APPEEC), 2013 Asia-Pacific. IEEE, 2013(5): 589-592.

DOI: 10.4236/epe.2013.54b113

Google Scholar

[3] Miao P, Li X, Hou H, et al. Location Algorithm for Partial Discharge Based on Radio Frequency (RF) Antenna Array[C]/Power and Energy Engineering Conference (APPEEC), 2012 Asia-Pacific. IEEE, 2012: 1-4.

DOI: 10.1109/appeec.2012.6307662

Google Scholar

[4] Cavallini, A.; Contin, A.; Montanari, G.C.; Puletti, F.; , Advanced PD inference in on-field measurements. I. Noise rejection, Dielectrics and Electrical Insulation, IEEE Transactions on , vol. 10, no. 2, pp.216-224, April (2003).

DOI: 10.1109/tdei.2003.1194102

Google Scholar
