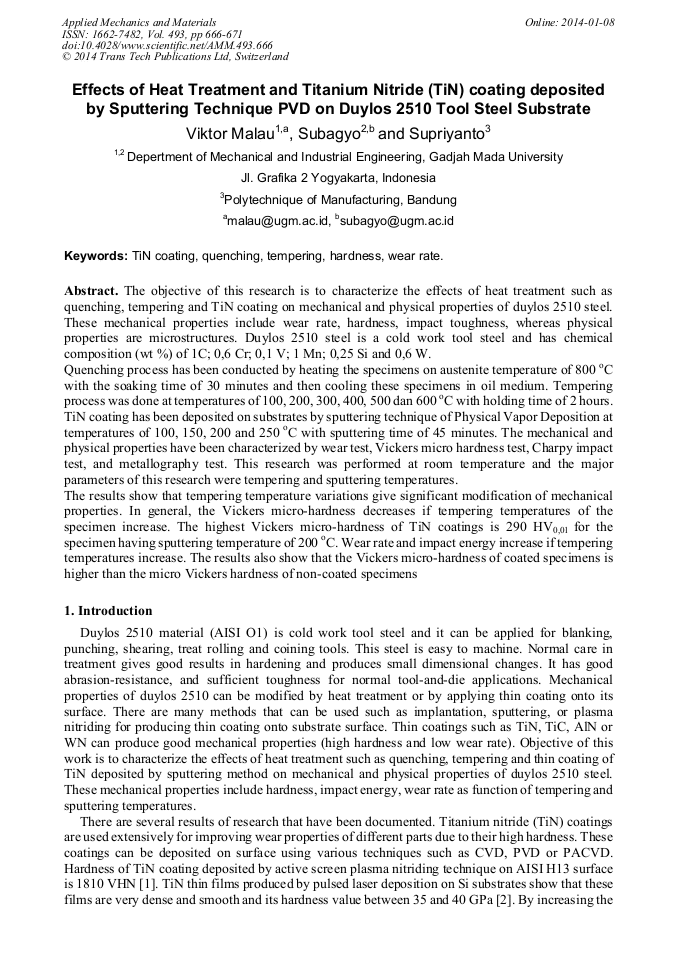

Effects of Heat Treatment and Titanium Nitride (TiN) Coating Deposited by Sputtering Technique PVD on Duylos 2510 Tool Steel Substrate

Abstract:

The objective of this research is to characterize the effects of heat treatment such as quenching, tempering and TiN coating on mechanical and physical properties of duylos 2510 steel. These mechanical properties include wear rate, hardness, impact toughness, whereas physical properties are microstructures. Duylos 2510 steel is a cold work tool steel and has chemical composition (wt %) of 1C; 0,6 Cr; 0,1 V; 1 Mn; 0,25 Si and 0,6 W.Quenching process has been conducted by heating the specimens on austenite temperature of 800 °C with the soaking time of 30 minutes and then cooling these specimens in oil medium. Tempering process was done at temperatures of 100, 200, 300, 400, 500 dan 600 °C with holding time of 2 hours.TiN coating has been deposited on substrates by sputtering technique of Physical Vapor Deposition at temperatures of 100, 150, 200 and 250 °C with sputtering time of 45 minutes. The mechanical and physical properties have been characterized by wear test, Vickers micro hardness test, Charpy impact test, and metallography test. This research was performed at room temperature and the major parameters of this research were tempering and sputtering temperatures.The results show that tempering temperature variations give significant modification of mechanical properties. In general, the Vickers micro-hardness decreases if tempering temperatures of the specimen increase. The highest Vickers micro-hardness of TiN coatings is 290 HV_0,01 for the specimen having sputtering temperature of 200 °C. Wear rate and impact energy increase if tempering temperatures increase. The results also show that the Vickers micro-hardness of coated specimens is higher than the micro Vickers hardness of non-coated specimens

• Periodical: Applied Mechanics and Materials (Volume 493)
• Pages: 666-671
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.493.666
• Online since: January 2014
• Authors: Viktor Malau, Subagyo Subagyo, Supriyanto Supriyanto
• Keywords: Hardness, Quenching, Tempering, TiN Coating, Wear Rate

References

[1] M. Raoufi, Sh. Mirdamadi, F. Mahboubi, Sh. Ahangarani, M. S. Mahdipoor, H. Elmkhah, Effect of active screen plasma nitriding pretreatment on wear behavior of TiN coating deposited by PACVD technique, Applied Surface Science, Volume 258, Issue 20, (2012).

DOI: 10.1016/j.apsusc.2012.04.041

[2] D. Cracium, N. Stefan, G. Socol, G. Dorcioman, E. McCumiskey, M. Hanna, C. R. Taylor, G. Bourne, F. Lambers, K. Siebein, V. Cracium, Very hard TiN thin films grown by pulsed laser deposition, (2012).

DOI: 10.1016/j.apsusc.2011.11.128

[3] A. Yazdani, M. Soltanieh, H. Aghajani, S. Rastegari, A new method for deposition of nano sized titanium nitride on steels, Vacuum, Volume 86, Issue 2, (2011), pp.131-139.

DOI: 10.1016/j.vacuum.2011.04.020

[4] M. Mohrbacher, b. Blanpain, J. P. Celis, J. R. Roos, L. Stals, M. van Stappen, Oxidational wear of TiN coatings on tool steel and nitrided tool steel in unlubricated fretting, Wear, Volume 188, Issue 1-2, (1995), pp.130-137.

DOI: 10.1016/0043-1648(95)06637-3

[5] R. H. Oskouei, R. N. Ibrahim, An investigation of the fatigue behavior of Al 7075-T6 coated with titanium nitride using physical vapor deposition process, Materials & Design, Volume 39, (2012), pp.294-302.

DOI: 10.1016/j.matdes.2012.02.056

[6] A. Devia, V. Benavides, E. Restrepo, D.F. Arias, R. Ospina, Influence of substrate temperature on structural properties of TiN/TiC bilayers produced by pulsed arc techniques, Vacuum, Volume 81, Issue 3, (2006), pp.378-384.

DOI: 10.1016/j.vacuum.2006.06.006

[7] D.M. Devia, E. Restrepo-Parra, P.J. Arango, Comparative study of titanium carbide and nitride coatings grown by cathodic vacuum arc techniques, Applied Surface Science, Volume 258, Issue 3, (2011), pp.1164-1174.

DOI: 10.1016/j.apsusc.2011.09.061

[8] L. Hultman, Thermal study of nitride thin films, Vacuum, Volume 57, Issue 1, (2000), pp.1-30.

[9] D. Martinez-Martinez, C. López-Cartes, A. Fernández, J.C. Sanchez-López, Comparative performance of nanocomposite coatings of TiC or TiN dispersed in a-C matrixes, Surface and Coatings Technology, Volume 203, Issue 5-7, (2008), pp.756-760.

DOI: 10.1016/j.surfcoat.2008.08.064

[10] R.F. Zhang, S.H. Sheng, S. Veprek, Origin of Different Plastic Resistance of Transition Metal Nitrides and Carbides: Stiffer yet Softer, Scripta Materialia, (2013).

DOI: 10.1016/j.scriptamat.2013.01.040

[11] P. Huber, D. Manova, S. Mandl, B. Rauschenbach, Formation of TiN, TiC and TiCN by metal plasma immersion ion implantation and deposition, Surface and Coatings Technology, Volumes 174-175, (2003), pp.1243-1247.

DOI: 10.1016/s0257-8972(03)00458-4

[12] P.C. Yashar, W.D. Sproul, Nanometer scale multilayered hard coating, Vacuum, Volume 55, Issues 3-4, (1999), pp.179-190.

DOI: 10.1016/s0042-207x(99)00148-7

[13] B. Subramanian, C.V. Muraleedharan, R. Ananthakumar, M. Jayachandran, A comparative study of titanium nitride (TiN), titanium oxy nitride (TiON) and titanium aluminium nitride (TiAlN), as surface coatings for bio implants.

DOI: 10.1016/j.surfcoat.2011.05.004

[14] K. Bewilogua, R. Wittorf, H. Thomsen, M. Weber, DLC based coating prepared by d. c. magnetron sputtering, Thin Solid Films 447-448, (2004), pp.142-147.

DOI: 10.1016/s0040-6090(03)01088-5

[15] Ogoshi's Manual Book, 1985, High Speed Universal Wear Testing Machine (Type OAT-U), Tokyo Testing Machine MFG Co Ltd.
