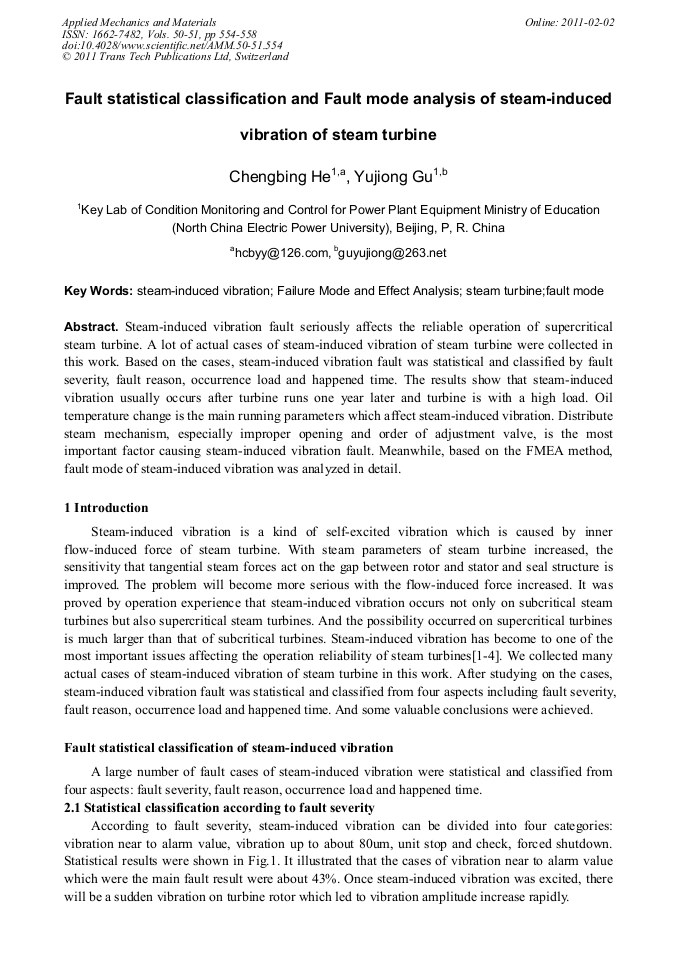

Fault Statistical Classification and Fault Mode Analysis of Steam-Induced Vibration of Steam Turbine

Abstract:

Steam-induced vibration fault seriously affects the reliable operation of supercritical steam turbine. A lot of actual cases of steam-induced vibration of steam turbine were collected in this work. Based on the cases, steam-induced vibration fault was statistical and classified by fault severity, fault reason, occurrence load and happened time. The results show that steam-induced vibration usually occurs after turbine runs one year later and turbine is with a high load. Oil temperature change is the main running parameters which affect steam-induced vibration. Distribute steam mechanism, especially improper opening and order of adjustment valve, is the most important factor causing steam-induced vibration fault. Meanwhile, based on the FMEA method, fault mode of steam-induced vibration was analyzed in detail.

• Periodical: Applied Mechanics and Materials (Volumes 50-51)
• Pages: 554-558
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.50-51.554
• Online since: February 2011
• Authors: Cheng Bing He, Yu Jiong Gu
• Keywords: Effect Analysis, Failure Mode, Fault Mode, Steam Turbine, Steam-Induced Vibration

References

[1] A. Muszynska. Whirl and whip-rotor/bearing stability problems[J]. Journal of Sound and Vibration, 1986, 110: 3-7.

DOI: 10.1016/s0022-460x(86)80146-8

[2] Alford J S. Protecting turbomachinery from self-excited whirl[J]. ASME Journal of Engineering for Power, 1965(5): 333～344.

DOI: 10.1115/1.3678273

[3] Luo Mingwen, Ding Xuejun, Yang Yanlei. The Status Quo and Prospect Concerning a Study on Steam Flow Excitations in Large-sized Steam Turbines[J]. Journal of Engineering for Thermal Energy and Power, 2006, 21(6): 551-555.

[4] Heung Soo Kim, Maenghyo Cho, Seung Jin Song. Stability analysis of a turbine rotor system with alford force[J]. Journal of Sound and Vibration, 2003, 260: 167-182.

DOI: 10.1016/s0022-460x(02)00926-4

[5] Gu Yujiong. Theoretics and technology of state maintenance of power plant equipment[M]. Bei Jing: Chinese Electric Power Press, (2009).
