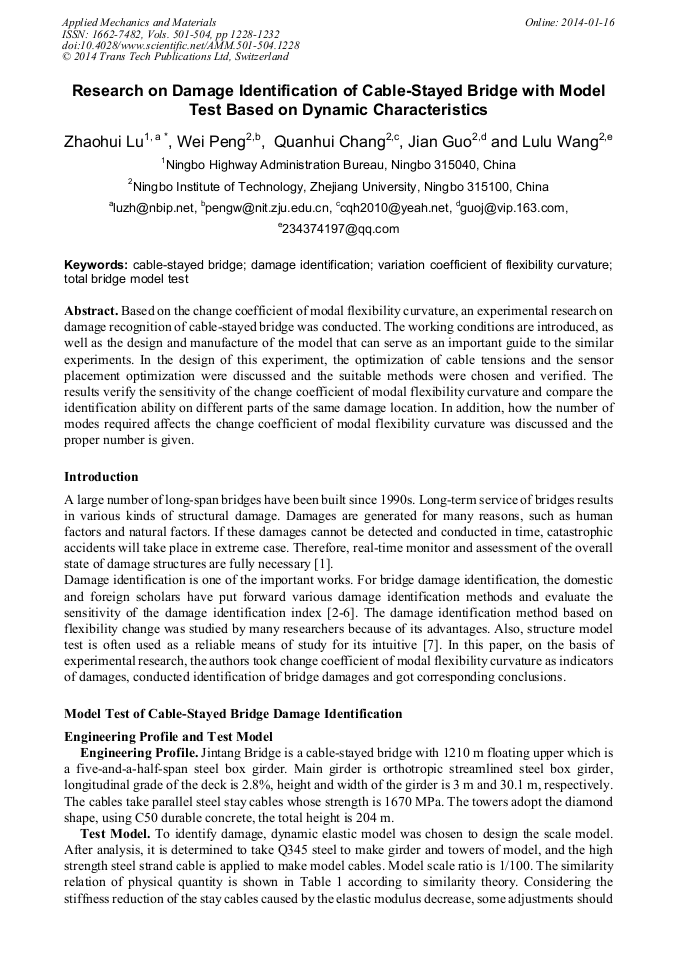

Research on Damage Identification of Cable-Stayed Bridge with Model Test Based on Dynamic Characteristics

Abstract:

Based on the change coefficient of modal flexibility curvature, an experimental research on damage recognition of cable-stayed bridge was conducted. The working conditions are introduced, as well as the design and manufacture of the model that can serve as an important guide to the similar experiments. In the design of this experiment, the optimization of cable tensions and the sensor placement optimization were discussed and the suitable methods were chosen and verified. The results verify the sensitivity of the change coefficient of modal flexibility curvature and compare the identification ability on different parts of the same damage location. In addition, how the number of modes required affects the change coefficient of modal flexibility curvature was discussed and the proper number is given.

• Periodical: Applied Mechanics and Materials (Volumes 501-504)
• Pages: 1228-1232
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.501-504.1228
• Online since: January 2014
• Authors: Zhao Hui Lu*, Wei Peng, Quan Hui Chang, Jian Guo, Lu Lu Wang
• Keywords: Cable-Stayed Bridge, Damage Identification, Total Bridge Model Test, Variation Coefficient of Flexibility Curvature

References

[1] Wei Peng, Zhixiang Zha, Sensitivity study on damage indexes of cable-stayed bridges. Advanced in Civil Engineering and Architecture, 243-249 (2011) 1573-1577.

DOI: 10.4028/www.scientific.net/amr.243-249.1573

[2] Muyu Liu, Wei Yuan, Research on safety assessment of long-span concrete-filled steel tubes arch bridge based on fuzzy-neural network. China Journal of Highway and Transport, 17 (2004 56-58.

[3] Tianyu Xiang, Renda Zhao, Haibo Liu, Safety assessment of prestressed concrete continuous beam based on static test data. China Civil Engineering Journal. 36 (2003) 79-82.

[4] C. Farhat, F.M. Hemez, Updating finite element dynamic models using an element by element sensitivity methodology. AIAA Journa1, 31 (1993) 1702-1711.

DOI: 10.2514/3.11833

[5] K. F A1vin, Finite element model update via Bayesian estimation and minimization of dynamic residuals. AIAA Journa1. 35 (1997) 879-886.

DOI: 10.2514/3.13603

[6] J.M. W Brownjohn, PQ Xia, Dynamic assessment of curved cable-stayed bridge by model updating. Journal of Structural Engineering. ASCE, 126 (2000) 252-260.

DOI: 10.1061/(asce)0733-9445(2000)126:2(252)

[7] Xiaoyan Ma: Dynamic and time-historical analysis on model of long-span cable-stayed bridge. Master's degree thesis of Changsha University of Science and Technology (2004).

[8] Junjie Yang, Similarity Theory and Structure Model Test. Wuhan University of Technology, Wuhan, (2000).

[9] Donghuang Yan, Zhongchu Tian, Changsong Chen, et al: Static and dynamic model design of the total bridge of Yueyang Tongting three Tower cable-stayed bridge. Journal of Changsha Communication University (1999).

[10] Wei Peng, Fan Li, Zhixiang Zha: Application study on optimal sensor placement technology of cable-stayed bridge. Journal of Civil, Architectural & Environmental Engineering, 34 (2012) 13-18.
