Application of Frequency-Voltage Converter Chip in the Vehicle Data Acquisition

Abstract:

The speed is the most common frequency signal among a lot of the automotive signal which may be collected, Acquisition for frequency signal generally use the counter input capture. The number of sampling rate not only depends on clock frequency counter, but mainly the number of the frequency of the signal itself, it is bound to take a very long time to collect speed signal when the speed is very low. For most of the data acquisition card, which usually adopt asynchronous acquisition between various channels, that is, only one channel can collect data at any time, so for the multi-signal acquisition system which has a high requirement for real-time, it is undue to collect directly low frequency signal. This paper adopt method of frequency-voltage converter to change the frequency signal to analog signal and collect data, thus, which can greatly improve the system's sampling rate.

You might also be interested in these eBooks

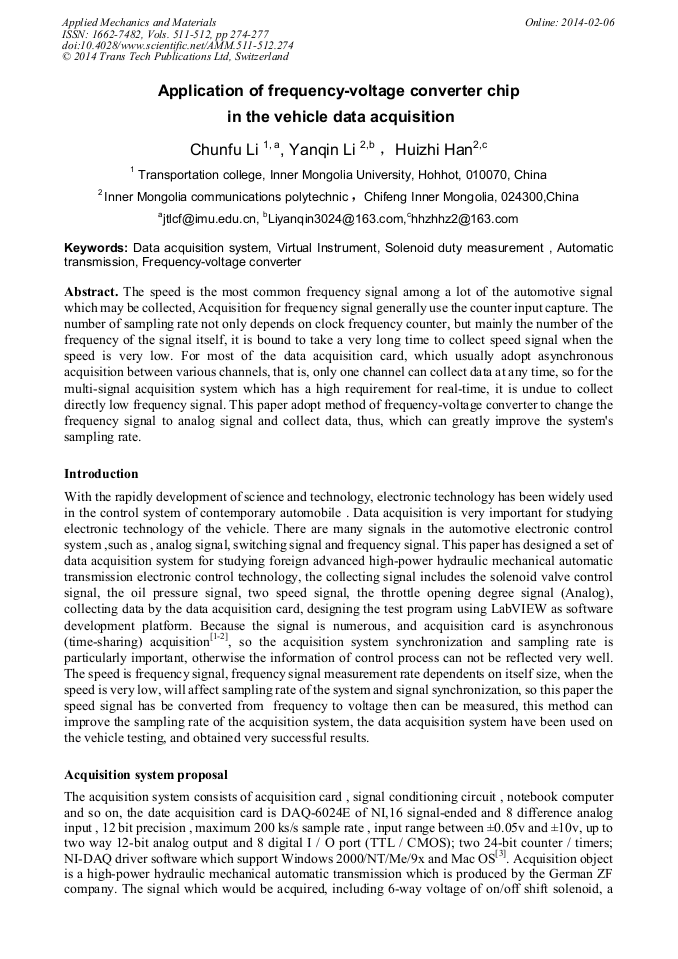

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 511-512)

Pages:

274-277

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.511-512.274

Citation:

Cite this paper

Online since:

February 2014

Authors:

Chun Fu Li*, Yan Qin Li, Hui Zhi Han

Keywords:

Automatic Transmission, Data Acquisition System, Frequency-Voltage Converter, Solenoid Duty Measurement, Virtual Instrument (VI)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Yang Leping, Li Haitao, Xiao Kai. Virtual instrument technology probability [M]. Bei Jing: electronics industry press, 2003. Na-tional Semiconductor.

Google Scholar

[2] Zhang Yi, Zhou Shaolei, Yang Xiuxia,. virtual instrumentation analysis and application[M]. Bei Jing: machines, (2004).

Google Scholar

[3] NI6023E/6024E/6025E Family Specificati-ons. National Instruments Corporation, 2003–(2005).

Google Scholar

[4] Corporation. LM2907/LM2917 Frequency to Voltage Converter data sheet. 2000, 7.

Google Scholar

[5] Qi Yongli, Lu Yunfeng, Liu Ming. LM2907 Frequency to Voltage Converter Application and principle[J]. Overseas electronics component, 2005, 5.

Google Scholar

[6] Li Pengfei ; Li Weining ; Ying Zhangjun. Principle and Application of Two Kind of Speed Measuring Circuit[J]. Marine Electric & Electronic Technology, 2006(2), 50～52.

Google Scholar
