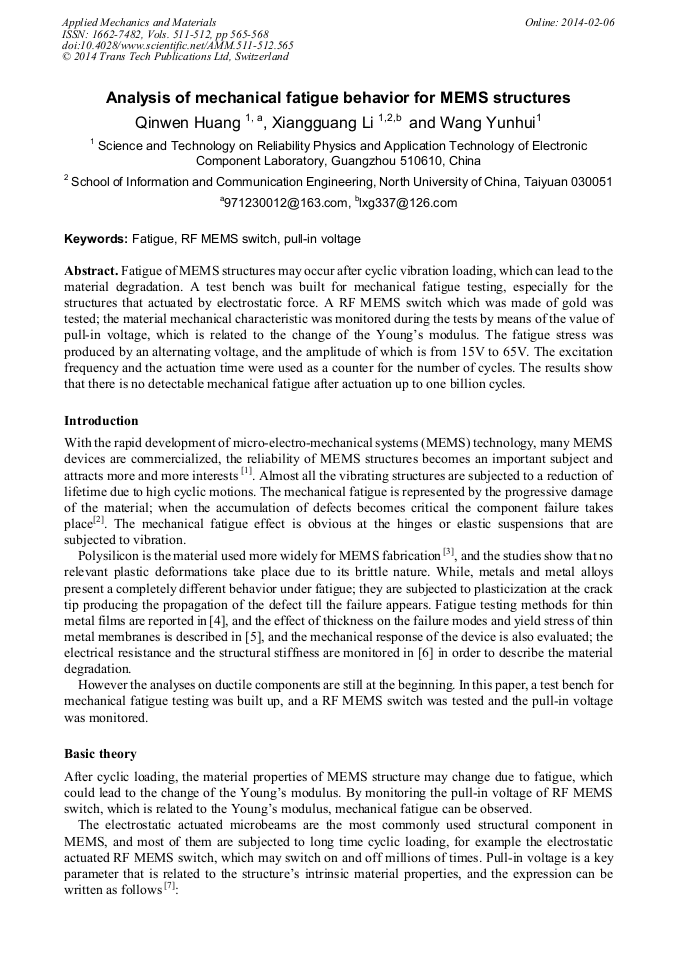

Analysis of Mechanical Fatigue Behavior for MEMS Structures

Abstract:

Fatigue of MEMS structures may occur after cyclic vibration loading, which can lead to the material degradation. A test bench was built for mechanical fatigue testing, especially for the structures that actuated by electrostatic force. A RF MEMS switch which was made of gold was tested; the material mechanical characteristic was monitored during the tests by means of the value of pull-in voltage, which is related to the change of the Youngs modulus. The fatigue stress was produced by an alternating voltage, and the amplitude of which is from 15V to 65V. The excitation frequency and the actuation time were used as a counter for the number of cycles. The results show that there is no detectable mechanical fatigue after actuation up to one billion cycles.

• Periodical: Applied Mechanics and Materials (Volumes 511-512)
• Pages: 565-568
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.511-512.565
• Online since: February 2014
• Authors: Qin Wen Huang*, Xiang Guang Li, Yun Hui Wang
• Keywords: Fatigue, Pull-In Voltage, Rf MEMS Switch

References

[1] Muhlstein, C. L., R. T. Howe, and R. O. Ritchie. Fatigue of polycrystalline silicon for microelectromechanical system applications: crack growth and stability under resonant loading conditions., Mechanics of Materials 36. 1 (2004): 13-33.

DOI: 10.1016/s0167-6636(03)00028-0

[2] De Pasquale, G., A. Soma, and A. Ballestra. Mechanical fatigue analysis of gold microbeams for RF-MEMS applications by pull-in voltage monitoring., Analog Integrated Circuits and Signal Processing 61. 3 (2009): 215-222.

DOI: 10.1007/s10470-009-9295-9

[3] Muhlstein, C. L., E. A. Stach, and R. O. Ritchie. Mechanism of fatigue in micron-scale films of polycrystalline silicon for microelectromechanical systems., Applied Physics Letters 80. 9 (2002): 1532-1534.

DOI: 10.1063/1.1455142

[4] Zhang, G. P., et al. Fatigue and thermal fatigue damage analysis of thin metal films., Microelectronics Reliability 47. 12 (2007).

DOI: 10.1016/j.microrel.2007.04.005

[5] Espinosa, H. D., and B. C. Prorok. Size effects on the mechanical behavior of gold thin films., Journal of Materials Science 38. 20 (2003): 4125-4128.

[6] Millet, O., et al. An original methodology to assess fatigue behavior in RF MEMS devices., (2004).

[7] Osterberg, Peter M., and Stephen D. Senturia. M-TEST: a test chip for MEMS material property measurement using electrostatically actuated test structures., Microelectromechanical Systems, Journal of 6. 2 (1997): 107-118.

DOI: 10.1109/84.585788

[8] Timoshenko, Stephen, and Sergius Woinowsky-Krieger. Theory of plates and shells. Vol. 2. New York: McGraw-hill, (1959).
