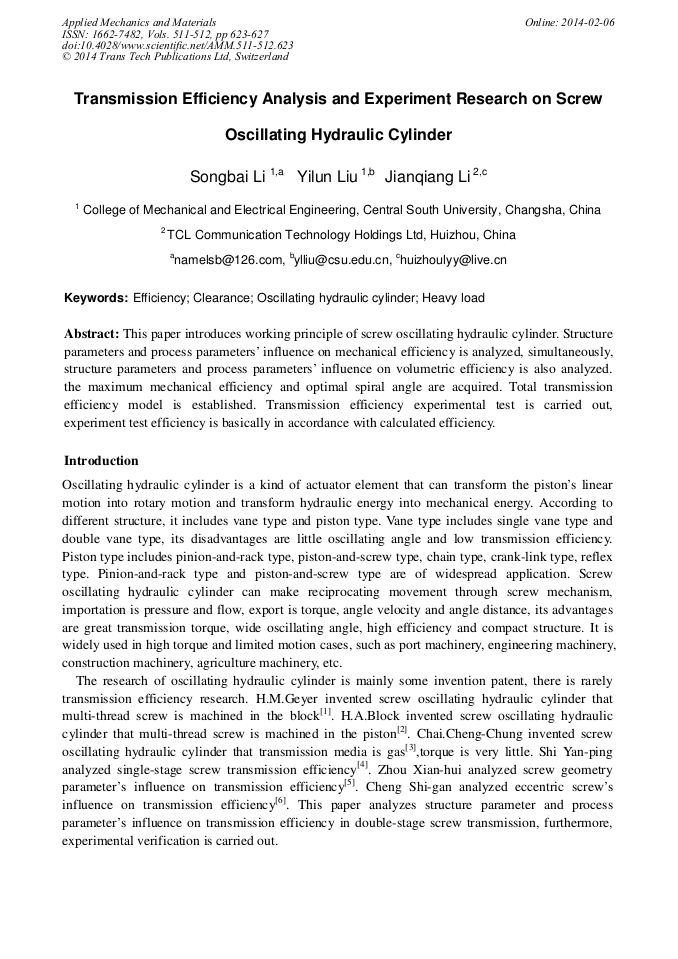

Transmission Efficiency Analysis and Experiment Research on Screw Oscillating Hydraulic Cylinder

Abstract:

This paper introduces working principle of screw oscillating hydraulic cylinder. Structure parameters and process parameters influence on mechanical efficiency is analyzed, simultaneously, structure parameters and process parameters influence on volumetric efficiency is also analyzed. the maximum mechanical efficiency and optimal spiral angle are acquired. Total transmission efficiency model is established. Transmission efficiency experimental test is carried out, experiment test efficiency is basically in accordance with calculated efficiency.
