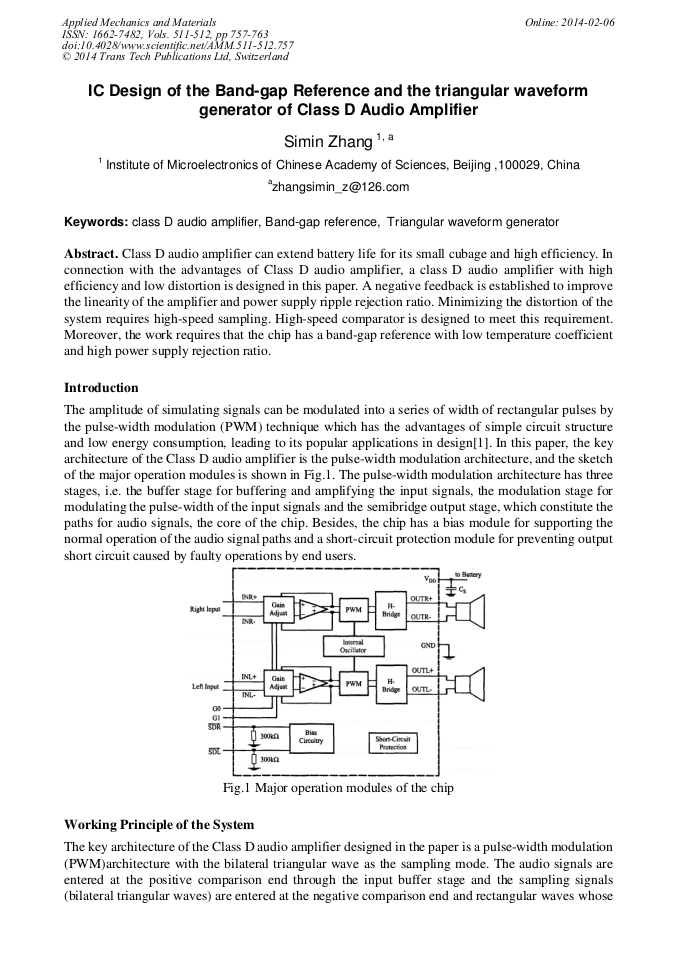

IC Design of the Band-Gap Reference and the Triangular Waveform Generator of Class D Audio Amplifier

Abstract:

Class D audio amplifier can extend battery life for its small cubage and high efficiency. In connection with the advantages of Class D audio amplifier, a class D audio amplifier with high efficiency and low distortion is designed in this paper. A negative feedback is established to improve the linearity of the amplifier and power supply ripple rejection ratio. Minimizing the distortion of the system requires high-speed sampling. High-speed comparator is designed to meet this requirement. Moreover, the work requires that the chip has a band-gap reference with low temperature coefficient and high power supply rejection ratio.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 511-512)

Pages:

757-763

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.511-512.757

Citation:

Cite this paper

Online since:

February 2014

Authors:

Si Min Zhang

Keywords:

Band-Gap Reference, Class D Audio Amplifier, Triangular Waveform Generator

Export:

RIS, BibTeX
