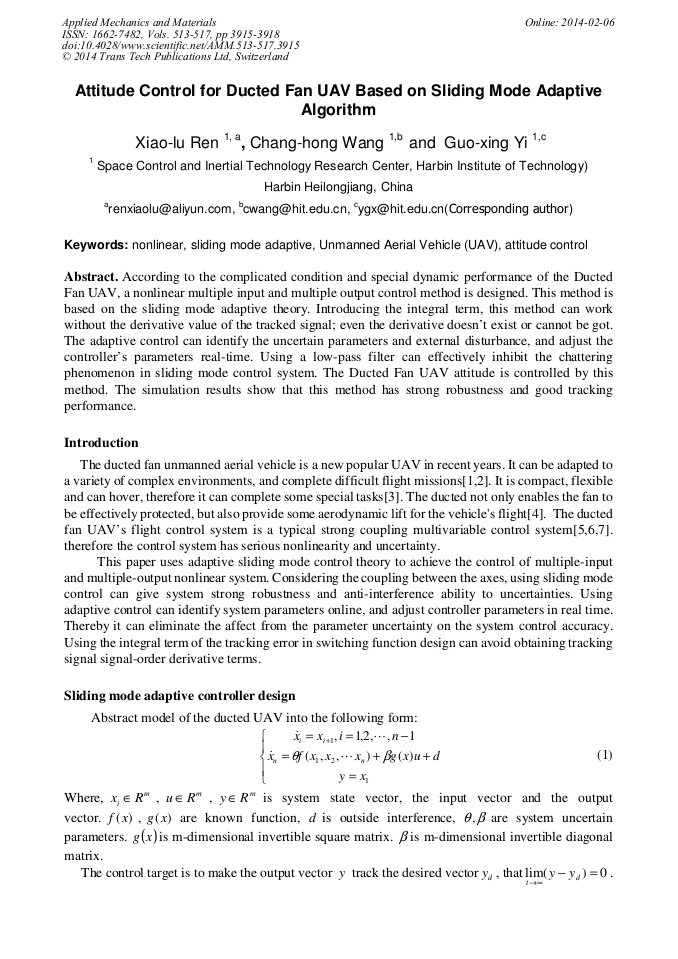

Attitude Control for Ducted Fan UAV Based on Sliding Mode Adaptive Algorithm

Abstract:

According to the complicated condition and special dynamic performance of the Ducted Fan UAV, a nonlinear multiple input and multiple output control method is designed. This method is based on the sliding mode adaptive theory. Introducing the integral term, this method can work without the derivative value of the tracked signal; even the derivative doesnt exist or cannot be got. The adaptive control can identify the uncertain parameters and external disturbance, and adjust the controllers parameters real-time. Using a low-pass filter can effectively inhibit the chattering phenomenon in sliding mode control system. The Ducted Fan UAV attitude is controlled by this method. The simulation results show that this method has strong robustness and good tracking performance.

• Periodical: Applied Mechanics and Materials (Volumes 513-517)
• Pages: 3915-3918
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.513-517.3915
• Online since: February 2014
• Authors: Xiao Lu Ren, Chang Hong Wang, Guo Xing Yi*
• Keywords: Attitude Control, Nonlinear, Sliding Mode Adaptive, Unmanned Aerial Vehicle (UAV)

References

[1] Paul G．Fahistrom. Introduction to UAV Systems Second Edition. UAV Systems, Inc., COLUMBIA , MARYLAND, USA, 2003: 158-204.

[2] Akturk, A., A. Shavalikul, and C. Canci, PIV Measurements and Computational Study of a 5-inch Ducted Fan for VTOL UAV Applications, AIAA Paper 2009-332, Proceedings of 47th AIAA Aerospace Sciences Meeting, Orlando, Florida, 5-8 January (2009).

DOI: 10.2514/6.2009-332

[3] Daniel N. Salluce. Comprehensive System Identification of Ducted Fan UAVs. California Polytechnic State University. 2004: 17~52.

[4] Wang Haiming, Wang Huaming, A General Summarize for the Ducted Fan Computational Methods, Institute of Helicopter Technology, Nanjing University of Aeronautics and Astronautics.

[5] Dr J T Platts. Applicability of STANAG-4586 to Future Unmanned Aerial Vehicle. AIAA 2007 Conference and Exhibit 7-10 May 2007, Rohnert Park, California: 2-5.

DOI: 10.2514/6.2007-2753

[6] Akturk, A., A. Shavalikul, and C. Canci, PIV Measurements and Computational Study of a 5-inch Ducted Fan for VTOL UAV Applications, AIAA Paper 2009-332, Proceedings of 47th AIAA Aerospace Sciences Meeting, Orlando, Florida, 5-8 January (2009).

DOI: 10.2514/6.2009-332

[7] Hess, R. and Bakhtiari-Nejad, M., Sliding Mode Control of a Nonlinear Ducted-Fan UAV Model, Collection of Technical Papers-AIAA Guidance, Navigation, and Control Conference 2006, Vol. 2, Keystone, CO, United States, 2006, pp.748-762.

DOI: 10.2514/6.2006-6088
