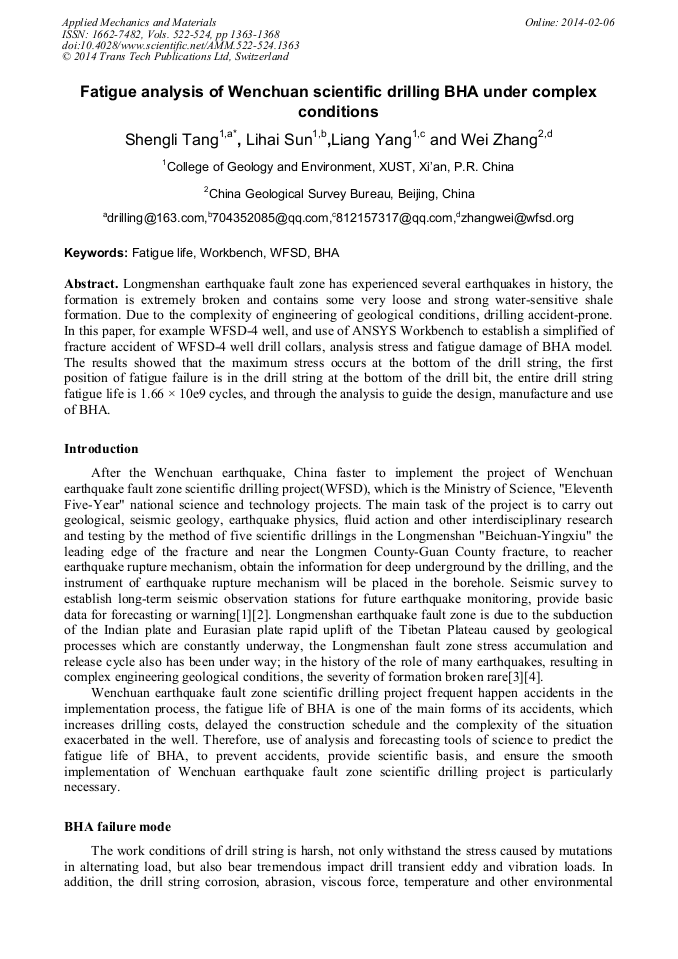

Fatigue Analysis of Wenchuan Scientific Drilling BHA under Complex Conditions

Abstract:

Longmenshan earthquake fault zone has experienced several earthquakes in history, the formation is extremely broken and contains some very loose and strong water-sensitive shale formation. Due to the complexity of engineering of geological conditions, drilling accident-prone. In this paper, for example WFSD-4 well, and use of ANSYS Workbench to establish a simplified of fracture accident of WFSD-4 well drill collars, analysis stress and fatigue damage of BHA model. The results showed that the maximum stress occurs at the bottom of the drill string, the first position of fatigue failure is in the drill string at the bottom of the drill bit, the entire drill string fatigue life is 1.66 × 10e9 cycles, and through the analysis to guide the design, manufacture and use of BHA.

• Periodical: Applied Mechanics and Materials (Volumes 522-524)
• Pages: 1363-1368
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.522-524.1363
• Online since: February 2014
• Authors: Sheng Li Tang*, Li Hai Sun, Liang Yang, Wei Zhang
• Keywords: BHA, Fatigue Life, WFSD, Workbench

References

[1] Peifeng Zhang. Chinese Journal of Geology and Exploration, 2012, 48(2): 379-386. (In Chinese).

[2] Lasheng Fan, Jun Jia, Jinsheng Wu, Yuangang Zhao, Jianwu You. Chinese Journal of Exploration Engineering (Rock & Soil Drilling and Tunneling), 2009, 36(12): 5-8. (In Chinese).

[3] Wei Zhang, Lasheng Fan, Jinsheng Wu. Chinese Journal of Exploration Engineering (Rock & Soil Drilling and Tunneling), 2013, 40(7): 61-68. (In Chinese).

[4] Zhiqing Xu, Haibing Li, Zhongliang Wu. Chinese Journal of Geology. 2008, 82(12): 1613-1622. (In Chinese).

[5] Yuanhua Lin, Hongzhi Luo, Bo Zou, Taihe Shi, Xiaohong Weng, Runfang Li. Chinese Journal of Oil Drilling & Production Technology, 2004, 26(1): 19-22. (In Chinese).

[6] Helin Li, Xiongrong Feng. Chinese Journal of Petroleum machinery, 1990, 18(8): 38-44. (In Chinese).

[7] L. Bertini,M. Beghini, C. Santus et. al. Resonant test rigs for fatigue full scale testing of oildrillstring connections. International Journal of Fatigue. Vol(30): 6, 978-988(2008).

DOI: 10.1016/j.ijfatigue.2007.08.013

[8] C. Santus. Fretting fatigue of aluminum alloy in contact with steel in oil drill pipe connections, modeling to interpret test results. International Journal of Fatigue. Vol(30): 4, 677-688(2008).

DOI: 10.1016/j.ijfatigue.2007.05.006

[9] Xiangzhen Yan, Maosheng Li, Xiujuan Yang, Deli Gao. Chinese Journal of Mechanical strength. 2006, 28(3): 341-345. (In Chinese).

[10] Maosheng Li, Xiangchen Yan, Deli Gao. Chinese Journal of Petroleum Machinery, 2006, 34(8): 15-18. (In Chinese).

[11] WenyunWang, Yunxia Tang, Taihe Shi. Chinese Journal of Oil Drilling & Production Technology, 2004, 26 (1) : 19-22. (In Chinese).

[12] Fangpo Li, Yonggang Liu, Xinhu Wang, et. al. Failure analysis of Φ127mm IEU G105 drill pipe washout. Engineering. Failure Analysis, Accepted Manuscript(2011), in press.

DOI: 10.1016/j.engfailanal.2011.06.018

[13] A.R. Shahani and S.M.H. Sharifi. Contact stress analysis and calculation of stress concentrationfactors at the tool joint of a drill pipe. Materials & Design. Vol (30), 9, 3615-3621(2009).

DOI: 10.1016/j.matdes.2009.02.022

[14] Jinsheng Wu, Jun Jia, Yugang Duan, Zhengqian Li. Chinese Journal of Exploration Engineering (Rock & Soil Drilling and Tunneling), 2012, 39 (9) : 49-65. (In Chinese).
