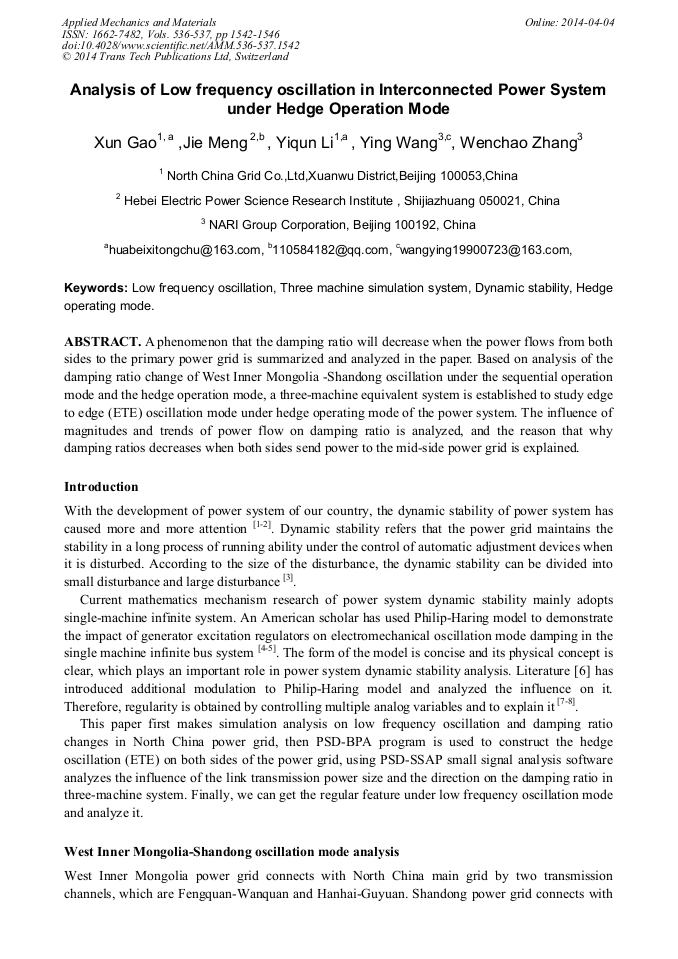

Analysis of Low Frequency Oscillation in Interconnected Power System under Hedge Operation Mode

Abstract:

A phenomenon that the damping ratio will decrease when the power flows from both sides to the primary power grid is summarized and analyzed in the paper. Based on analysis of the damping ratio change of West Inner Mongolia-Shandong oscillation under the sequential operation mode and the hedge operation mode, a three-machine equivalent system is established to study edge to edge (ETE) oscillation mode under hedge operating mode of the power system. The influence of magnitudes and trends of power flow on damping ratio is analyzed, and the reason that why damping ratios decreases when both sides send power to the mid-side power grid is explained.

• Periodical: Applied Mechanics and Materials (Volumes 536-537)
• Pages: 1542-1546
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.536-537.1542
• Online since: April 2014
• Authors: Xun Gao*, Jie Meng, Yi Qun Li, Ying Wang, Wen Chao Zhang
• Keywords: Dynamic Stability, Hedge Operating Mode, Low Frequency Oscillation (LFO), Three Machine Simulation System

References

[1] Fang Zhu, Hongguang Zhao, Zenghuang Liu, et al: The Influence of Large Power Grid Interconnected on Power System Dynamic Stability [J]. Proceedings of the CSEE, 2007, 27(1): 1-7. (in Chinese).

[2] Fang Zhu, Yong Tang, Dongxia Zhang et al: Study on Dynamic Stability Problems of Ac Interconnected Area Power Grids in China and their Solutions [J]. Power System Technology, 2004, 28(15): 1-5. (in Chinese).

[3] Economic and Trade Commission of the People's Republic China: Guide on Security and Stability DL 755-2001 for Power System [S]. Beijing: China Electric Power Press, (2001).

[4] Yixin Ni, Shousun Chen, Baolin Zhang, et al: Dynamic Power System Theory and Analysis [M]. Tsinghua University Press, 2002. (in Chinese).

[5] Xianlin Liu, Zhuo Liu, Hegong Lou: Linearized Model of the One-Machine Infinite-Bus System Considering the Effect of Damper Windings [J]. Proceedings of the CSEE, 2000, 10(20): 41-45. (in Chinese).

[6] Chengxiang Huo, Zenghuang Liu, Jun Pu: Impact of Reactive Current Compensation in Excitation System on Damping of Power System Oscillation Modes [J]. Power System Technology, 2011, 35(4): 65-70. (in Chinese).

[7] Jiming Wang, Wenying Liu, Shuanbao Niu: Study on damping characteristics of Xinjiang-Northwest power grid before and after interconnection [J]. Power System Protection and Control, 2010, 38(16): 92-98. (in Chinese).

DOI: 10.1109/appeec.2010.5448320
