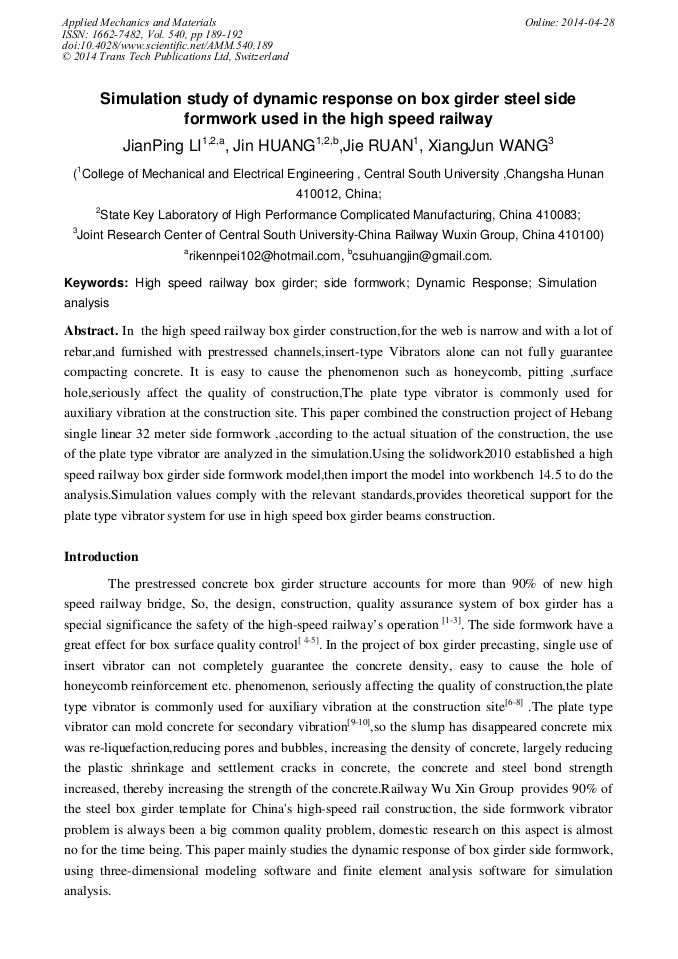

Simulation Study of Dynamic Response on Box Girder Steel Side Formwork Used in the High Speed Railway

Abstract:

In the high speed railway box girder construction,for the web is narrow and with a lot of rebar,and furnished with prestressed channels,insert-type Vibrators alone can not fully guarantee compacting concrete. It is easy to cause the phenomenon such as honeycomb, pitting ,surface hole,seriously affect the quality of construction,The plate type vibrator is commonly used for auxiliary vibration at the construction site. This paper combined the construction project of Hebang single linear 32 meter side formwork ,according to the actual situation of the construction, the use of the plate type vibrator are analyzed in the simulation.Using the solidwork2010 established a high speed railway box girder side formwork model,then import the model into workbench 14.5 to do the analysis.Simulation values comply with the relevant standards,provides theoretical support for the plate type vibrator system for use in high speed box girder beams construction.

• Periodical: Applied Mechanics and Materials (Volume 540)
• Pages: 189-192
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.540.189
• Online since: April 2014
• Authors: Jian Ping Li*, Jin Huang, Jie Ruan, Xiang Jun Wang
• Keywords: Dynamic Response, High Speed Railway Box Girder, Side Formwork, Simulation Analysis

References

[1] Samaras V, Sutton J, Williamson E, and Frank K. Simplified Method for Evaluating the Redundancy of Twin Steel Box-Girder Bridges (Journal of Bridge Engineering, 2012), p, 470-480.

DOI: 10.1061/(asce)be.1943-5592.0000280

[2] Yijun Zhang. Shallow theory of our country's high-speed railway bridge construction design features and key technology (China's high-tech companies, China 2009), p, 186-187.

[3] Bhattacharya, Saprava. Best practices in the use of Steel Box Girders for medium and long span Bridges in UK and Europe(International Association for Bridge and Structural Engineering, 2013), p, 1-8.

DOI: 10.2749/222137813815776322

[4] Bin HU. Application of high frequency vibrator in Bridge Engineering Seminar(Hunan Communication Science and Technology, China 2007), p, 98-101.

[5] Xiaolan WANG. Application of attached type vibrator in the box girder webs in concrete constructiony(Shanxi architecture, Shanxi 2005), p, 67-68.

[6] Weiwei ZHU . Study on early different curing methods Span Prestressed Concrete Continuous Rigid Frame Box Girder Cantilever Pouring Construction Section(Chongqin Jiaotong university, 2012), p, 37-39.

[7] Sengrong LI. The precast box beam and cast-in-place box beam construction technology(Tongji University , 2008), p, 54-58.

[8] Jinjiang Yu, Kang An, Baohua Lv. Qing-shen passenger die within 24 m double single box girder automation technology(Railway standard design, Beijing 2001), p, 15-17.

[9] Ren-jian ZHEN. Study on changes of concrete strength after secondary vibration( Journal of Wuhan Urban Construction Institute, 2004), p, 69-72.

[10] Ren-jian ZHEN. Study on characteristics of concrete strength after secondary vibration(Huazhong University of Science and Technology, 2004), p, 15-18.

[11] Hongcai Zhang. Engineering examples to ANSYS Workbench 14. 5 numerical simulation (Mechanical industry out of the club, Beijing 2013), p, 125-140.
