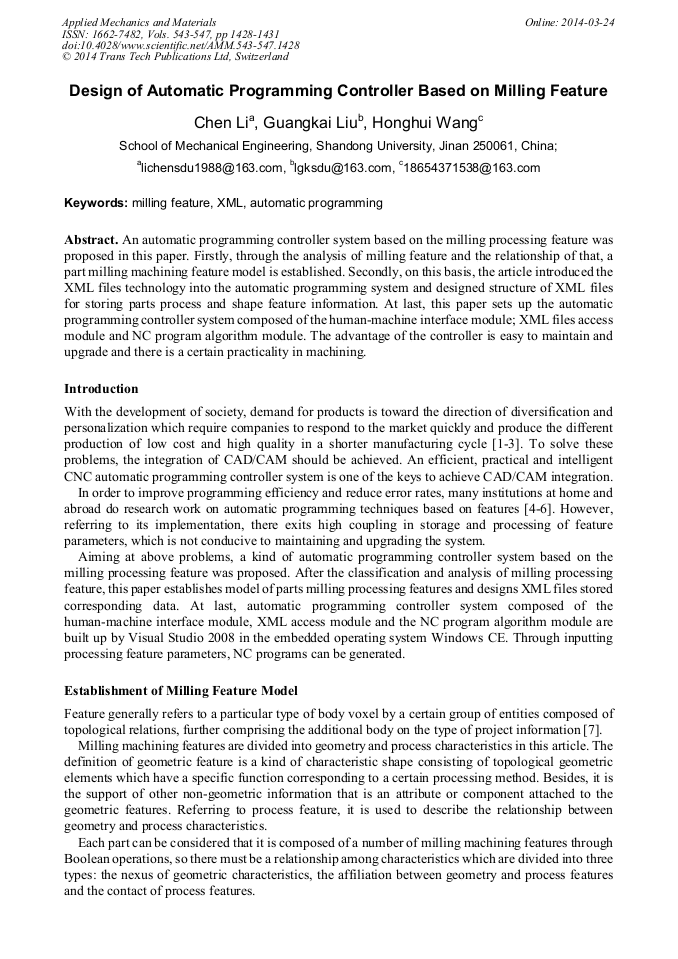

Design of Automatic Programming Controller Based on Milling Feature

Abstract:

An automatic programming controller system based on the milling processing feature was proposed in this paper. Firstly, through the analysis of milling feature and the relationship of that, a part milling machining feature model is established. Secondly, on this basis, the article introduced the XML files technology into the automatic programming system and designed structure of XML files for storing parts process and shape feature information. At last, this paper sets up the automatic programming controller system composed of the human-machine interface module; XML files access module and NC program algorithm module. The advantage of the controller is easy to maintain and upgrade and there is a certain practicality in machining.

• Periodical: Applied Mechanics and Materials (Volumes 543-547)
• Pages: 1428-1431
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.543-547.1428
• Online since: March 2014
• Authors: Chen Li*, Guang Kai Liu, Hong Hui Wang
• Keywords: Automatic Programming, Milling Feature, XML

References

[1] L. Wu: Hydromechatronics Engineering, Vol. 38 (2010) No. 14, p.9.

[2] J. H. Tao, X. Q. Yang and X. C. Liu: Computer Engineering and Design, Vol. 32 (2011) No. 10, p.3548.

[3] H. B. Lan, C. R. Zhang and Z. Q. Jiang: Hydromechatronics Engineering, Vol. 4 (2002) No. 11, p.68.

[4] G. Y. Yang, Z. P. Hua and J. G. Zhang: Jouranl of Hubei Polytechnic University, Vol. 14 (1999) No. 3, p.18.

[5] Z. X. Liu: Hydromechatronics Engineering, Vol. 2 (2003) No. 5, p.157.

[6] Y. J. Liao, J. W. She and H.S. Wang: Mechanical Science and Technology for Aerospace Engineering, Vol. 4 (2008) No. 8, p.532.

[7] L. W. Zhang, C. Z. Huang and F. Tian: Modular Machine Tool & Automatic Manufacturing Technique, Vol. 4 (2006) No. 17, p.105.
