Cubic Uniform B-Spline Curve and Surface with Multiple Shape Parameters

Abstract:

In order to construct B-spline curves with local shape control parameters, a class of polynomial basis functions with two local shape parameters is presented. Properties of the proposed basis functions are analyzed and the corresponding piecewise polynomial curve is constructed with two local shape control parameters accordingly. In particular, the G¹ continuous and the shapes of other segments of the curve can remain unchangeably during the manipulation on the shape of each segment on the curve. Numerical examples illustrate that the constructed curve fit to the control polygon very well. Furthermore, its applications in curve design is discussed and an extend application on surface design is also presented. Modeling examples show that the new curve is very valuable for the design of curves and surfaces.

You might also be interested in these eBooks

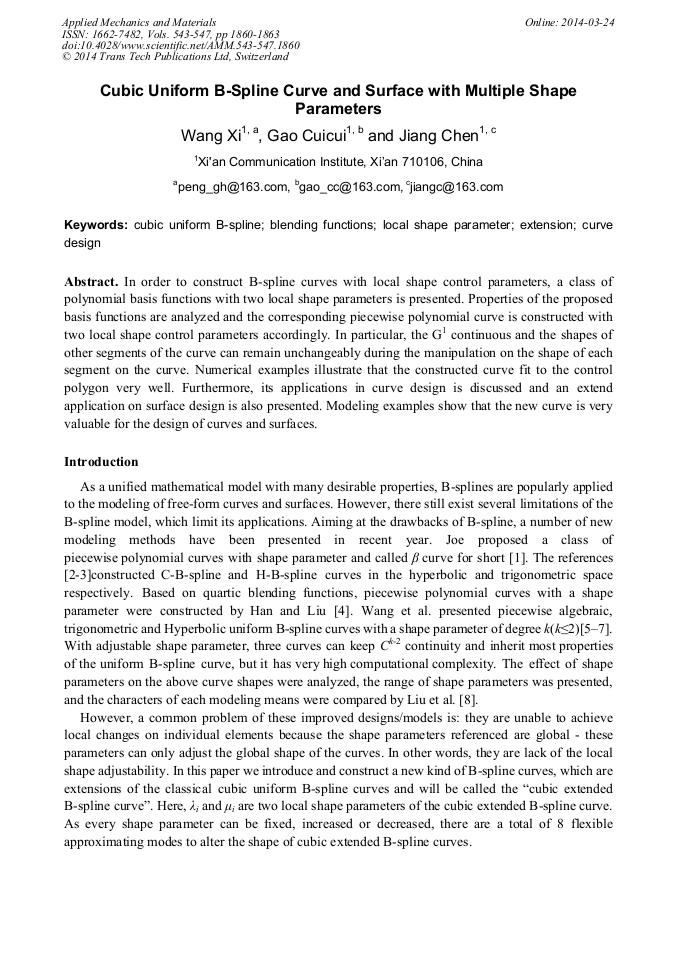

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 543-547)

Pages:

1860-1863

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.543-547.1860

Citation:

Cite this paper

Online since:

March 2014

Authors:

Xi Wang*, Cui Cui Gao, Chen Jiang

Keywords:

Blending Functions, Cubic Uniform B-Spline, Curve Design, Extension, Local Shape Parameter

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Joe B. Multiple-knot and rational cubic beta-splines. ACM Transactions on Graphics, Vol. 8 (1989), pp.100-120.

DOI: 10.1145/62054.62055

Google Scholar

[2] Zhang Jiwen. C-curves: An extension of cubic curves. Computer Aided Geometric Design, Vol. 13 (1996), pp.199-217.

DOI: 10.1016/0167-8396(95)00022-4

Google Scholar

[3] Lü Yonggang, Wang Guozhao, Yang Xunnian. Uniform hyperbolic polynomial B-spline curves. Computer Aided Geometric Design, Vol. 19 (2002), pp.379-93.

DOI: 10.1016/s0167-8396(02)00092-4

Google Scholar

[4] Han Xuli, Liu Shengjun. An extension of the cubic uniform B-spline curves. Journal of Computer Aided Design & Computer Graphics, Vol. 15 (2003), pp.576-78.

DOI: 10.3724/sp.j.1089.2019.17399

Google Scholar

[5] Wang Wentao, Wang Guozhao. Uniform B-spline with shape parameter. Journal of Computer Aided Design & Computer Graphics, Vol. 16 (2004), pp.783-788.

Google Scholar

[6] Wang Wentao, Wang Guozhao. Trigonometric polynomial uniform B-spline with shape parameter. Chinese Journal of Computers, Vol. 28 (2005), pp.1192-1198.

Google Scholar

[7] Wang Wentao, Wang Guozhao. Hyperbolic polynomial uniform B-spline with shape parameter. Journal of Software, Vol. 16 (2005), pp.625-633.

DOI: 10.1360/jos160625

Google Scholar

[8] Liu Xumin, Huang Houkuan, Wang Liuqiang, et al. Study of Spline-Curves with Shape Parameters. Journal of Computer Research and Development, Vol. 44 (2007), pp.487-496.

Google Scholar
