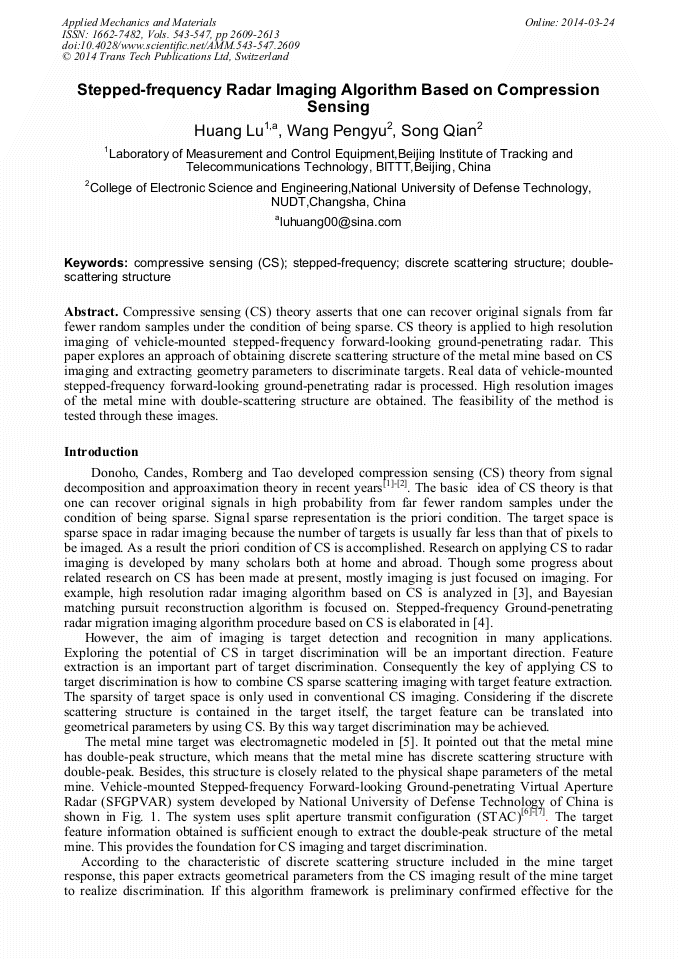

Stepped-Frequency Radar Imaging Algorithm Based on Compression Sensing

Abstract:

Compressive sensing (CS) theory asserts that one can recover original signals from far fewer random samples under the condition of being sparse. CS theory is applied to high resolution imaging of vehicle-mounted stepped-frequency forward-looking ground-penetrating radar. This paper explores an approach of obtaining discrete scattering structure of the metal mine based on CS imaging and extracting geometry parameters to discriminate targets. Real data of vehicle-mounted stepped-frequency forward-looking ground-penetrating radar is processed. High resolution images of the metal mine with double-scattering structure are obtained. The feasibility of the method is tested through these images.

• Periodical: Applied Mechanics and Materials (Volumes 543-547)
• Pages: 2609-2613
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.543-547.2609
• Online since: March 2014
• Authors: Lu Huang*, Peng Yu Wang, Qian Song
• Keywords: Compressive Sensing (CS), Discrete Scattering Structure, Double-Scattering Structure, Stepped-Frequency

References

[1] David L. Donoho, Compressed sensing, IEEE Trans. Information Theory, vol. 52, no. 4, pp.1289-1306, April (2006).

DOI: 10.1109/tit.2006.871582

[2] Candes EJ. Romberg J, Tao T, Robust uncertainty principles: exact signal reconstruction from highly incomplete frequency information, IEEE Trans. Information Theory, vol. 52, no. 2, pp.489-509, August (2006).

DOI: 10.1109/tit.2005.862083

[3] Min Wang, Shuyuan Yang, Yanyan Wan, Jing Wang, High resolution radar imaging based on compressed sensing and fast Bayesian matching pursuit, IEEE, (2011).

DOI: 10.1109/m2rsm.2011.5697377

[4] Qu Lele, Fang Guangyou, Yang Tianhong, The application of compressed sensing to stepped-frequency ground penetrating radar migration imaging, Journal of Electronics & Information Technology, vol. 33, pp.21-26, (2001).

DOI: 10.3724/sp.j.1146.2009.01528

[5] Jin Tian, Song Qian, Sun Xiaokun, Zhou Zhimin, Study of subsurface metallic landmine 2-Dimensional electromagnetic signature in ground penetrating synthetic aperture radar, Acta Electronica Sinica, vol. 34, pp.2247-2249, (2006).

[6] Jin Tian, Zhou Zhi-min, Imaging model of forward-looking ground penetrating radar with split-aperture transmitting configuration, " 2nd Asian and Pacific Conference on Synthetic Aperture Radar, xi, an, China, 2009, 21-24.

DOI: 10.1109/apsar.2009.5374350

[7] Jin Tian, Song Qian, Lu Biying, Virtual array imaging radar azimuth resolution analysis, IET International Radar Conference, Guilin, China, 2009, 223-226.

DOI: 10.1049/cp.2009.0201

[8] L. Happ, F. Le, M. Ressler and K. Kappra, Low-frequency ultrawideband synthetic aperture radar: frequency subbanding for targets obscured by the ground, Proceedings of SPIE, 2747, pp.194-201, (1996).

DOI: 10.1117/12.243078

[9] J. Kositsky, Results from a forward-looking GPR mine detection system. Proceedings of SPIE, vol. 4038, no. 2, pp.1077-1087, (2000).

[10] Candes E, Tao T, Decoding by linear programming, IEEE Trans. Information Theory, vol. 51, no. 12, pp.4203-4215, (2005).

DOI: 10.1109/tit.2005.858979

[11] Baraniuk R, Compressive sensing, IEEE Signal Processing Magazine, vol. 24, no. 4, pp.118-121, (2007).

DOI: 10.1109/msp.2007.4286571

[12] Ali Cafer Gurbuz, James H. McClellan, Waymond R. Scott, A compressive sensing data acquisition and imaging method for stepped frequency GPRs, IEEE Trans. Signal Processing, vol. 57, no. 7, pp.2640-2650, July (2009).

DOI: 10.1109/tsp.2009.2016270

[13] Shi Guangming, Lin Danhua, Advances in theory and application of compressed sensing, Acta Electronica Sinica, vol. 37, pp.1070-1081, (2009).

[14] Shihao Ji, Ya Xue, and Lawrence Carin, Bayesian Compressive Sensing, (2007).

[15] S. Derin Babacan, Rafael Molina, and Aggelos K. Katsaggelos, Bayesian Compressive Sensinsing using Laplace Priors, IEEE Trans. Image Processing, vol. 9, no. 1, pp.53-63, (2010).

DOI: 10.1109/tip.2009.2032894
