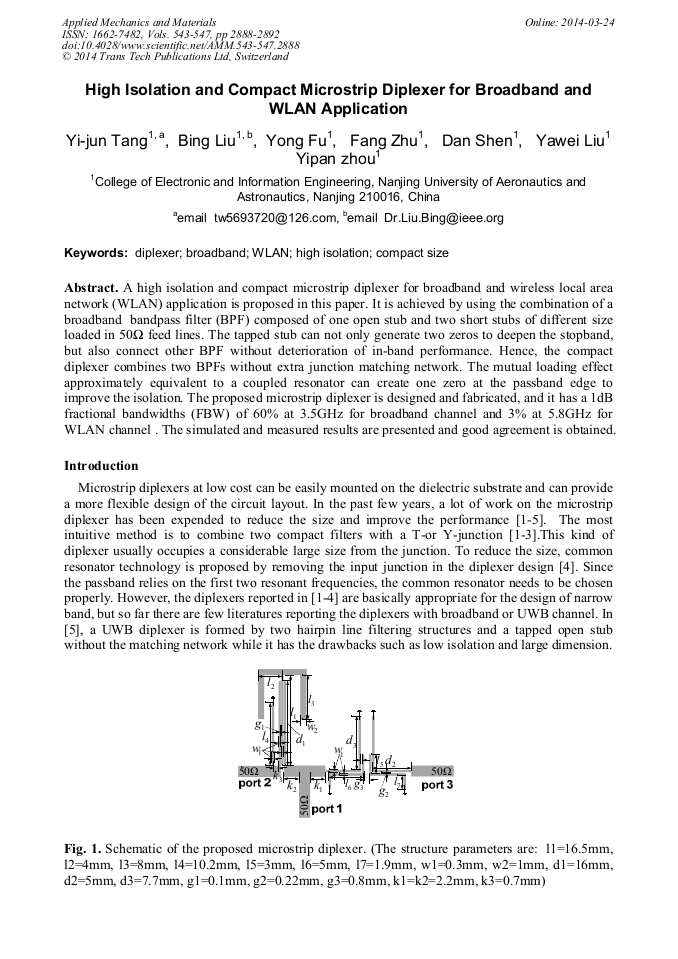

High Isolation and Compact Microstrip Diplexer for Broadband and WLAN Application

Abstract:

A high isolation and compact microstrip diplexer for broadband and wireless local area network (WLAN) application is proposed in this paper. It is achieved by using the combination of a broadband bandpass filter (BPF) composed of one open stub and two short stubs of different size loaded in 50Ω feed lines. The tapped stub can not only generate two zeros to deepen the stopband, but also connect other BPF without deterioration of in-band performance. Hence, the compact diplexer combines two BPFs without extra junction matching network. The mutual loading effect approximately equivalent to a coupled resonator can create one zero at the passband edge to improve the isolation. The proposed microstrip diplexer is designed and fabricated, and it has a 1dB fractional bandwidths (FBW) of 60% at 3.5GHz for broadband channel and 3% at 5.8GHz for WLAN channel . The simulated and measured results are presented and good agreement is obtained.

• Periodical: Applied Mechanics and Materials (Volumes 543-547)
• Pages: 2888-2892
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.543-547.2888
• Online since: March 2014
• Authors: Yi Jun Tang*, Bing Liu, Yong Fu, Fang Zhu, Dan Shen, Ya Wei Liu, Yi Pan Zhou
• Keywords: Broadband, Compact Size, Diplexer, High Isolation, WLAN

References

[1] J. Bonache, I. Gil, J. Garcı´a-Garcı´a and F. Martı´n: Complementary split ring resonators for microstrip diplexer design, Electronics Letters, 2005, 41(14), pp.810-811.

DOI: 10.1049/el:20050895

[2] Min-Hua Ho, Chung-I G. Hsu and Chen-Mao Rao: Bandpass filter of forked step impedance resonator with harmonic suppression in diplexer applications, Microwave and Optical Technology Letters, 2007, 49(11), p.2665–2668.

DOI: 10.1002/mop.22813

[3] Wei-Qin Xu, Min-Hua Ho and Chung-I. G. Hsu: Quasi-lumped design of UMTS diplexer using combined CPW and microstrip, Microwave and Optical Technology Letters, 2009, 51(1), p.150–152.

DOI: 10.1002/mop.23952

[4] Chi-Feng Chen, Ting-Yi Huang, Chi-Ping Chou and Ruey-Beei Wu: Microstrip diplexers design with common resonator sections for compact size, but high isolation, IEEE Transactions on Microwave Theory and Techniques, 2006, 54(5), p.1945–(1952).

DOI: 10.1109/tmtt.2006.873613

[5] M. H. Weng, C. Y. Hung and Y. K. Su, A hairpin line diplexer for direct sequence ultra-wideband wireless communications, IEEE Microw. Wireless Compon. Lett., vol. 17, no. 7, pp.519-521, Jan. (2007).

DOI: 10.1109/lmwc.2007.899315

[6] K. J. Song and Q. Xue, Novel broadband bandpass filters using Y-shaped dual-mode microstrip resonators, IEEE Microw. Wireless Compon. Lett., vol. 19, no. 9, pp.548-550, Sep. (2009).

DOI: 10.1109/lmwc.2009.2027058

[7] G. L. Dai, Y. X. Guo and M. Y. Xia, Design of compact bandpass filter with improved selectivity using source-load coupling, Electronics Letter, vol. 46, no. 7, pp.505-506, Apr. (2010).

DOI: 10.1049/el.2010.2841
