Simulation and Optimization of an Octagonal Halbach Permanent Magnet Array for Small-Size NMR

Abstract:

Halbach magnet array has advantages of its small size and yokeless, so it has been widely used in various areas. In this paper, two Halbach permanent magnet arrays for small-size NMR with cube and octagonal shape, respectively, were compared in parameters of average magnetic field strength, field homogeneity and volume with the same material consumption. It was found that the octagonal shape magnet has better performance than the cube one. Then the field homogeneity optimization for octagonal magnet was performed. By analysis of magnetic field strength, the best homogeneity in 5mm DSV (Diameter of Spherical Volume) with 133.4ppm was achieved when the height of magnetic blocks is 16.25mm. After optimization, the magnetic field homogeneity has been significantly improved when the shape of magnet has small volume. This result laid a foundation for the design and manufacture of the octagonal Halbach permanent magnet array in small size.

You might also be interested in these eBooks

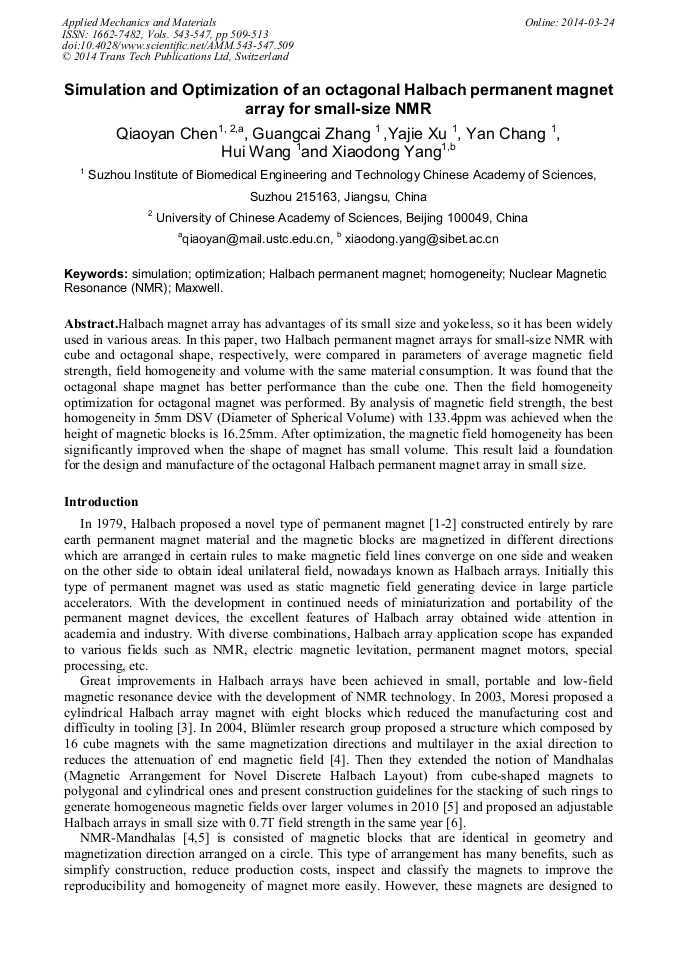

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 543-547)

Pages:

509-513

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.543-547.509

Citation:

Cite this paper

Online since:

March 2014

Authors:

Qiao Yan Chen*, Guang Cai Zhang, Ya Jie Xu, Yan Chang, Hui Wang, Xiao Dong Yang

Keywords:

Halbach Permanent Magnet, Homogeneity, Maxwell, Nuclear Magnetic Resonance (NMR), Optimization, Simulation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] K. Halbach. Strong rare earth cobalt quadropoles. IEEE Trans Nucl Sci 26(1979), p.3882–3884.

DOI: 10.1109/tns.1979.4330638

Google Scholar

[2] K. Halbach. Design of permanent multipole magnets with oriented rare earth cobalt material. Nucl Instrum Methods 169(1980), p.1–10.

DOI: 10.1016/0029-554x(80)90094-4

Google Scholar

[3] G. Moresi, R. Magin, Miniature permanent magnet for table-top NMR, Concepts Magn. Reson. B 19B (1) (2003), p.35–43.

DOI: 10.1002/cmr.b.10082

Google Scholar

[4] H. Raich, P. Blümler. Design and construction of a dipolar Halbach array with a homogeneous field from identical bar magnets: NMR Mandhalas. Concepts Magn Reson 23B(2004), p.16–25.

DOI: 10.1002/cmr.b.20018

Google Scholar

[5] H. Soltner, P. Blümler. Dipolar Halbach magnet stacks made from identically shaped permanent magnets for magnetic resonance. Concepts in Magnetic Resonance Part A 36(4) (2010), pp.211-222.

DOI: 10.1002/cmr.a.20165

Google Scholar

[6] E. Danieli, J. Perlo, B. Bluemich, et al. Small Magnets for Portable NMR Spectrometers. Angew. Chem. Int. Ed. 49(24) (2010), pp.4133-4135.

DOI: 10.1002/anie.201000221

Google Scholar
