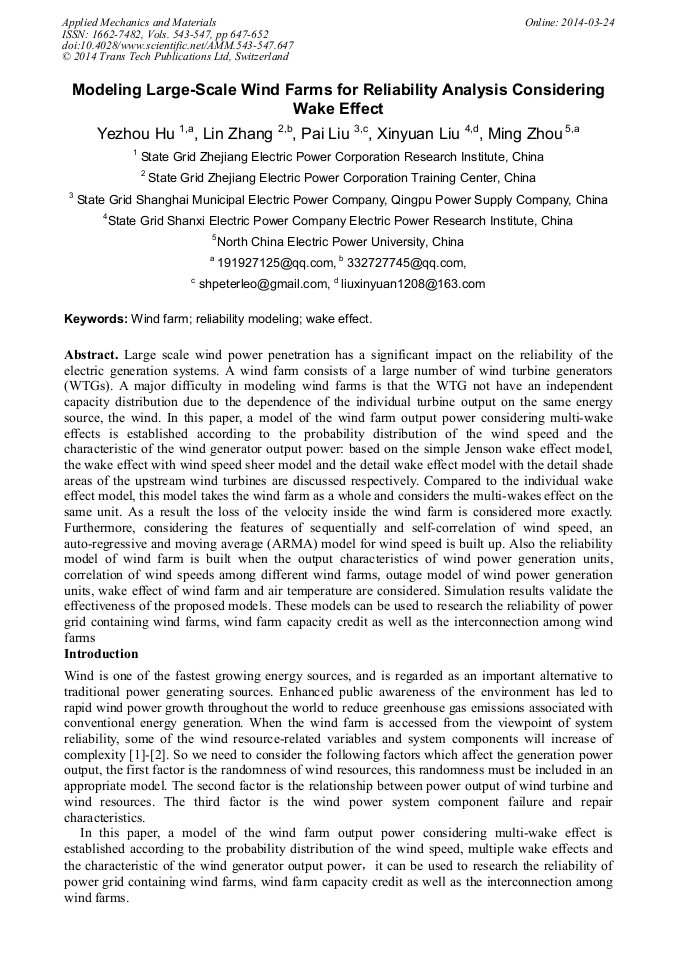

Modeling Large-Scale Wind Farms for Reliability Analysis Considering Wake Effect

Abstract:

Large scale wind power penetration has a significant impact on the reliability of the electric generation systems. A wind farm consists of a large number of wind turbine generators (WTGs). A major difficulty in modeling wind farms is that the WTG not have an independent capacity distribution due to the dependence of the individual turbine output on the same energy source, the wind. In this paper, a model of the wind farm output power considering multi-wake effects is established according to the probability distribution of the wind speed and the characteristic of the wind generator output power: based on the simple Jenson wake effect model, the wake effect with wind speed sheer model and the detail wake effect model with the detail shade areas of the upstream wind turbines are discussed respectively. Compared to the individual wake effect model, this model takes the wind farm as a whole and considers the multi-wakes effect on the same unit. As a result the loss of the velocity inside the wind farm is considered more exactly. Furthermore, considering the features of sequentially and self-correlation of wind speed, an auto-regressive and moving average (ARMA) model for wind speed is built up. Also the reliability model of wind farm is built when the output characteristics of wind power generation units, correlation of wind speeds among different wind farms, outage model of wind power generation units, wake effect of wind farm and air temperature are considered. Simulation results validate the effectiveness of the proposed models. These models can be used to research the reliability of power grid containing wind farms, wind farm capacity credit as well as the interconnection among wind farms

• Periodical: Applied Mechanics and Materials (Volumes 543-547)
• Pages: 647-652
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.543-547.647
• Online since: March 2014
• Authors: Ye Zhou Hu*, Lin Zhang, Pai Liu, Xin Yuan Liu, Ming Zhou
• Keywords: Reliability Modeling, Wake Effect, Wind Farm

References

[1] J. Charles Smith, Michael R. Milligan, Edgar A. DeMeo and. Brian Parsons Utility wind Integration and operating impact state of the art, IEEE Trans. Power Systems, Vol. 22, pp.900-908, Aug. (2007).

DOI: 10.1109/tpwrs.2007.901598

[2] Rajesh Karki, Po Hu, Roy Billinton, A Simplified Wind Power Generation Model for Reliability Evaluation. IEEE Transactions on Energy Conversion, vol. 21, No. 2, June 2006: 533-540.

DOI: 10.1109/tec.2006.874233

[3] S. Chen, H. Dai, X. Bai and X. Zhou, Reliability model of wind power plants and its application, Proceedings of the CSEE, vol. 20, no. 3, pp.26-29, Mar. (2000).

[4] Wu Yichun, Ding ming, Li Shenghu. Reliability assessment of wind farms in generation and transmission systems[J] Transactions of China Electrotechnical Society, 2004, 19(11): 72-76(in Chinese).

[5] Zhang Shuo, Li Gengyin, Zhou Ming. Reliability Modeling of Large-Scale Wind Farms [J]. Power System Technology, 2009, 33(13): 16-20(in Chinese).

[6] F. Koch, Consideration of Wind Farm Wake Effect in Power System Dynamic Simulation, IEEE PowerTech Conference proceedings, June, 2005. 7.

[7] Liu Wei, Zhao Yuan, Zhou Jiaqi. Reliability assessment of power generation transmission and distribution systems containing wind farms [J]. Power System Technology, 2008, 32(13): 69-74(in Chinese).

[8] Wang P, Billinton R. Reliability benefit analysis of adding WTG to a distribution systems [J]. IEEE Trans on Energy Conversion, 2001, 16 (2): 134-139.

DOI: 10.1109/60.921464

[9] Sun Jianfeng, Research on wind farm modeling and simulating [D]. Beijing Tsinghua University, 2004(in Chinese).

[10] Wang Haichao, Lu Zhongxiang, Zhou Shuangxi. Research on the capacity of wind energy resources [J]. Proceedings of the CSEE, 2005, 25 (10): 103-106(in Chinese).
