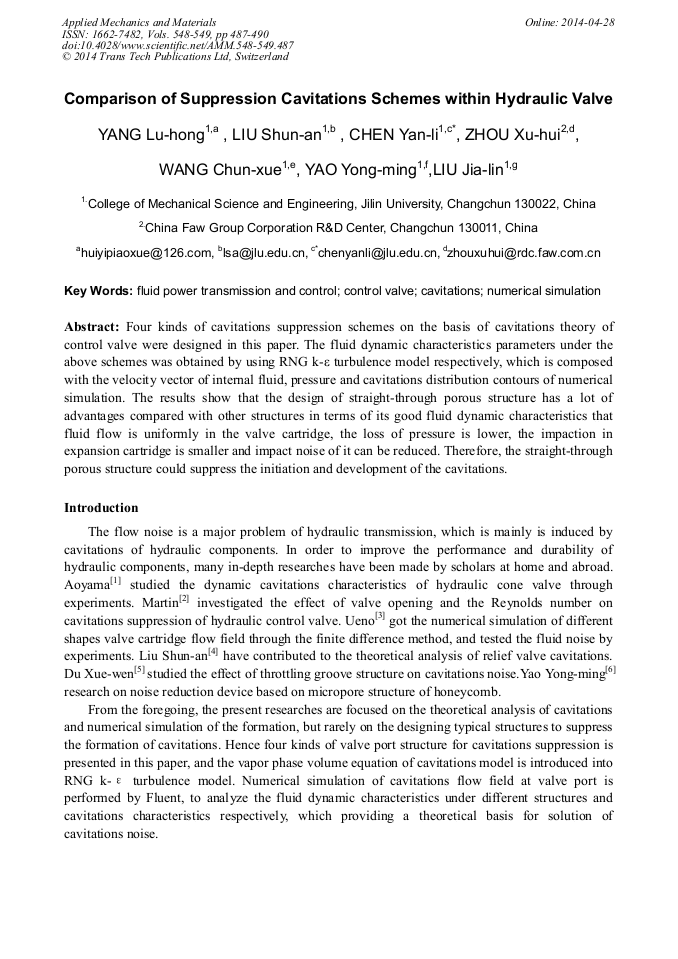

Comparison of Suppression Cavitations Schemes within Hydraulic Valve

Abstract:

Four kinds of cavitations suppression schemes on the basis of cavitations theory of control valve were designed in this paper. The fluid dynamic characteristics parameters under the above schemes was obtained by using RNG k-ε turbulence model respectively, which is composed with the velocity vector of internal fluid, pressure and cavitations distribution contours of numerical simulation. The results show that the design of straight-through porous structure has a lot of advantages compared with other structures in terms of its good fluid dynamic characteristics that fluid flow is uniformly in the valve cartridge, the loss of pressure is lower, the impaction in expansion cartridge is smaller and impact noise of it can be reduced. Therefore, the straight-through porous structure could suppress the initiation and development of the cavitations.

• Periodical: Applied Mechanics and Materials (Volumes 548-549)
• Pages: 487-490
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.548-549.487
• Online since: April 2014
• Authors: Lu Hong Yang*, Shun An Liu, Yan Li Chen, Xu Hui Zhou, Chun Xue Wang, Yong Ming Yao, Jia Lin Liu
• Keywords: Cavitation, Control Valve, Fluid Power Control, Fluid Power Transmission, Numerical Simulation

References

[1] Aoyama Y, Matsuoka Y, Yamamoto M, et al. The cavitation performance of an oil hydraulic poppet valve[J]. Transactions of the Japan Society of Mechanical Engineers, Part B, 1988, 54(503): 1710-1715.

DOI: 10.1299/kikaib.54.1710

[2] Martin C S, Medlarz H, et al. Cavitation inception in spool valves[J]. Transaction of the ASME, Journal of Fluids Engineering, 1981, 103: 564-576.

DOI: 10.1115/1.3241770

[3] Ueno H, Okajima A, Tanaka H, et al. Noise measurement and numerical simulation of oil flow in pressure control valves[J]. JSME international jounral, Series B, fluids and thermal engineering, 1994, 37(2): 336-341.

DOI: 10.1299/jsmeb.37.336

[4] Liu Shun'an, Yang Song, Chen Yanli, et al. Analysis and optimization of resistive cavitation property of annular groove within relief valve[J]. Journal of Chongqing University(Natural Science Edition) , 2012, 35(007): 32-36.

[5] Du Xuewen, Zou Jun, Fu Xin. Effect of throttling grooves structure on cavitation noise[J]. Journal of Zhejiang University(Engineering Science), 2007, 3: 017.

[6] Yao Y M, Liu S A, Shang T, et al. The research on noise reduction device based on micropore structure of honeycomb[J]. Applied Mechanics and Materials, 2014, 461: 95-100.

DOI: 10.4028/www.scientific.net/amm.461.95
