Experimental Investigation on Axially Loaded PFRP Compression Members Having Double C-Sections

Abstract:

This paper presents the results of an experimental investigation on axially loaded PFRP compression members having double C-sections with pinned-pinned supports. The objectives of this research work are to investigate their structural behaviors and modes of failure and to propose their design equations. The specimens were built from single PFRP C-section, having three cross-sectional dimensions of 76×22×6 mm, 102×29×6 mm and 152×43×10 mm. A total of 42 specimens with slenderness ratios ranging from 21 to 168 were tested. The compression members can be classified as short and long. The short compression members have linear behavior up to 90% to 95% of the ultimate crushing loads. The long compression members have linear behavior up to 80-90% of the flexural buckling loads. By comparing and fitting the test results with the design equations as presented in the ASCE Structural Plastics Design Manual, the design equations that can be used to predict the ultimate compressive stress of the compression members were proposed.

You might also be interested in these eBooks

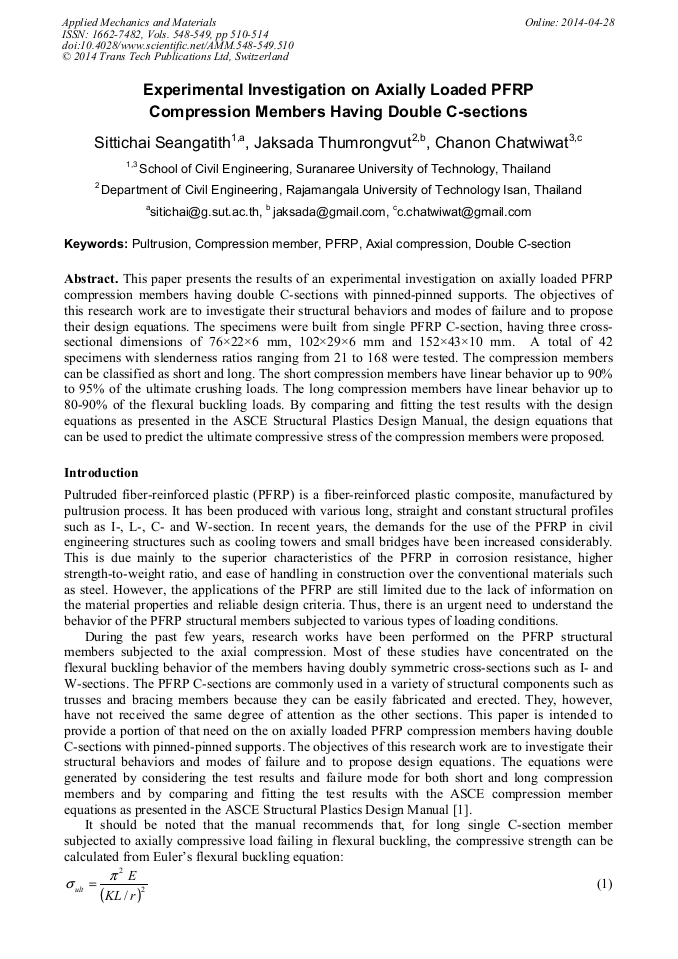

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 548-549)

Pages:

510-514

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.548-549.510

Citation:

Cite this paper

Online since:

April 2014

Authors:

Sittichai Seangatith, Jaksada Thumrongvut, Chanon Chatwiwat

Keywords:

Axial Compression, Compression Member, Double C-Section, PFRP, Pultrusion

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] American Society for Civil Engineering. ASCE Structural Plastic Design Manual, ASCE Manuals and Reports on Engineering Practice No. 63, New York, NY. (1984).

Google Scholar

[2] Ye, B.S., Svenson, A.L., and Bank, L.C. Mass and volume fraction properties of pultruded glass fiber reinforced composites. Composite Structures. Vol. 26(10), (1995), pp.725-731.

DOI: 10.1016/0010-4361(95)91140-z

Google Scholar

[3] Boonsuan W., Seangatith S. and Vongchavalitkul S. Behaviors and Properties of Pultruded Fiber Reinforced Plastic Produced in Thailand under Compression, Shear and Flexure. Proceedings, The 14th National Convention on Civil Engineering, Suranaree University of Technology, Nakhonratchasima, Thailand, 13-15 May, Vol. 4, (2009).

Google Scholar

[4] American Institute of Steel Construction. Manual of Steel Construction, Load and Resistance Factor Design, Chicago, IL. (2005).

Google Scholar
