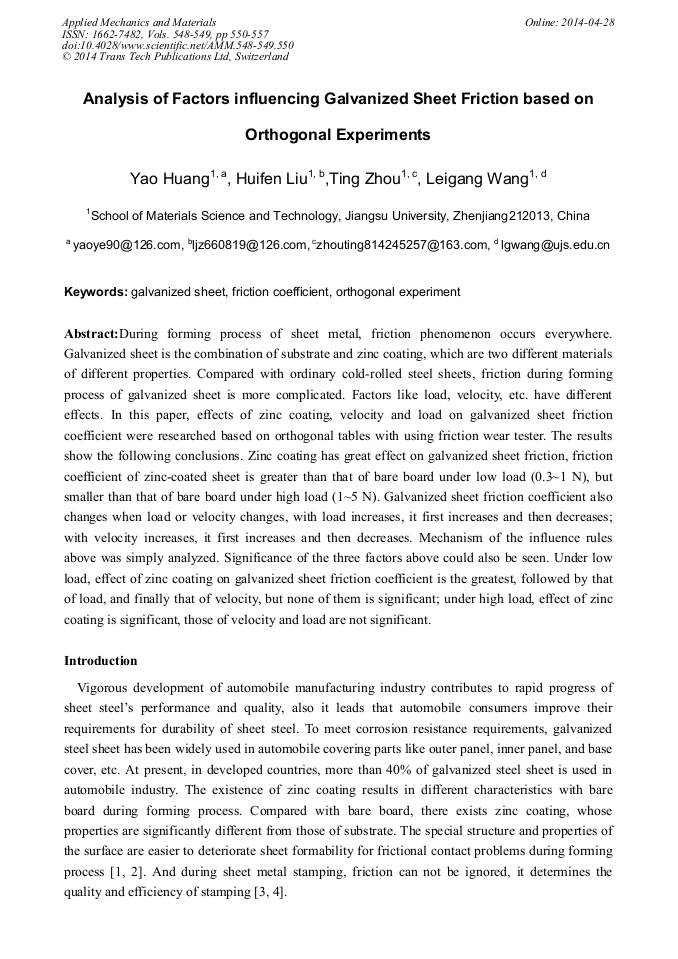

Analysis of Factors influencing Galvanized Sheet Friction based on Orthogonal Experiments

Abstract:

During forming process of sheet metal, friction phenomenon occurs everywhere. Galvanized sheet is the combination of substrate and zinc coating, which are two different materials of different properties. Compared with ordinary cold-rolled steel sheets, friction during forming process of galvanized sheet is more complicated. Factors like load, velocity, etc. have different effects. In this paper, effects of zinc coating, velocity and load on galvanized sheet friction coefficient were researched based on orthogonal tables with using friction wear tester. The results show the following conclusions. Zinc coating has great effect on galvanized sheet friction, friction coefficient of zinc-coated sheet is greater than that of bare board under low load (0.3~1 N), but smaller than that of bare board under high load (1~5 N). Galvanized sheet friction coefficient also changes when load or velocity changes, with load increases, it first increases and then decreases; with velocity increases, it first increases and then decreases. Mechanism of the influence rules above was simply analyzed. Significance of the three factors above could also be seen. Under low load, effect of zinc coating on galvanized sheet friction coefficient is the greatest, followed by that of load, and finally that of velocity, but none of them is significant; under high load, effect of zinc coating is significant, those of velocity and load are not significant.

• Periodical: Applied Mechanics and Materials (Volumes 548-549)
• Pages: 550-557
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.548-549.550
• Online since: April 2014
• Authors: Yao Huang, Hui Fen Liu, Ting Zhou, Lei Gang Wang
• Keywords: Friction Coefficient (FC), Galvanized Sheet, Orthogonal Experiment

References

[1] Michal G M, Paik D J. The Effect of Forming Velocity and Stain Path on the Performance of Galvannealed Sheet Steels [C]. Galvatech, (2001).

[2] Wurong Wang, Meng Hua, Xicheng Wei. A comparison study of sliding friction behavior between two high strength DP590 steel sheets against heat treated DC53 punch: Hot-dip galvanized sheet versus cold rolled bare sheet [J]. Tribology International, 2012, (54): 114-122.

DOI: 10.1016/j.triboint.2012.05.005

[3] Hongying Gong, Zhonling Lou, Zhiling Zhang. Studies on the friction and lubrication characteristics in the sheet steel drawing process [J]. Journal of Materials Processing Technology, 2004, (151): 328-333.

DOI: 10.1016/j.jmatprotec.2004.04.082

[4] L.G. Garza, C.J. Van Tyne. Friction and formability of galvannealed interstitial free sheet steel [J]. Journal of Materials Processing Technology, 2007 (187~188) : 164~168.

DOI: 10.1016/j.jmatprotec.2006.11.062

[5] Benchun Huang, Guozhu Li. Experimental Course of Statistics [M]. Beijing: China Economic Press, (2010).
