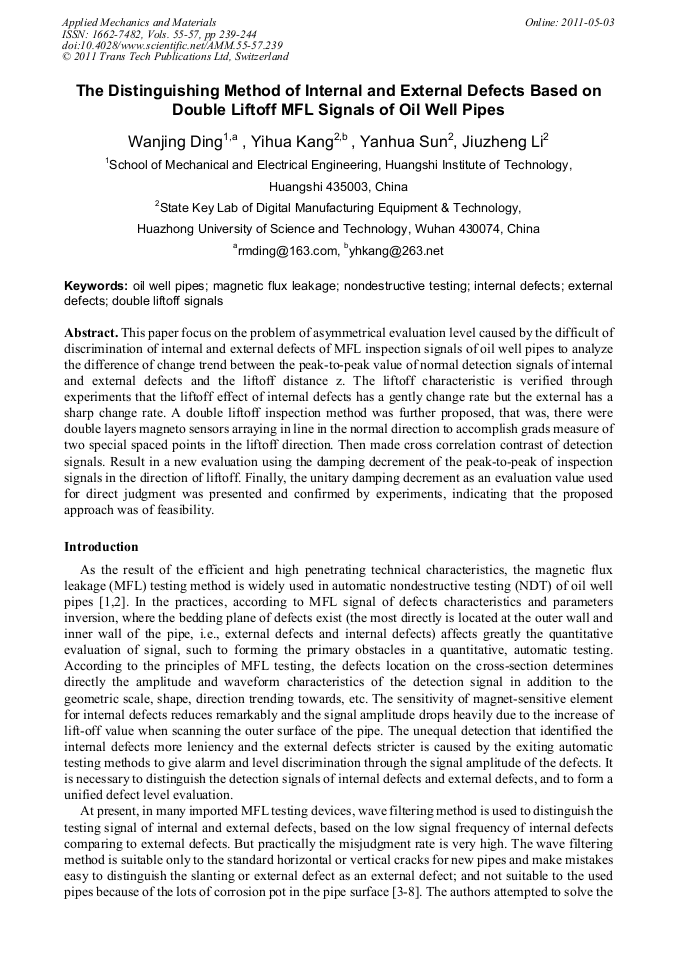

The Distinguishing Method of Internal and External Defects Based on Double Liftoff MFL Signals of Oil Well Pipes

Abstract:

This paper focus on the problem of asymmetrical evaluation level caused by the difficult of discrimination of internal and external defects of MFL inspection signals of oil well pipes to analyze the difference of change trend between the peak-to-peak value of normal detection signals of internal and external defects and the liftoff distance z. The liftoff characteristic is verified through experiments that the liftoff effect of internal defects has a gently change rate but the external has a sharp change rate. A double liftoff inspection method was further proposed, that was, there were double layers magneto sensors arraying in line in the normal direction to accomplish grads measure of two special spaced points in the liftoff direction. Then made cross correlation contrast of detection signals. Result in a new evaluation using the damping decrement of the peak-to-peak of inspection signals in the direction of liftoff. Finally, the unitary damping decrement as an evaluation value used for direct judgment was presented and confirmed by experiments, indicating that the proposed approach was of feasibility.

• Periodical: Applied Mechanics and Materials (Volumes 55-57)
• Pages: 239-244
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.55-57.239
• Online since: May 2011
• Authors: Wan Jing Ding, Yi Hua Kang, Yan Hua Sun, Jiu Zheng Li
• Keywords: Double Liftoff Signal, External Defect, Internal Defect, Magnetic Flux Leakage (MFL), Nondestructive Testing (NDT), Oil Well Pipe

References

[1] Yang Kechong, Zheng Jun, Kang Yihua et al. Characteristic of magnetism leakage covering magnetic section of steel pipe seam and its test [J]. Journal of Mechanical Engineering, 1994, 30: 191-197.

[2] Kang Yihua, Wu Xinjun. Digital magnetic nondestructive testing technology [M], Beijing: China Machine Press, (2006).

[3] Chen Hougui, Li Jin, Kang Yihua et al. Description method of wire rope flaw[J]. Journal of Mechanical Engineering, 2009, 45(1): 309-314.

[4] Li Jiuzheng Kang Yihua Sun Yanhua et al, Discrimination of internal and external steel pipe notches using signal figures extremum, Journal of Huazhong University of Science and Technology (Nature Science Edition), 2008 36(12): 75-78.

[5] KangYihua, Li Jiuzheng, Sun Yanhua, Lu Qiang, Analysis of the Characters of Standard Magnetic Flux Leakage Signal and the Selection of Inspecting Probes, Nondestructive Testing, 2008 30(3): 159-162.

[6] S.M. Murigendrappa, S.K. Maiti and H.R. Srirangarajan, Frequency-based experimental and theoretical identification of multiple cracks in straight pipes filled with fluid. NDT&E Int, 2004, 37: 431-438.

DOI: 10.1016/j.ndteint.2003.11.009

[7] R. Baskaran, M.P. Janawadkar, Defect localization by orthogonally projected multiple signal classification approach for magnetic flux leakage fields. NDT&E Int, 2008, 41: 416-419.

DOI: 10.1016/j.ndteint.2008.03.009

[8] Song Kai, Kang Yihua, Sun Yanhua et al, Study of Signal Mechanism Based on Combining Magnetic Flux Leakage and Eddy Current Testing, Journal of Mechanical Engineering, 2009, 145(7): 233-237.

DOI: 10.3901/jme.2009.07.233

[9] Yong Zhang, Zhongfu Ye, Xu Xu. An adaptive method for channel equalization in MFL inspection. NDT&E Int., 2007, 40: 127-139.

DOI: 10.1016/j.ndteint.2006.09.004
