Research on the Impact between Balls and Re-Circulating Mechanism of Ball Screws

Abstract:

A Mechanical model of impact and contact between the ball and re-circulating mechanism in ball screw was brought forward according to the Hertz contact model and classical impact theory, along with the joint relationship of re-circulating mechanism and nut taken into account. Then the formula of the impact force and contact time was induced, which the elastic coefficient of restitution was considering in contact time calculation. Moreover, a special test unit was designed for contact time measurement and the contact time was measured. The result indicates that the new model proposed in this paper is closer to the practical situation than the old model proposed in literature. Based on works mentioned above, the influence of impact angle, parameters of structure and material on impact force was analyzed by numerical simulation.

You might also be interested in these eBooks

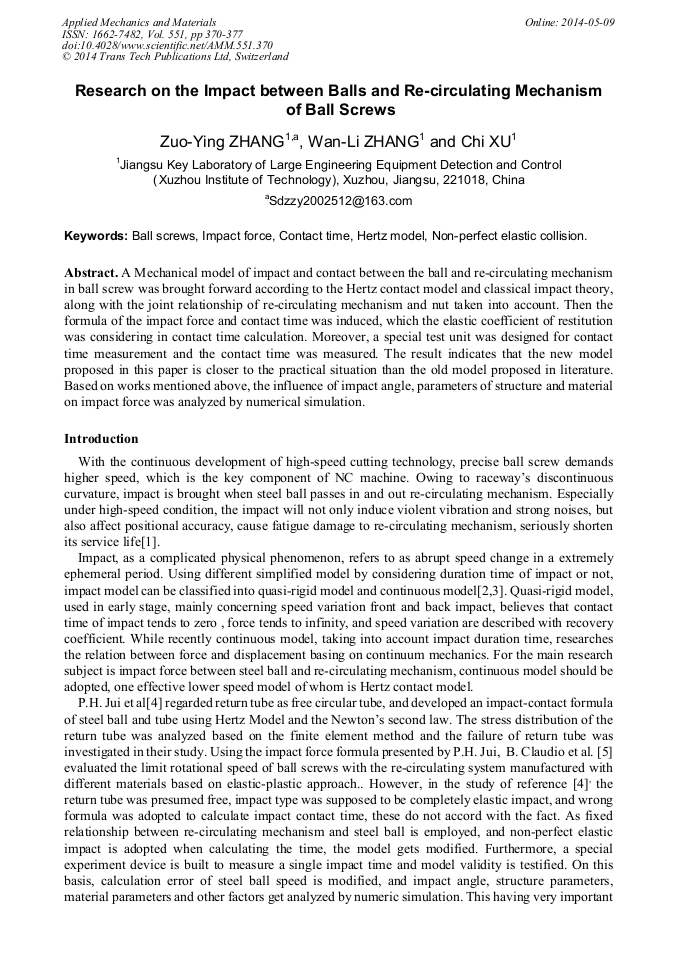

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 551)

Pages:

370-377

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.551.370

Citation:

Cite this paper

Online since:

May 2014

Authors:

Zuo Ying Zhang*, Wan Li Zhang, Chi Xu

Keywords:

Ball Screws, Contact Time, Hertz Model, Impact Force, Non-Perfect Elastic Collision

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Ninomiya M, Miyaguchi K. Recent technical trends in ball screws . NSK Tech Journal: Motion Control 664(1998): pp.1-3.

Google Scholar

[2] Liu Caishan, Chen Bin. A Global Review For The Impact Dynamic Research Of Flexible Multibody Systems. ADVANCES IN MECHANICS. 2000, 30(1): pp.7-14.

Google Scholar

[3] Han Wei. Research on the kinetics of oblique-impact vibrating system. Nanjing: Nanjing University of Aeronautics and Astronautics, 2003. (in chinese).

Google Scholar

[4] Hung JP, Wu JS, Chiu JP. Impact failure analysis of re-circulating mechanism in ball screw. Engineering Failure Analysis. 2004(11): pp.561-573.

DOI: 10.1016/j.engfailanal.2004.01.002

Google Scholar

[5] Braccesi C, Landi L. A general elastic-plastic approach to impact analysis for stress state limit evaluation in ball screw bearings return system. International Journal of Impact Engineering. 2007, 34(7): pp.1272-1285.

DOI: 10.1016/j.ijimpeng.2006.06.005

Google Scholar

[6] Yao Tianzhong, Zou Lixin, Cai Zhenyan, et al. Impulse time measurement of flexible body. Journal of Suzhou University. 1995(7): pp.40-42. (in chinese).

Google Scholar

[7] Cheng Guangren, Shi Zukang, Zhang Chaopeng. Fundamentals of ball helical transmission design. Beijing: China Machine Press, 1987. (in chinese).

Google Scholar
