Modeling of Shield Machine Tunneling Experiment by Discrete Element Method

Abstract:

To discover the interaction rules between the cutterhead of shield machine and the soils, the model experiment of shield machine tunneling is performed, and the particle discrete element model of the experiment is built. By adjusting the particle parameters, the simulated cutterhead torque is compatible with the experiment observed results. Then the displacement of soils in the front of the cutterhead, behind the cutterhead, and in the front of the chamber board is obtained. The soils in the front of the cutterhead try to flow into the nearest opening. However, the soils behind the cutterhead move toward the wall of out barrel. The movement of soils in front of the chamber board is in accordance with the rotation direction of the cutterhead.

You might also be interested in these eBooks

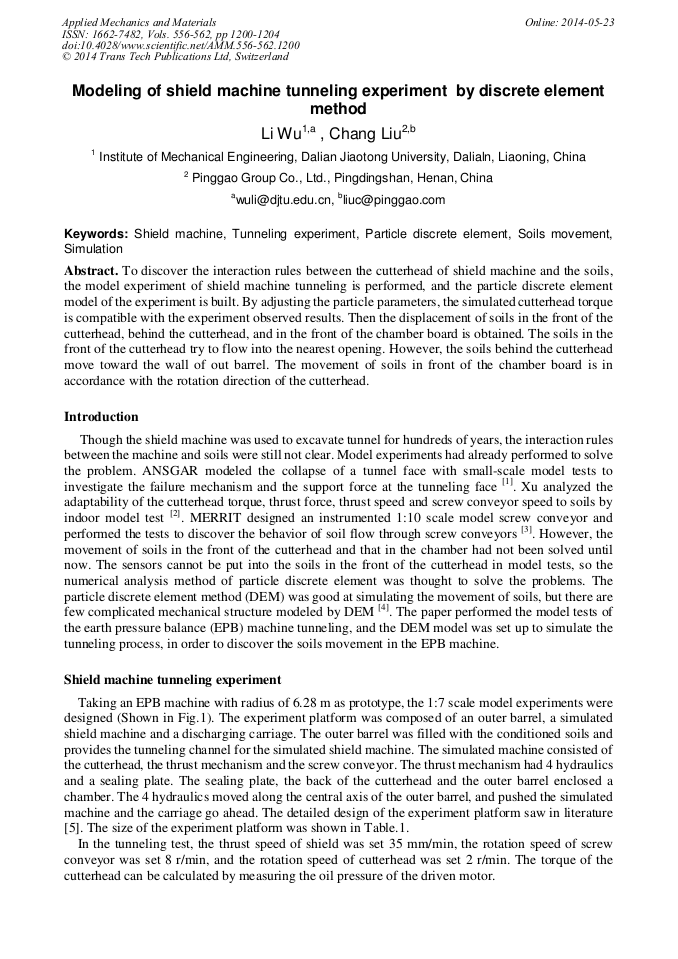

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 556-562)

Pages:

1200-1204

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.556-562.1200

Citation:

Cite this paper

Online since:

May 2014

Authors:

Li Wu*, Chang Liu

Keywords:

Particle Discrete Element, Shield Machine, Simulation, Soils Movement, Tunneling Experiment

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] ANSGAR K. Experimental investigation of the face stability of shallow tunnels in sand. Acta Geotechnica, Vol. 5(2010), p.43–62.

DOI: 10.1007/s11440-010-0110-7

Google Scholar

[2] Qianwei Xu. Study on the simulated model test of shield machine's working parameters applicable to different stratums and its theoretical investigation. Doctoral dissertation of Tongji University, Shanghai, China, (2006).

Google Scholar

[3] MERRIT A, MAIR RJ. Mechanics of tunnelling machine screw conveyor: model tests. Geotechnique, Vol. 56 (2006), pp.605-615.

DOI: 10.1680/geot.2006.56.9.605

Google Scholar

[4] Li Wu, Tianmin Guan, Lei Lei. Discrete element model for performance analysis of cutterhead excavation system of EPB machine. Tunnelling and Underground Space Technology, Vol. 37(2013), p.37–44.

DOI: 10.1016/j.tust.2013.03.003

Google Scholar

[5] Liu Chang, Sun Tiebing, Meng Qinglin, Yu Zhiyuan, Qu Fuzheng. Design of experimental table for simulating pressure field of working chamber of earth pressure balanced shield. China Mechanical Engineering, Vol. 1(2011), pp.19-22.

Google Scholar
