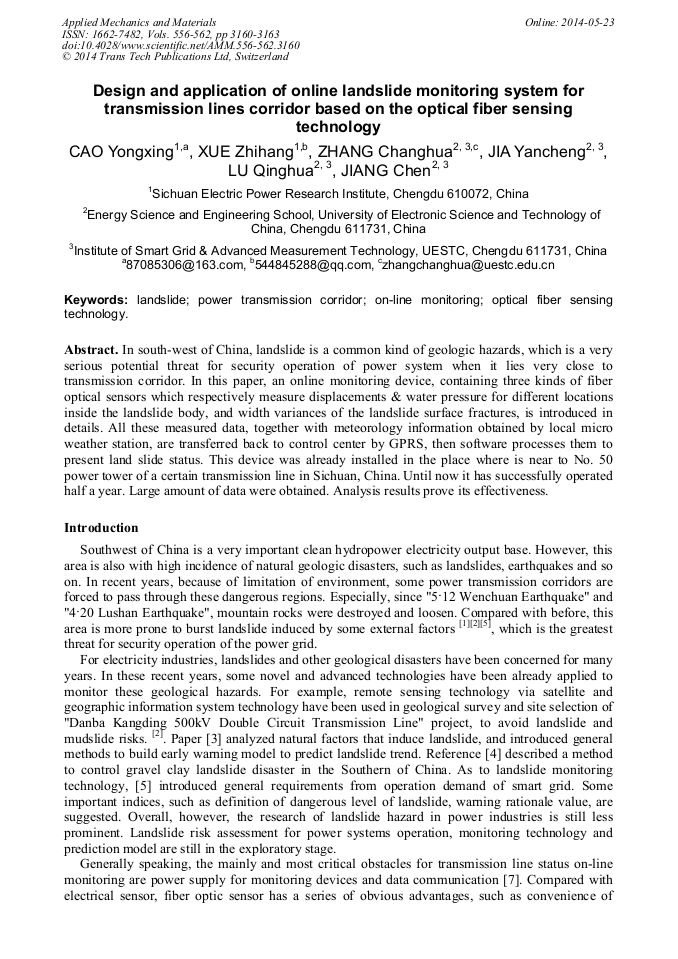

Design and Application of Online Landslide Monitoring System for Transmission Lines Corridor Based on the Optical Fiber Sensing Technology

Abstract:

In south-west of China, landslide is a common kind of geologic hazards, which is a very serious potential threat for security operation of power system when it lies very close to transmission corridor. In this paper, an online monitoring device, containing three kinds of fiber optical sensors which respectively measure displacements & water pressure for different locations inside the landslide body, and width variances of the landslide surface fractures, is introduced in details. All these measured data, together with meteorology information obtained by local micro weather station, are transferred back to control center by GPRS, then software processes them to present land slide status. This device was already installed in the place where is near to No. 50 power tower of a certain transmission line in Sichuan, China. Until now it has successfully operated half a year. Large amount of data were obtained. Analysis results prove its effectiveness.

• Periodical: Applied Mechanics and Materials (Volumes 556-562)
• Pages: 3160-3163
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.556-562.3160
• Online since: May 2014
• Authors: Yong Xing Cao*, Zhi Hang Xue, Chang Hua Zhang, Yan Cheng Jia, Qing Hua Lu, Chen Jiang
• Keywords: Landslide, On-Line Monitoring, Optical Fiber Sensing Technology, Power Transmission Corridor

References

[1] Wang Gongxian. Choice and optimization of landslide control plan[J]. Chinese Journal of Rock Mechanics and Engineering, 2006, S2: 3867-3873(in Chinese).

[2] Cao Yongxing, Chang Ming, Tang Chuan, Li Weile, Ma Guochao. Remote sensing survery and warning for geo-hazards in the Danba-Kangding transmission corridor [J]. Journal of Geological Hazards and Environment Preservation, 2013, 06: 8-15, (in Chinese).

[3] Yang Li, Luo Xueli, Wang Sen. Landslide and mud-rock flow hazards prediction and warning technology near power transmission corridor [J]. Yunnan Electric Power, 2013, 41(3): 75-77, (in Chinese).

[4] Xiao Hongwei, Huang Xing, Xiao Bing. Landslide characteristics of gravel containing cohesive soil side slops and its preventive measures [J]. Electric Power Construction, 2007, 28(10): 64-67, (in Chinese).

[5] Luo Lei, Tai Nengling, Hu Yan. Design and application of online monitoring system for landslide of transmission lines[J]. East China Electric Power, 2011, 07: 1097-1101, (in Chinese).

[6] Chen Lingjun. Fiber bragg grating sensing technology in landslide monitoring[D]. Yanshan University, (2010).

[7] Chen Haibo, Wang Cheng, Li Junfeng, et al. Application of on-line monitoring technologies for UHV AC transmission lines [J]. Power System Technology, 2009, 33(10): 55-58, (in Chinese).

[8] Ning Yan, Huang Qi, Zhang Changhua, Cao Yongxing. Research status of on-line ice coating & galloping monitoring technology of overhead transmission lines in China and abroad [J]. Sichuan Electric Power Technology, 2009, 32(6): 66-70, (in Chinese).
