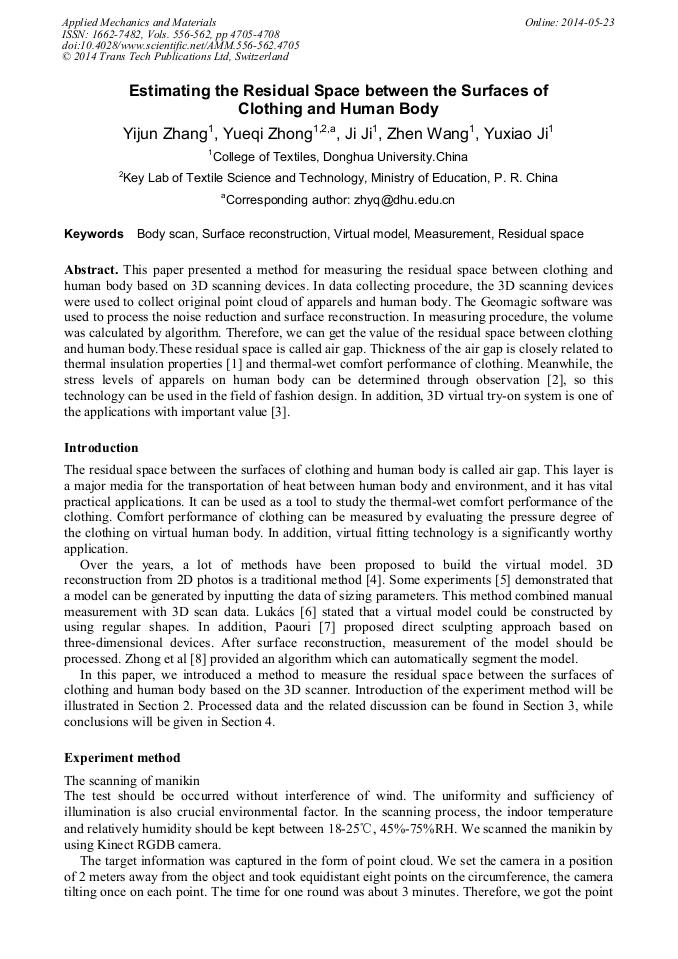

Estimating the Residual Space between the Surfaces of Clothing and Human Body

Abstract:

This paper presented a method for measuring the residual space between clothing and human body based on 3D scanning devices. In data collecting procedure, the 3D scanning devices were used to collect original point cloud of apparels and human body. The Geomagic software was used to process the noise reduction and surface reconstruction. In measuring procedure, the volume was calculated by algorithm. Therefore, we can get the value of the residual space between clothing and human body.These residual space is called air gap. Thickness of the air gap is closely related to thermal insulation properties [1] and thermal wet comfort performance of clothing. Meanwhile, the stress levels of apparels on human body can be determined through observation [2], so this technology can be used in the field of fashion design. In addition, 3D virtual try-on system is one of the applications with important value [3].

• Periodical: Applied Mechanics and Materials (Volumes 556-562)
• Pages: 4705-4708
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.556-562.4705
• Online since: May 2014
• Authors: Yi Jun Zhang, Yue Qi Zhong*, Ji Ji, Zhen Wang, Yu Xiao Ji
• Keywords: Body Scan, Measurement, Residual Space, Surface Reconstruction, Virtual Model

References

[1] Guowen Song. Clothing Air Gap Layers and Thermal Protective Performance in Single Layer Garment. Journal of Industrial Textiles2007, 36: 193.

DOI: 10.1177/1528083707069506

[2] Suzanne Loker, Susan Ashdown, and Katherine Schoenfelder. Size-specific Analysis of Body Scan Data to Improve Apparel Fit. Journal of Textile and Apparel, Technology and Management. Vol. 4, Issue 3, Spring (2005).

[3] Kayis B, Iskander PA. Three-dimensional human model for the IBM/CATIA system.

[4] WangJianyi and HaoHui. Summary of 3D clothing fitting system's human body modeling and system prospecting.

[5] HyewonSeo, Nadia Magnenat-Thalmann. An Automatic Modeling of Human Bodies from Sizing Parameters.

[6] Lukács G, Martin R, Marshall AD. Faithful Least-Squares Fitting of Spheres, Cylinders, Cones and Tori for Reliable Segmentation [C] / Proceeding of the ECCN. London, UK. Springer-Verlag, (1998), 671-686.

DOI: 10.1007/bfb0055697

[7] ArghyroPaouri, Nadia MagnenatThalmann, Daniel Thalmann. Creating Realistic Three-Dimensional Human Shape Characters for Computer-Generated Films.

DOI: 10.1007/978-4-431-66890-9_7

[8] YueqiZhong and Bugao Xu. Automatic Segmenting and Measurement on Scanned Human Body. International Journal Clothing Science and Technology (2006). 19-30.

DOI: 10.1108/09556220610637486
