Research and Implementation of a Synchronous-Exposed Method of Multiple CMOS Image Sensors

Abstract:

To the question of deficient precision of multiple CMOS image sensors exposed synchronously，a parameter-configured scheme is presented. With their serial interfaces, Micron’s 1/2 inch 3-megapixel CMOS digital image sensors are programmed and used. The parameter-configured scheme gets a synchronous precision in a time scale of microseconds. This precision is 29 times faster than that of the system design requirements. FPGA simulation and Signal TapII test results are demonstrated. Finally, the application result of the parameter-configured scheme is given.

You might also be interested in these eBooks

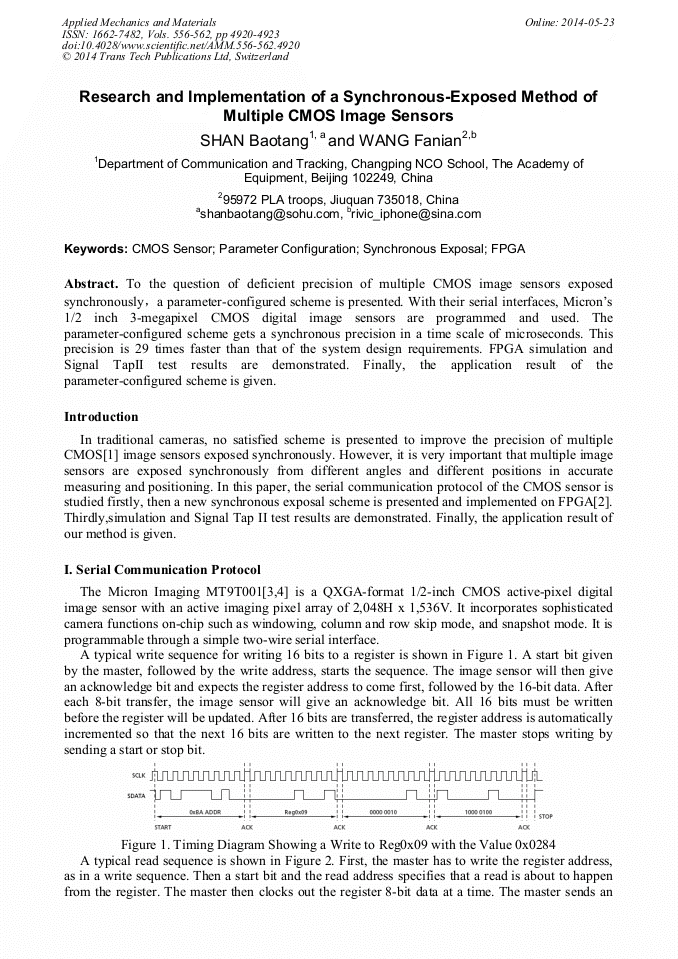

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 556-562)

Pages:

4920-4923

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.556-562.4920

Citation:

Cite this paper

Online since:

May 2014

Authors:

Bao Tang Shan*, Fa Nian Wang

Keywords:

CMOS Sensor, FPGA, Parameter Configuration, Synchronous Exposal

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] CMOS, 330MHz 10-Bit High Speed Video DAC ADV7123. http: /www. analog. com.

Google Scholar

[2] Stratix Device Handbook, Volume 1 , Volume 2, Volume 3. http: /www. altera. com.

Google Scholar

[3] 1/2-Inch 3-Megapixel CMOS Digital Image Sensor MT9T001STC. http: /www. micron. com.

Google Scholar

[4] Bayer B.; Color imaging array [P]. U. S. Patent No. 3 971 065. (1976).

Google Scholar

[5] Zou Yi; The Research and Realization On the Key Technology of Satellite Communication Channel Unit[D]. Doctoral Dissertation of Beijing Institute of Technology. 2002. 07.

Google Scholar

[6] Shan Baotang; The Research on the Key Technologies of the Multiple Channel CMOS Image Sampling System[D]. Doctoral Dissertation of Beijing Institute of Technology. 2008. 03.

Google Scholar
